KSR-F117-MU1603e

Austin Hughes

The Cyberview F117-MUIP1603e is a 1U Console drawer 17 inch LCD with Full HD (1920x1080) with touchpad. and an integrated MU-1603 is a 16-Port Matrix Multi-user Cat6 KVM Switch.  This matrix KVM switch features 3 consoles, 1 x local and 2 x remote.


The Cyberview F117-MUIP1603e is a 1U Console drawer 17 inch LCD with Full HD (1920x1080) with touchpad. and an integrated MU-1603 is a 16-Port Matrix Multi-user Cat6 KVM Switch.  This matrix KVM switch features 3 consoles, 1 x local and 2 x remote.

F117-MUIP1603e

Features & Benefits:

  • 1U 17" widescreen LCD console drawer
  • Support Full HD with 1080p resolution / 16.7M colors ( 8-bit )
  • New enhanced aesthetics with molded front handle
  • Short depth design of 460mm ( 18.1" ) only
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • 2 post rack mounting available
  • 2 x USB 2.0 port sharing USB peripheral for computers
  • Support resolution up to 1920 x 1080
  • Mix USB & SUN with Multi-Platform switch capability
  • Multi-lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • UL, cUL, CE, FCC, & CCC Certified

    Optional Configurations (Contact us for availability)
  • Front USB hub port for device access
  • HDMI 1.3 video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio input & output
  • MAC or SUN Micro keyboard options available
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple Integrated KVM Switch Options
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Additional languages supported
  • Touchscreen: Resistive 1-pt, Projective 10-pt



MU-1603 Features & Benefits

  • Efficient system management with simultaneous multi-user access
  • Capable of connecting 16 servers per device in 1U
  • Support HDMI, DisplayPort, DVI, VGA-USB and VGA-PS/2 server interface
  • Increased distance of 132ft (40m) between your server and KVM switch
  • Enhanced Cat6 cable management with remote access over 1000ft (300m)
  • Provides a diversity of consoles to access servers independently and simultaneously
  • Use of the RJ45 Cat6 interface allows for a higher number of ports in smaller density
  • Greater distances between your switch and servers allow enhanced data center rack layouts
  • Multi-lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations



F117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 18.1 in.
(44 x 442 x 460 mm.)
*Some options extend chassis depth to 18.9 in. ( 480 mm. )
Console w/ KVM 1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM
5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console 23.8 lbs. (10.8 kg)
Console w/ KVM 25.5 lbs. (11.6 kg)
Gross Weight
Single Console 34.8 lbs. (15.8 kg)
Console w/ KVM 38.5 lbs. (17.5 kg)
Mounting Distance
Single Console 18.5 ~ 27.6 inch
(470 ~ 700 mm)
Console w/ KVM 18.5 ~ 31.5 inch
(470 ~ 800 mm)
Console Ports
Video Input VGA + DVI-D single link
Video Option HDMI 1.3 / HDCP 1.1
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal ) 17.3"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 400
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 600 : 1
Viewing angle ( L/R/U/D ) 80/80/60/80
Viewing angle (H x V) 160° x 140°
Response time ( ms ) 40
Dot pitch ( mm ) 0.1989
Display area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 50,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC, CE & CCC certified
Safety UL, cUL, CE / LVD & CCC certified
Environment RoHS2 & REACH compliant

The F117 series is also known as the F-117. The F117e comes with an integrated touchpad, while the F117b comes with an integrated trackball.



MU-1603 Specifications

Mechanical
Height 1.73 in. (44 mm.)
Width 17.4 in. (443 mm.)
Depth 6.7 in. (171 mm.)
Weight 6.5 lbs. (3 kg.)
Environmental
Operating/Storage Temperature 0 to 55°C / -20 to 60°C
Relative Humidity 20-90%, non-condensing
Shock 10G acceleration (11ms duration)
Vibration 5~500Hz / 1G RMS random vibration
Power 100~240VAC, 50/60Hz 0.5A via AC / DC cord
KVM
Ports 16 x RJ45 connector
KVM Dongle DVI-D / VGA connector dongle up to 132 ft. Cat6/Cat5 cable

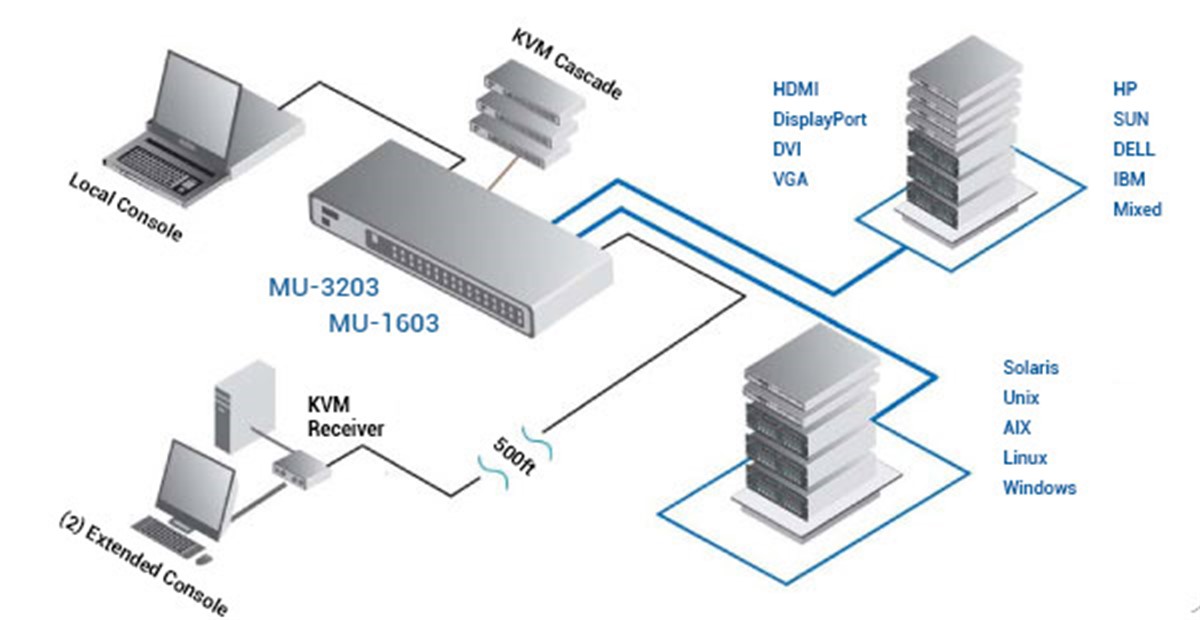

Simultaneous Console Access
Local 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB to KB & MS

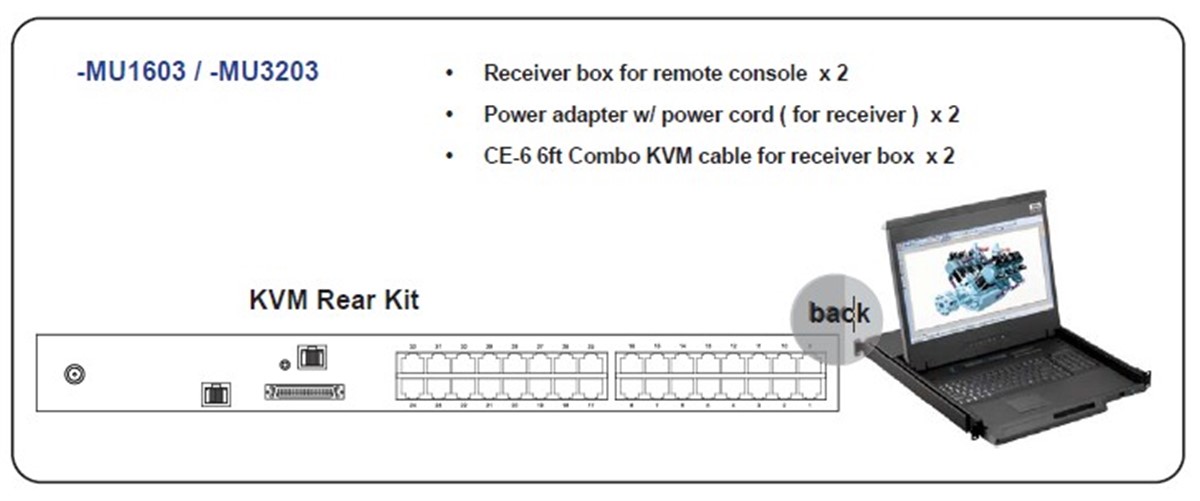

Remote (2) 2 x RJ45, up to 1000 ft. Cat6 cable
Remote Receiver (2) 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS
1 x KVM port for connecting to an extra PC
Expansion Support mixed DB-15 or RJ45 Matrix KVM, up to 256 servers
Compatibility
Hardware Mix PCs, SUNs, MACs, IBMs, HPs, DELLs servers
Operating Systems Windows Vista / 2003 / XP / 2000, Linux, Unix, Mac OS
Regulatory Approval cUL, FCC, CE, RoHS2, REACH

MU-1603 is also known as:
