KSR-F1417e-DVI

Austin Hughes

CyberView F1417 is a Ultra Short Depth 1U 17" 1080P Rack Mount Monitor Drawer. RKP14 Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD

The new CyberView F1417 is a Ultra Short Depth 1U 17" 1080P Rack Mount Monitor Drawer. RKP14 Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

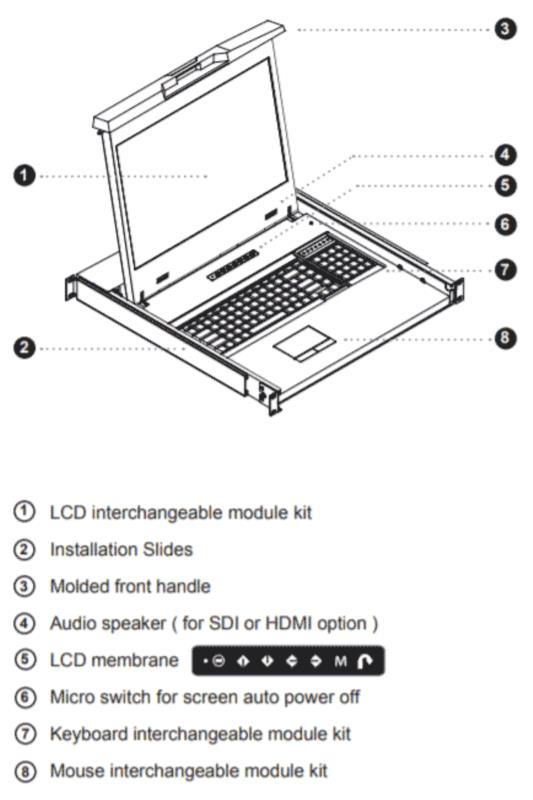

F1417 Features and Benefits

  • 1U 17" LCD console drawer
  • 1920 x 1080 native resolution / 16.7M colors ( 8-bit )
  • DVI-D + VGA video input / USB KB / MS

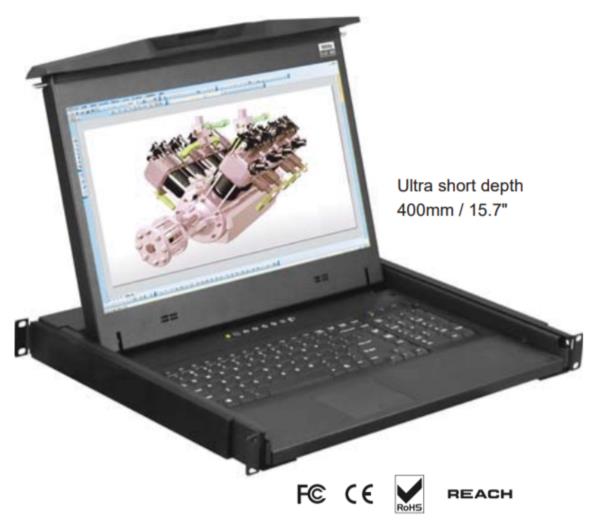

  • Ultra Short depth design of 400mm (15.7 in.)
  • Ideal for open rack / short depth rack
  • 104-key keyboard with either touchpad or trackball options
  • One Man installation design
  • Enhanced aesthetics with new molded front panel and 2-point lock
  • 6ft combo cable included
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more



Optional Configurations (Contact us for availability)

  • HDMI 1.3 (HDCP 1.1) video input
  • 3G / HD / SD-SDI Broadcast-grade input
  • DC Power: 12, 24, 48, 110-125 V DC
  • Multiple integrated KVM Switch options
  • MAC or SUN Micro keyboard options available
  • 2-post rack mounting brackets ( ORB-2.1 )
  • Touchscreen: Resistive 1-pt, Projective 10-pt



Cyberview F1417 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 15.7 in.
(44 x 442 x 400 mm.)
Console w/ KVM 1.73 x 17.4 x 18.1 in.
(44 x 442 x 460 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.2 x 24.5 in.
(140 x 590 x 622 mm.)
Net Weight
Single Console 18.9 lbs. (8.6 kg)
Console w/ KVM 20.7 lbs. (9.4 kg)
Gross Weight
Single Console 29.9 lbs. (13.6 kg)
Console w/ KVM 33.7 lbs. (15.3 kg)
Mounting Distance
Single Console 16.1 ~ 25.2 inch
(410 ~ 640 mm)
Console w/ KVM 16.1 ~ 26.8 inch
(410 ~ 680 mm)
Console Ports
Video Input VGA + DVI-D single link
Video Option HDMI 1.3 / HDCP 1.1
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable : CB-6 Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
DVI-D console 6ft cable : CX-6 Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal ) 17.3"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 400
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 600 : 1
Viewing angle ( L/R/U/D 80/80/60/80
Response time ( ms ) 40
Dot pitch ( mm ) 0.1989
Display area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 50,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 29W / Max. 38W
Power saving mode Max. 9W / Max. 18W
Power button on Max. 2W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
