KSR-K123e-HDMI

Austin Hughes

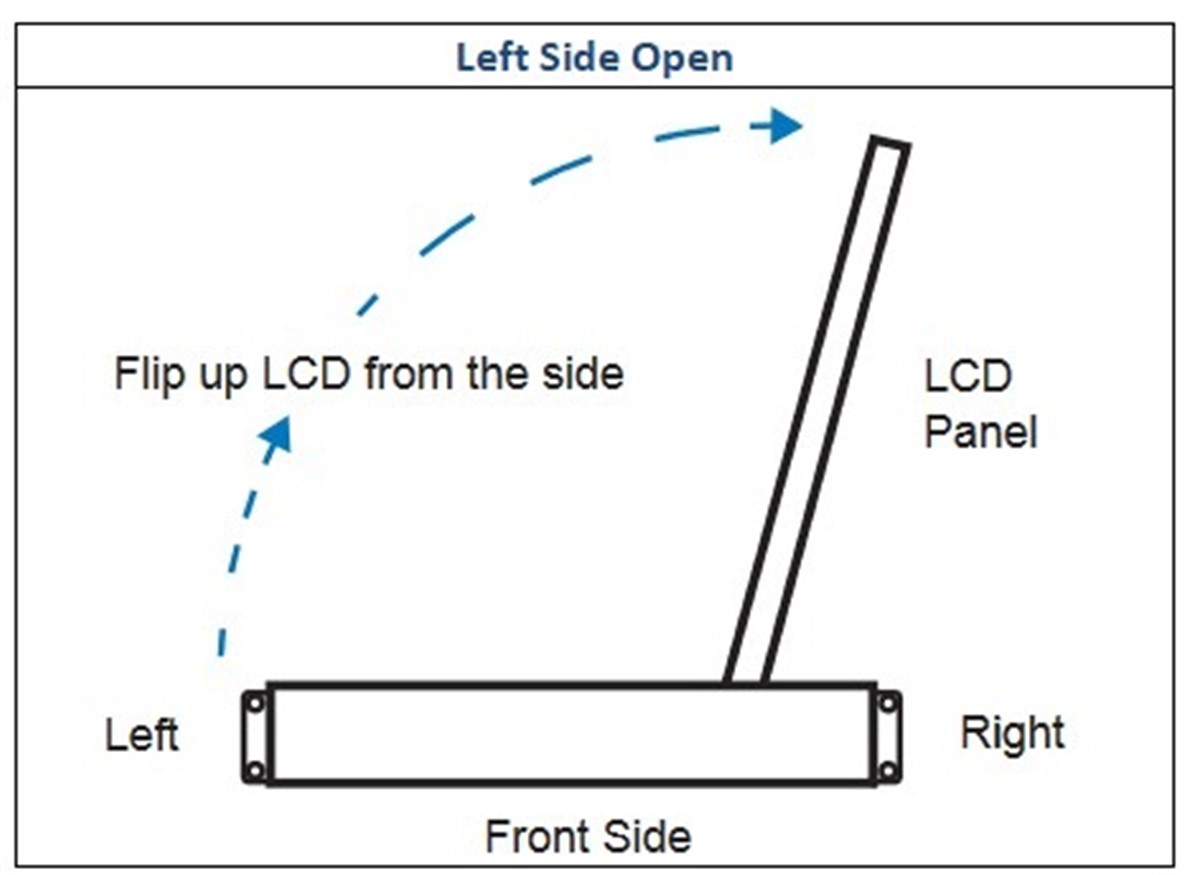

Austin Hughes 23" HDMI Rack Console with USB connections in 1U 19" Rack with Audio support. Resolution support of 1920x1080, 1920x1200 & 3840x2160 (4K).  Left side opening



Austin Hughes 23" HDMI Rack Console with USB connections in 1U 19" Rack with Audio support. Resolution support of 1920x1080, 1920x1200 & 3840x2160 (4K).  Left side opening



The newest CyberView K123 4K Rackmount LCD monitor series easily adds side access to your rack environment. With the choice between a left facing monitor or a right facing monitor, as well as the ability to combine this powerful console drawer with an integrated KVM, the CyberView K123 series is sure to handle critical needs in datacenters or limited space server rooms and IT closets. In instances where a rack side is placed against a wall, the K123 allows the user to be positioned facing the wall comfortably rather than snugged up against it.



K123 Features and Benefits

  • 1U 23" 4K LED LCD console drawer
  • 3840 x 2160 native resolution / 1.07B colors ( 10-bit )
  • 1920 x 1080 & 1920 x 1200 resolution support
  • HDMI port 1.2 video input / USB KB / MS
  • 104-key keyboard with either touchpad or trackball options
  • Built-in dual stereo speakers
  • Enhanced aesthetics with new molded front panel and 2-point lock
  • 6ft combo cable included
  • Modular for a highly customizable rack console - integrated KVM, peripherals & more
  • Combo interface for PS/2 or USB input

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 25.6 in.
(44 x 442 x 740 mm.)
Console w/ KVM 1.73 x 17.4 x 29.5 in.
(44 x 442 x 750 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.4 x 35.8 in.
(140 x 595 x 910 mm.)
Net Weight
Single Console 33.7 lbs. (15.3 kg)
Console w/ KVM 35.4 lbs. (16.1 kg)
Gross Weight
Single Console 42.9 lbs. (19.5 kg)
Console w/ KVM 48.4 lbs. (22 kg)
Mounting Distance
Single Console 26 ~ 35 inch
(660 ~ 890 mm )
Console w/ KVM 26 ~ 38.2 inch
(660 ~ 970 mm )
Console Ports
Video Input HDMI 2.0 Port  ( No HDMI Cable supplied)
KB / MS USB type B
DP console 6ft cable : CP-6 Drawer end : DP + USB type B ( KB / MS )
Server end : DP + USB type A
LCD Screen
LCD panel size ( diagonal ) 23.8"
Backlight type LED
Native resolution 3840 x 2160
Brightness (cd/m2) 310
Colors 1.07 Billion, 10-bit
Contrast Ratio (typ) 1000 : 1
Viewing angle ( L/R/U/D 89/89/89/89
Response time ( ms ) 25
Dot pitch ( mm ) 0.13725
Display area ( mm ) 527.04H x 296.46V
Surface treatment Anti-glare
Surface hardness 3H
MTBF (hrs) 30,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 45W / Max. 54W
Power saving mode Max. 9W / Max. 18W
Power button on Max. 2W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
