UltraView AP-20 DVI/VGA (1600 x 1200) Aluminum 20" LCD CCFL Display with NEMA 4 / IP65 Protection

NAP-20-24VDC

Austin Hughes

The UltraView 20″ is a 20″ high-quality LED monitor with support for Widescreen ( 1600 x 1200 ) resolution. 20″ offers versatile options to fit into any application! CCFL Display with NEMA 4 / IP65 Protection, DVI/VGA with 24VDC

Description
Specification
Downloads
Videos

The UltraView 20″ is a 20″ high-quality LED monitor with support for Widescreen ( 1600 x 1200 ) resolution. 20″ offers versatile options to fit into any application!

Aluminum 20" LCD CCFL Display with NEMA 4 / IP65 Protection

Display Features & Benefits
20" LCD with resolution 1600 x 1200
Panel-mount, VESA mount
6mm (.24 in) aluminum front bezel with protective glass & water proof sealed gasket
Rugged construction against external impact
Standard with DVI-D, VGA

Power 24VDC

UltraView NAP-20 Specifications

Mechanical
Height	15.4 in. (39.2 cm.)
Width	20.2 in. (51.3 cm.)
Depth	2.8 in. (7.2 cm.)
Weight	15.4 lbs. (7.0 kg.)
Package Dimensions (HxDxW)	25.6 x 4.9 x 23.5 inch (651 x 124 x 597 mm)
Package Weight	19.8 lbs. (9.0 kg.)
Environmental
Operating Temperature	0 to 55°C Degree
Storage Temperature	-5 to 60°C Degree
Relative Humidity	5~90%, non-condensing
Shock	10G acceleration (11ms duration)
Vibration	5~500Hz 1G RMS random vibration
Power	Auto-sensing 100 to 240VAC, 50 / 60Hz
LCD Panel
Display Size	20.1" TFT
Resolution	1600 x 1200
Brightness (cd/m2)	300
Colors	16.7 M
Contrast Ratio (typ)	800:1
Viewing angle (H/V)	178° x 178°
Active area (mm)	408 x 306

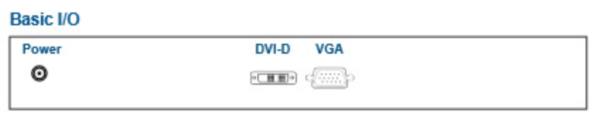

Signal Input	VGA, DVI-D
