I-USB2-2301-AU

Icron

The USB 2.0 Ranger® 2301 extends high-speed USB 2.0 connections up to 100m using CAT 5e/6/7 cabling. This 1-port USB 2.0 extender with ExtremeUSB® is perfect for: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, USB 2.0 web cameras and any other USB 2.0 or 1.1 device.


The USB 2.0 Ranger® 2301 allows users to extend USB 2.0/1.1 connections up to 330 ft (100m) over a single CAT 5e/6/7 cable.

This 1-port USB 2.0 extender supports data rates at up to 480 Mbps and is plug and play – no software drivers required – for all major operating systems: Windows®, macOSTM, and Linux®

Additionally, this ExtremeUSB® based 1-port USB 2.0 extender system is FCC/CE Class B certified and ideal for use with all USB peripherals including: keyboards, mice, interactive white boards, flash drives, hard drives, audio devices, web cameras and any other USB 2.0 or 1.1 device.

Features

  • 1-port USB 2.0 extender supporting all USB 2.0/1.1 devices up to 480 Mbps
  • Supplies up to 1 Amp to USB port
  • Mass Storage Acceleration for USB 2.0 device bulk transfers
  • Metal enclosures with FCC/CE Class B certification
  • Two year warranty
  • ExtremeUSB® suite of features:
    • Transparent USB extension
    • True plug and play; no software drivers required
    • Works with all major operating systems:  Windows®, macOSTM, and Linux®



In the Box

The USB 2.0 Ranger 2301 extender system includes:

  • Local Extender (LEX)
  • Remote Extender (REX)
  • 2 meter USB cable
  • Quick Start Guide
  • International power adapter with country specific cord (North America, EU, UK, Australia/NZ, or Japan)
  • Two year warranty



Applications



RANGE

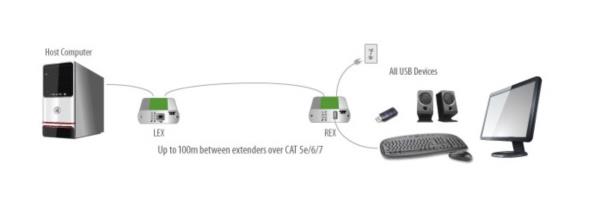

  • Direct connect up to 100m (330 ft) over CAT 5e/6/7

SPEEDS

  • USB 2.0: up to 480 Mbps
  • USB 1.1: up to 12 Mbps

LEX (Local Extender)

  • USB Connector: 1 x USB Type B Receptacle
  • Link Connector: 1 x RJ45
  • Dimensions: 86.0mm x 75.0mm x 26.0mm (3.4″ x 3.0″ x 1.0″)
  • Mounting: Slots for cable ties or optional mounting kit available
  • Enclosure Material: Silver anodized aluminium

REX (Remote Extender)

  • USB Connector: 1 x USB Type A Receptacle
  • Link Connector: 1 x RJ45
  • Available Current: up to 1 Amp to USB port
  • Power Supply: 100-240V AC Input, 5V 3A DC Output
  • Dimensions: 86.0mm x 75.0mm x 26.0mm (3.4″ x 3.0″ x 1.0″)
  • Mounting: Slots for cable ties or optional mounting kit available
  • Enclosure Material: Silver anodized aluminium

ENVIRONMENTAL

  • Operating Temperature: 0C to 50C (32F to 122F)
  • Storage Temperature: -20C to 70C (-4F to 158F)
  • Operating Humidity: 20% to 80% relative humidity, non-condensing
  • Storage Humidity: 10% to 90% relative humidity, non-condensing

COMPLIANCE

  • EMC: FCC (Class B), CE (Class B)
  • Environmental: RoHS2, REACH, Conflict Minerals

SUPPORT

  • Warranty: 2-year
