ALDV100R-AUS

Adder

The ADDERLink ALDV100R HDMI Receiver is part of an Line powered HDMI digital video extender that can transmit an HD video stream with audio over a single CATx cable. Can be used with ALDV104T, ALDV100P

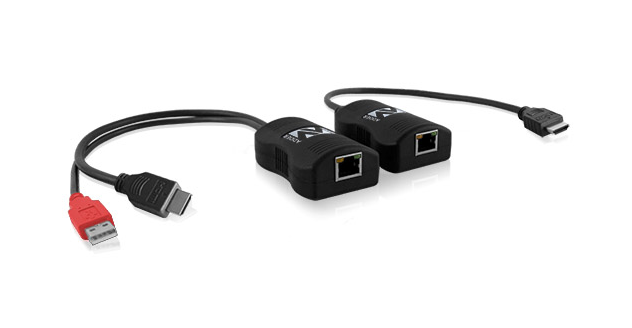

ADDERLink DV100 is an easy to install, highly compact video extender system that can transmit an HD video stream with audio over a single CATx cable. This enables you to locate your media playback hardware in a secure and temperature controlled environment. Thus your valuable systems are kept safely away from the display point environment whilst maintaining precisely the same user experience.

ADDERLink DV100 is ideally suited to the Digital Signage (DOOH - Digital Out-Of-Home) and Audio Visual (AV) industries.

Pixel perfect digital video

ALDV100 uses an uncompressed communication system whereby the pixels of every frame are sent without loss. Resolutions up to 1920x1200 @60Hz (WUXGA) are supported. Additionally, the High-bandwidth Digital Content Protection (HDCP) of the HDMI standard is supported.

Up to 50 meters over a single CATx cable

Video, audio and power all pass along a single cable, providing a maximum of 50 meters extension. The actual achievable extension distance is dependent upon the CATx cable type used and the number of connection breaks for patch panels and wall plates. Please see the table on reverse for details.

Highly energy efficient - No external power supplies are required

The AdderLink DV100 is designed to be highly power efficient, using less than an eighth of the power required by some competing systems. By harvesting power from a standard USB socket, no external PSUs are needed and hence the support infrastructure required is kept to an absolute minimum.

Digital audio

Supports eight channels of HDMI audio. Mix-n-match The whole AdderLink DV family of extenders share a common advantage of cross connection. The HDMI transmitters (ALDV100T) of the family can seamlessly be connected to the DVI-D receivers (ALDV120R) and vice versa.

EDID management

The system has intelligent EDID management to allow the true characteristics of the display to be passed back to the computer.

Plug and Play

AdderLink DV100 extenders are delivered in a zero confi g state so you can connect their two units and start working with them straight away. There’s no need for drivers or software to be installed.

Built to last

Adder Technology have a well-earned reputation for creating products that perform well and stay the course. AdderLink DV100 is no exception and features tough, yet lightweight ABS enclosures to ensure they can easily withstand everyday treatment. The internal components and external connectors too are selected for their reliability in addition to their performance characteristics.

Hardware compatibility

All computers with HDMI connections

HDMI interface

The system supports resolutions such as 480p, 720p, 1080P or WUXGA (1920x1200) @60Hz* and 24 bit color depth.

* with reduced blanking

Software compatibility

All known operating systems

Audio

The system delivers eight channels of HDMI audio with sample sizes of 16, 20 or 24 bit at 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, or 192kHz.

Computer connections at transmitter (TX)

HDMI type A male, USB type A (for power only)

Display connections at receiver (RX)

HDMI type A male

Physical design

Injection moulded ABS cases:

45mm / 1.8’’ (w) x 63mm / 2.5’’(d) x 21mm / 0.8’’(h) with 30cm / 12" pigtails. Weight 250g / 0.6 lb per pair.

Power

USB powered, 5VDC -2.5W for both RX and TX units combined.

Operating temperature

0 to 40ºC / 32 to 104ºF

Approvals

CE, FCC
