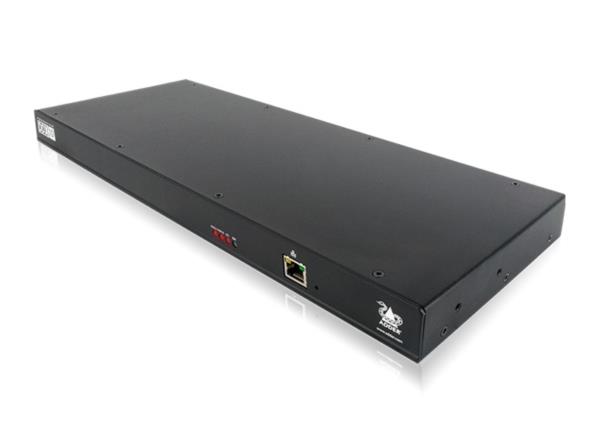

Adder DDX 10 is a flexible 10-port KVM matrix switch for DVI/DisplayPort/VGA, USB and audio. Combined with the DDX CAM and DDX USR, the DDX10 forms the basis a KVM Matrix Switch.
The AdderView DDX10 is a new breed of high performance KVM Matrix that provides powerful functionality inside a small, compact form factor. Featuring Adder’s trusted lossless KVM extension technology with flexi-port switching capability, the DDX enables multiple users to access multiple computers located safely and securely inside your server room.
Shielded CATX Cable to be used, as system relies on the shield as a common ground reference. 10 configurable user/computer portsMulti-view thumbnail on-screen displayLossless HD video in real-timeExtension distance of up to 50m from switch to user consoleUSB for Keyboard, Mouse & Touchscreen‘Zero U’ DVI, VGA and DisplayPort Computer Access Modules (CAMs)
10 port KVM Matrix

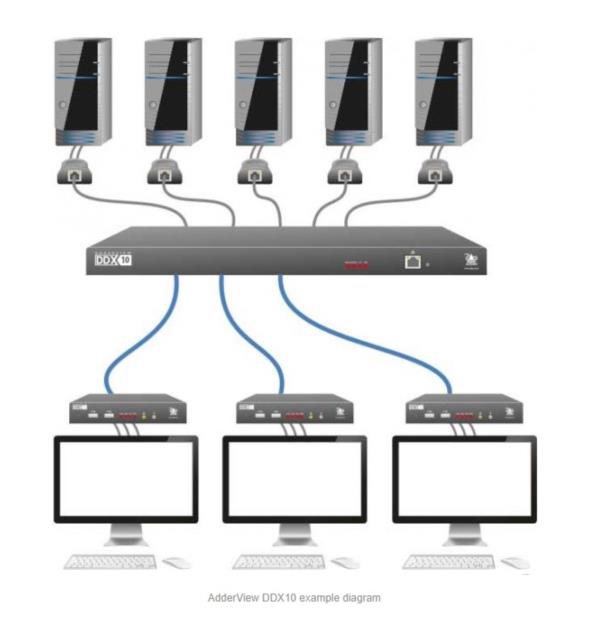

AdderView DDX10 is a flexible 10 port KVM Matrix which can be re-configured to match your requirements. Each port can be configured as a computer input or user output. Once configured, simply connect your Computer Access Modules (DDX CAM) and User stations (DDX USR).
High density KVM Matrix
The DDX range features ‘zero U’ computer access modules and a high density 1U KVM Matrix switch, ideal for installation in heavily populated server racks for small and medium sized applications.
Lossless HD video support
The DDX10 delivers lossless HD video at resolutions of up to 1920x1200 @60Hz providing a real-time, ‘at the PC’ experience. Frame rate matching makes this product ideal for applications using non standard refresh rates.
Optimal USB technology
DDX10 emulates a fully featured keyboard, mouse and touchscreen* to all computers, maintaining fast switching speeds and instant USB interaction. * Touchscreens need to be Windows 8 compliant.

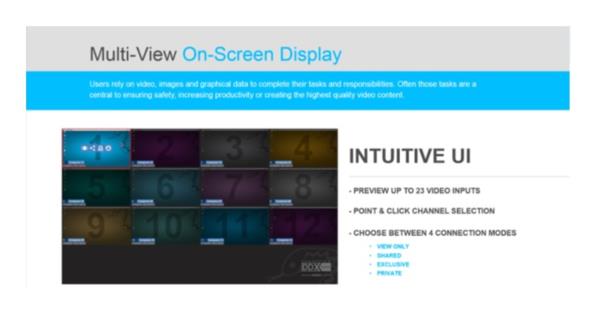

Multi-view on-screen thumbnail display for computer selection
The unique multi-view OSD provides users with a live preview of permitted computers direct on their screen. Users can highlight their selection using a mouse cursor. Once highlighted, the user has the ability to choose from 4 different connection modes.
Access permissions
Each user station can be granted different access permissions on a per computer basis. Once computer access is permitted, administrators can select which levels of control will be available, allowing users to choose between View only, Shared, Exclusive or Private connection modes.
Exclusive and private connection modes
The DDX10 enables users to work safely and securely with a choice of connection modes. In Exclusive mode, users have full KVM control while being able to share video content with other colleagues. By connecting in Private mode, users can work in privacy.
Multi-head video support
DDX10 transmitters & receivers can be grouped to form ‘Computers’ and ‘Consoles’ that support dual-head & quad-head connectivity.

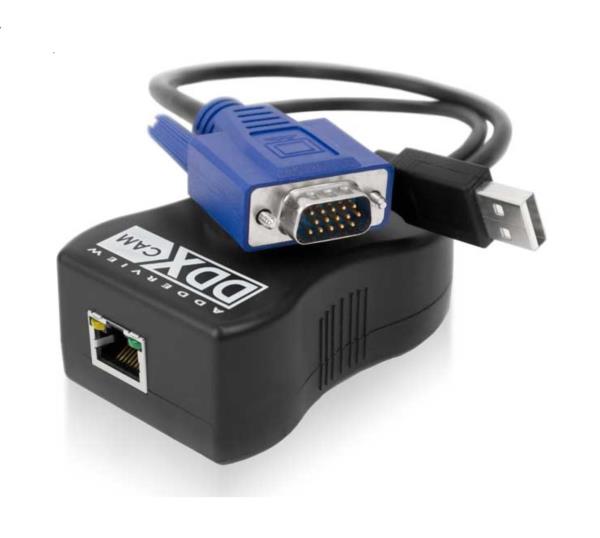

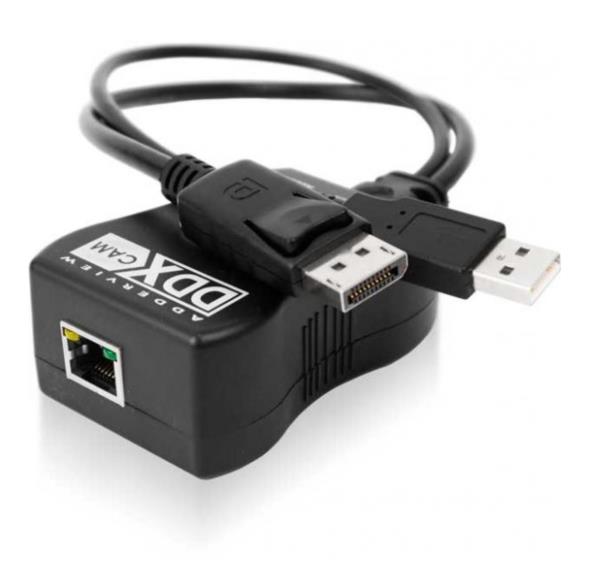

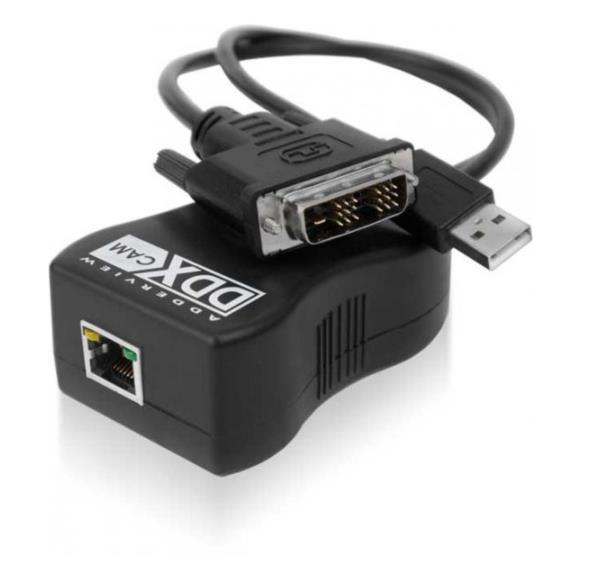

‘Zero U’ Computer Access Modules (CAMs)
Powered by USB, the digital computer access modules sit in-line and are ideal for racks with limited space. Modules are available in DVI, VGA and DisplayPort options.
Secure web control interface
System administrators can securely access the DDX10 management tools to configure system settings, set access privileges and control video connections. The interface is secured using HTTPS & administrators must login each time they connect. An API enables switch control from a 3rd party control system.
