The ADDERLink™ XD641 is a high performance KVMA (Keyboard, Video, Mouse and Audio) Tx/Rx extender that is designed to provide reliable and real-time access to critical computers – regardless of the location, whilst maintaining the same user desktop experience.
Developed for enterprise organizations and high-pressure control rooms, it combines the simplicity of true plug and play and high performance 4K KVM extension; resulting in superior functionality and flexibility in a cost-effective, reliable and straightforward solution.

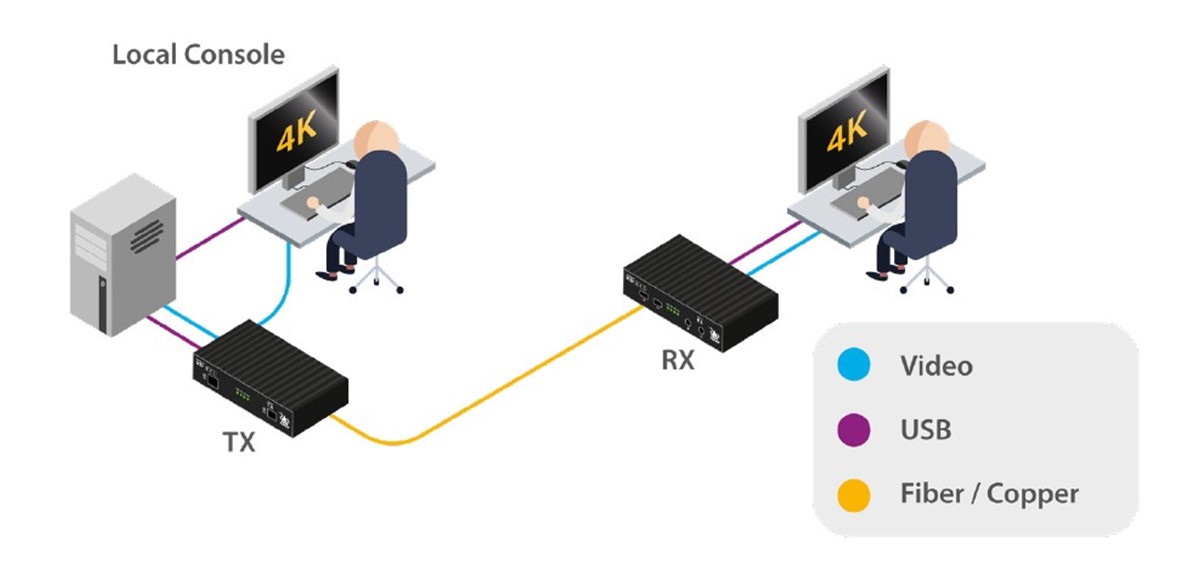

Part of the XD600 Series of Display Port Extenders providing:
•Single head 4K60 video, USB2.0 (HID) and audio are transmitted on a single CATx or fiber cable.
•Purpose-built, point-topoint KVM extender.
•Flexibility between copper and fiber connectivity.
Fiber CATx
Single head at 4K maximum Single head at 4K maximum
Distances up to 4km Distances up to 100m
Product Features
High-resolution video, real-time control
The system supports resolutions up to 4096x2160 @ 60Hz using 8 bits per color and 4:4:4 chroma sampling. A local pass-through video port is provided at the transmitter (TX).
Single cable
High-speed video, HID (human interface device) USB2.0 and audio are transmitted on a single CATx or fiber cable.
Up to 4km/2.5 mile extension distances
The ADDERLink XD641 supports both copper and fiber interfaces. It provides a range of up to 100m over a CAT6 cable link, and up to 4km over an optical fiber link.
Emulated USB2.0
Enables connection of any full and low speed USB HID from mouse and keyboards through to graphics tablets and joysticks.
EDID management
The system has intelligent EDID management to allow the true characteristics of the monitor to be passed back to the computer.
Plug and play
The ADDERLink XD641 extender is delivered in a zero config. state so it works, without the need for drivers or software, as soon as it is connected.
Digital audio
Video: Encapsulates up to eight channels of 24-bit, 192kHz sampled "Pulse-code modulation" (PCM) uncompressed audio integrated with the video signal.
USB: Up to two channels of 24-bit, 96kHz sampled PCM audio. HD quality analog audio HD audio quality (stereo audio, 24-bit sampled at 96kHz) is available for line in/out, microphone and headphone/speakers. Serial communications RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.
HD quality analog audio
HD audio quality (stereo audio, 24-bit sampled at 96kHz) is available for line in/out, microphone and headphone/speakers.
Serial communications
RS232 can be passed between the units to a maximum baud rate 115K2 with RTS/CTS flow control.
Video resolutions
The system supports resolutions up to 4096x2160 @ 60Hz
Software compatibility
All known operating systems. No drivers required.
Connections

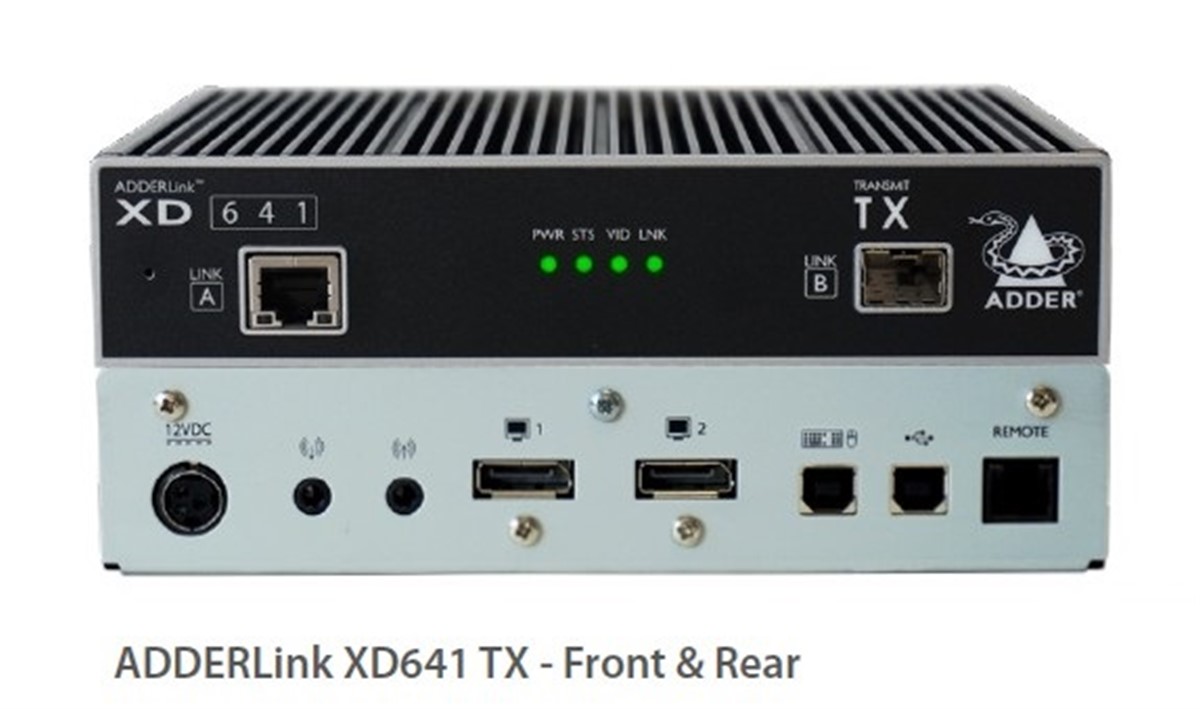

Local unit - Transmitter (TX)
4 x Tri-color status LEDs
DisplayPort™ in and local pass-through out
2 x USB2.0 Type B
Line in and out analog audio
RJ12 serial port
RJ45 and SFP+ ports

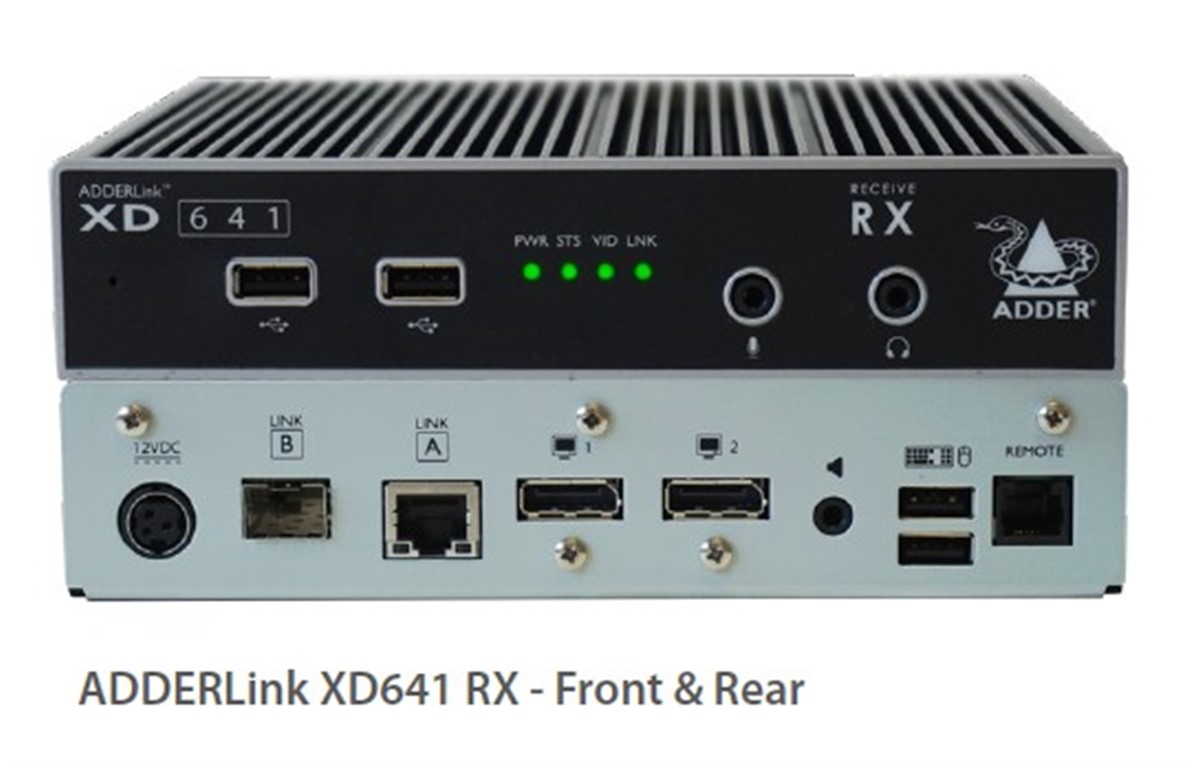

Remote unit - Receiver (RX)
4 x Tri-color status LEDs
2 x DisplayPort™ out (second port is a duplicate)
4 x USB2.0 full speed Type A
Mic in, headset and speaker out
RJ12 serial port
RJ45 and SFP ports
Physical Design
Robust metal construction
TX and RX: 186mm/7.32" (w), 39mm/1.54" (h), 148mm/5.83" (d)
TX: 1.29kg/2.84lbs•RX: 1.24kg/2.73lbs
Power supply
100-240 VAC, 47/63Hz
12 VDC 18W output from power supply unit
Operating temperature
0ºC to 40ºC/32ºF to 104ºF
Storage temperature
-10ºC to 50ºC/14ºF to 122ºF
Humidity
0% to 80% (non-condensing)
Approvals
CE, FCC
Extension Distance
Cat6 100m
Cat5e 50m
SM FIbre 4Km
MM Fibre 300m
ADDERLink™ XD600 Extension Distance
Note:
SM (Single-Mode Fiber)
MM (Multi-Mode Fiber)
CAT6 is recommended for CATx extensions. CATx extensions are limited to 2 patch connections. Patch cables should be CAT6 or better.
