KSR-F117-1201De

Austin Hughes

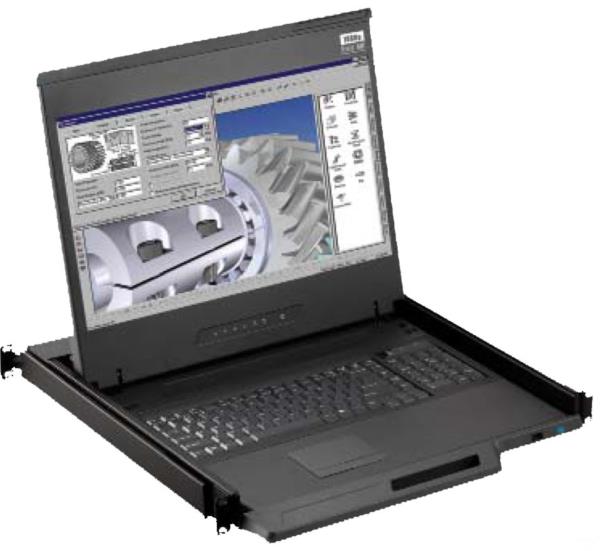

Cyberview F117-1201De 1U 17" Ultra High Resolution 1080p 1920 x1080 DVI Rackmount Monitor Keyboard Drawer with 12 Port DVI KVM Switch is a combination of Keyboard, DVI-D Single link Video and touchpad Mouse (KVM) in 1U Rack drawer.

Cyberview F117-1201De 1U 17" Ultra High Resolution 1080p 1920 x1080 DVI Rackmount Monitor Keyboard Drawer with 12 Port DVI KVM Switch is a combination of Keyboard, DVI-D Single link Video and touchpad Mouse (KVM) in 1U Rack drawer.

This DVI Rackmount LCD keyboard  offers users the flexibility to access multiple Servers from one or multiple locations.

  • Cyberview F117-1201De 1U 17" Widescreen LCD console drawer with DVI-D input and 12 Port DVI KVM Switch with Audio
  • Qty 6 DVI USB KVM Switch Cables included. Related cables are at the bottom of the page
  • 1920 x 1080 native Ultra High resolution
  • Support Full HD with 1080p resolution
  • Support Windows 7 / Vista / XP / Linux / Mac OS X
  • 104-key keyboard with either touchpad or trackball
  • Enhanced aesthetics with new molded front handle



Proprietary DVI KVM switch Cables

  • KVM CI-6  (1.8mt)
  • KVM CI-15 (4.5mt)
Austin Hughes CyberView F117 with DVI-D KVM
DVI-D KVM		 Local User Extended IP 12-Port
1 0 0 F117-1201D

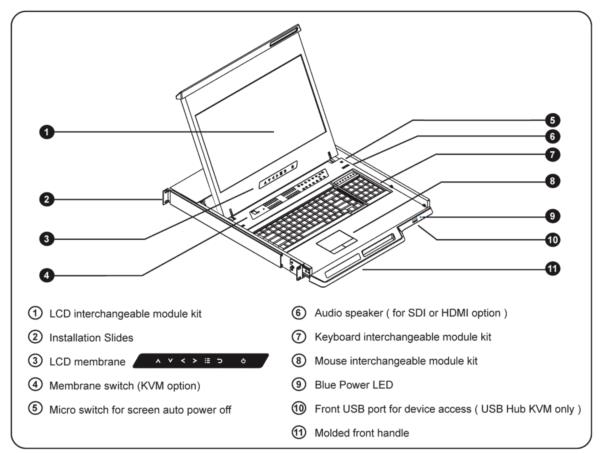

F117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 18.1 in.
(44 x 442 x 460 mm.)
*Some options extend chassis depth to 18.9 in. ( 480 mm. )
Console w/ KVM 1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console 23.8 lbs. (10.8 kg)
Console w/ KVM 25.5 lbs. (11.6 kg)
Gross Weight
Single Console 34.8 lbs. (15.8 kg)
Console w/ KVM 38.5 lbs. (17.5 kg)
Mounting Distance
Single Console 18.5 ~ 27.6 inch
(470 ~ 700 mm)
Console w/ KVM 18.5 ~ 31.5 inch
(470 ~ 800 mm)
Console Ports
Video Input VGA + DVI-D single link
Video Option HDMI 1.3 / HDCP 1.1
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal ) 17.3"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 400
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 600 : 1
Viewing angle ( L/R/U/D ) 80/80/60/80
Viewing angle (H x V) 160° x 140°
Response time ( ms ) 40
Dot pitch ( mm ) 0.1989
Display area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 50,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC, CE & CCC certified
Safety UL, cUL, CE / LVD & CCC certified
Environment RoHS2 & REACH compliant

The F117 series is also known as the F-117. The F117e comes with an integrated touchpad, while the F117b comes with an integrated trackball.

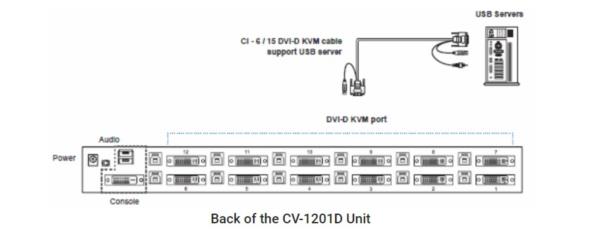

CV-1201D Specifications:

Mechanical
Width 17.4 in. (44.3 cm.)
Height 1.72 in. (4.36 cm.)
Depth 6.7 in. (17.1 cm.)
Weight 6.5 lbs. (3 kegs.)
KVM Port 12 x DVI-D
KVM Connectivity DVI-D/USB 3.0 Connector
Combo 4-in-1 KVM Cable, 6 or 15 feet
Local Console 1 x DVI-D (up to 1920x1200)
2 x USB Type A for KB & MS
1 x 3.5mm Stereo Audio
Management Front push button or keyboard hotkey
Compatibility Mix PC, SUN, MAC G3/G4/iMac, IBM, HP, DELL
Windows 7/ Vista/ 2003/ XP/ 2000, Linux, Unix
Power 100-240VAC, 50/60Hz 0.3 via IEC type cord
(Optional 12V, 24V, 48V DC input available)
Regulatory Approval FCC, CE
Environmental
Operating/Storage 0 to 50C / -5 to 60C
Relative Humidity 90%, non-condensing
Shock 50G peak acceleration (11ms, half-sine wave)
Vibration 58-100Hz/0.98G (11min/cycle)

CV-1201D KVM Hot Key Sequences

Function Hot Key Sequence
Previous Port [Scr Lock] [Scr Lock] [Up]
Next Port [Scr Lock] [Scr Lock] [Down]
Specific Port [Scr Lock] [Scr Lock] [Port #]
AutoScan for PC's [Scr Lock] [Scr Lock] + [S]
Enable/Disable Beeper Sound [Scr Lock] [Scr Lock] [B]
