KSR-F117e-DP

Austin Hughes

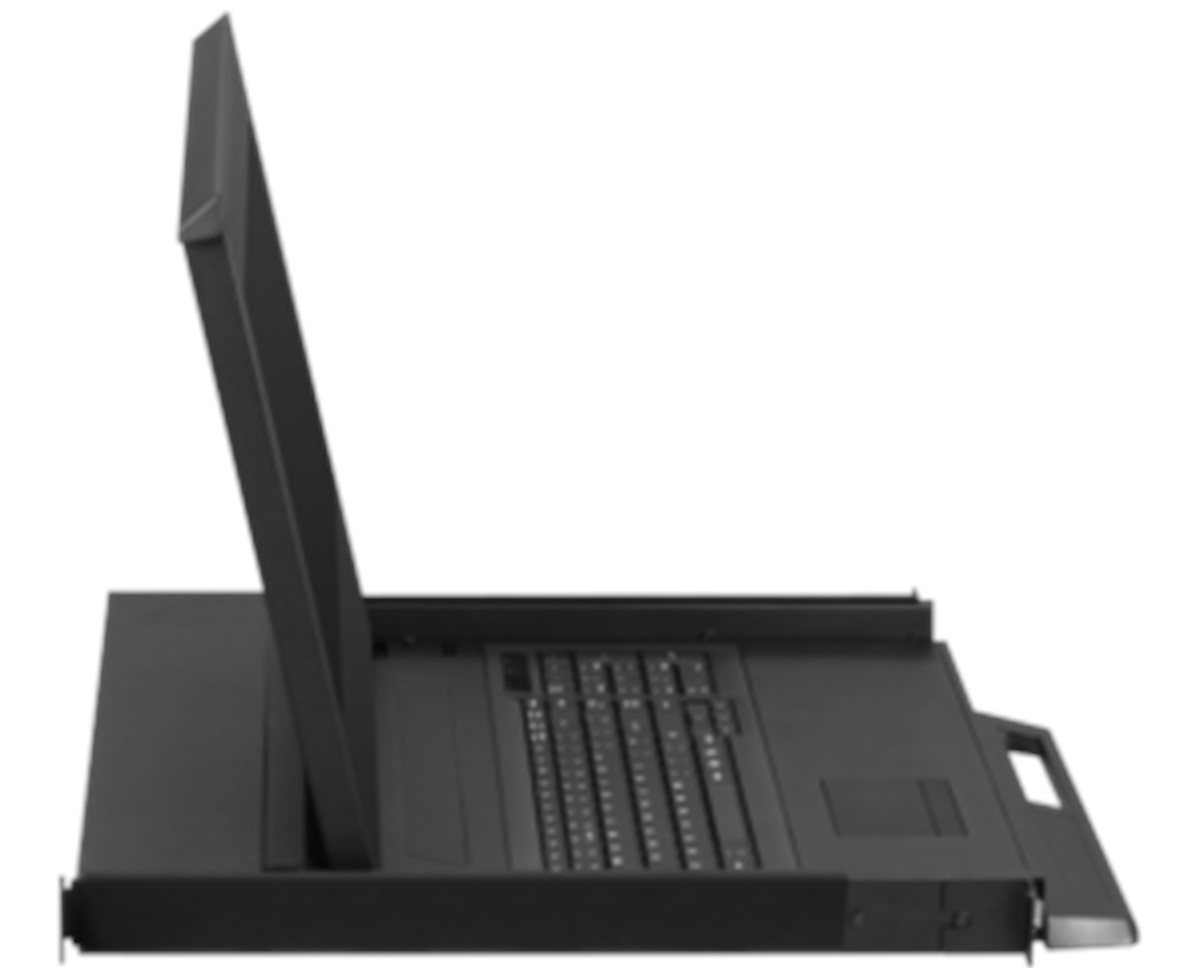

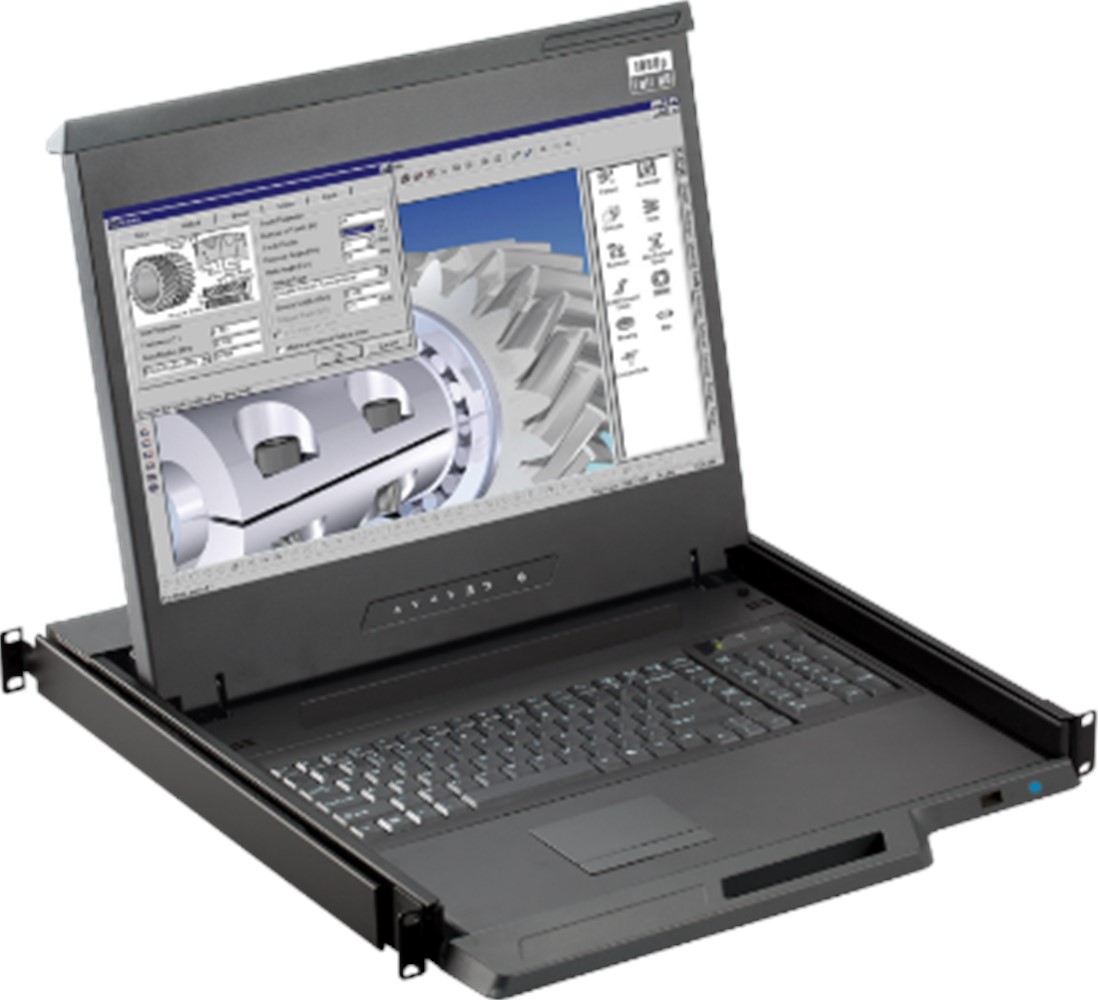

The Cyberview F117 is a 1U 17" widescreen 1080P LCD console drawer with Display Port/ HDMI /VGA Inputs . The keyboard is a 104 key notepad keyboard with touchpad,

The Cyberview F117 is a 1U 17" widescreen 1080P LCD console drawer with Display Port/HDMI/VGA Inputs. The keyboard is a 104 key notepad keyboard with touchpad,


F-117 Features & Benefits:

  • 1U 17" widescreen LCD console drawer with Display Port, HDMI,  VGA
  • Support Full HD with 1080p resolution / 16.7M colors ( 8-bit )
  • New enhanced aesthetics with molded front handle
  • Short depth design of 460mm ( 18.1" ) only
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • Front USB port for device access ( USB Hub KVM only )
  • 2 post rack mounting available
  • UL, cUL, CE, FCC, & CCC Certified

F117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 18.1 in.
(44 x 442 x 460 mm.)
*Some options extend chassis depth to 18.9 in. ( 480 mm. )
Console w/ KVM 1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console 23.8 lbs. (10.8 kg)
Console w/ KVM 25.5 lbs. (11.6 kg)
Gross Weight
Single Console 34.8 lbs. (15.8 kg)
Console w/ KVM 38.5 lbs. (17.5 kg)
Mounting Distance
Single Console 18.5 ~ 27.6 inch
(470 ~ 700 mm)
Console w/ KVM 18.5 ~ 31.5 inch
(470 ~ 800 mm)
Console Ports
Video Input Display Port /HDMI / VGA
Video Option DVI-D
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen

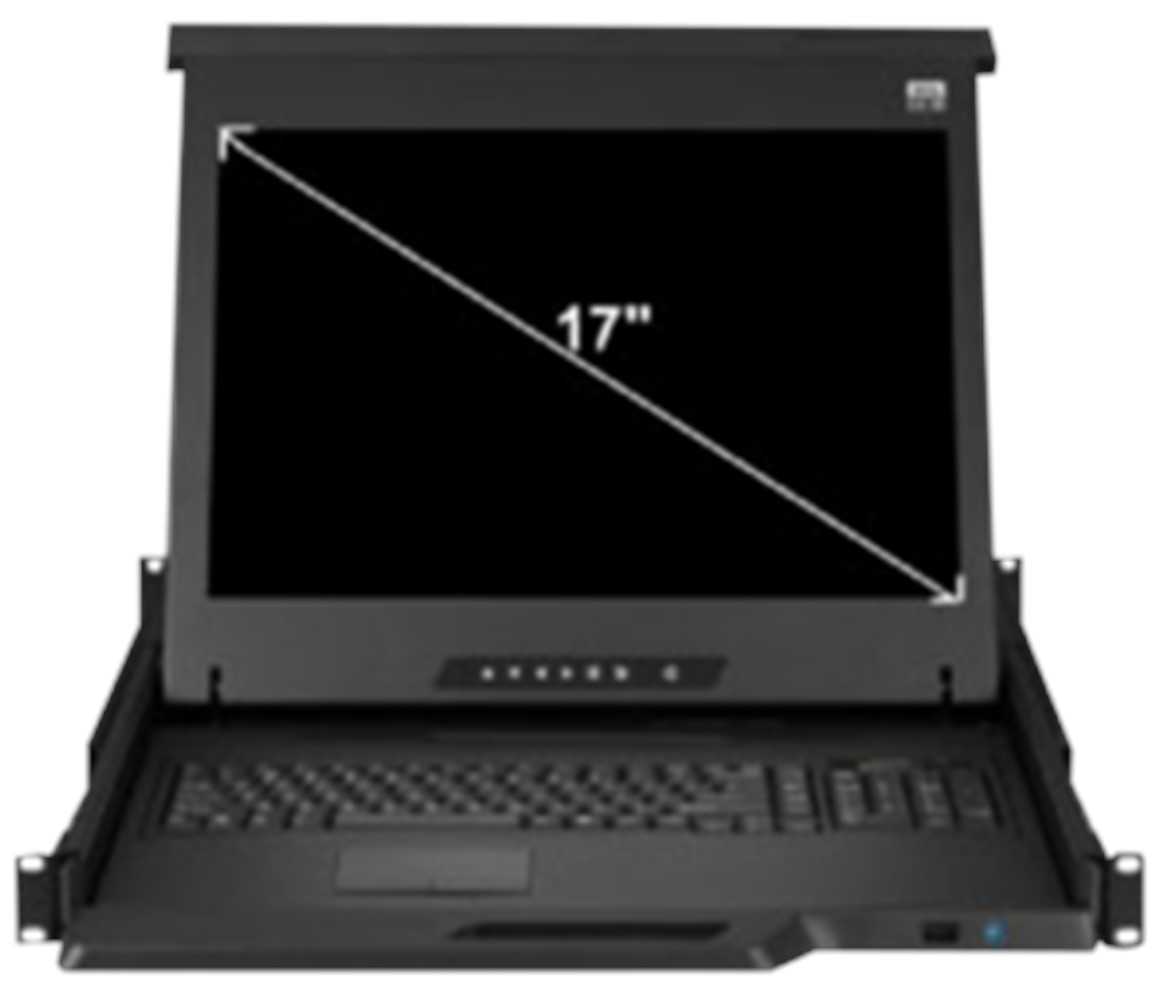

LCD panel size ( diagonal ) 17.3"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 400
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 600 : 1
Viewing angle ( L/R/U/D ) 80/80/60/80
Viewing angle (H x V) 160° x 140°
Response time ( ms ) 40
Dot pitch ( mm ) 0.1989
Display area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 50,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC, CE & CCC certified
Safety UL, cUL, CE / LVD & CCC certified
Environment RoHS2 & REACH compliant

The F117 series is also known as the F-117. The F117e comes with an integrated touchpad, while the F117b comes with an integrated trackball.
