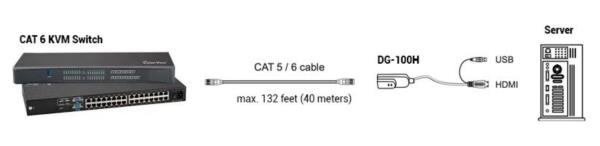

The DG-100H is a HDMI + USB KVM dongle for connecting a source computer to a CyberView Cat6 KVM switch (stand-alone or integrated into a CyberView Rack Console Drawer).

• connect HDMI connector to the computer's video card
• connect USB connector to the computer's USB port

DG-100H Features:

• Connect Cat5/5e/6 cabling from the switch to the keyboard, video & mouse ports of the target server
• Increased distance of up to 40mt.
• Provide simple plug-n-play installation to any USB / SUN / iMAC servers
• Max resolutions support of 1920 x 1080 (16:9) and 1600 x 1200 (4:3)
• Reduces clutter of multiple cables between tiers
