M-CIP-DSH

Matrox

Matrox ConvertIP DSH is a compact, standalone ST 2110 and IPMX transmitter/receiver Dual-channel SFP HDMI-to-IP device.

Matrox ConvertIP DSH is a compact, standalone ST 2110 and IPMX transmitter/receiver Dual-channel SFP HDMI-to-IP device.

Featuring HDMI I/O, one RJ45, and two SFP28 ports on a singe device, ConvertIP DSH is designed for compressed or uncompressed workflows up to 25G and is optimal for an ultra-low latency experience.



Model: CIP-DSH

  • HDMI I/O
  • Multi-network support
  • 2x SFP28 (10G & 25G network support)
  • 1x RJ45 (1G network support)
  • Fanless design for quiet cooling



SMPTE ST 2110 is a standard from the Society of Motion Picture and Television Engineers (SMPTE) that describes how to send digital video over an IP network.  ST 2110 permits granular transport of individual separate essence streams supporting video, audio, and metadata.

IPMX standard is designed to transport and control of compressed and uncompressed video and audio, including 4Kp60 with 4:4:4 color, over standard 1 Gigabit Ethernet networks.  IPMX (Internet Protocol Media Experience) is a proposed set of open standards and specifications for AV over IP which address the ProAV industry’s need for a common set of ubiquitous standards and protocols in the transition to IP infrastructures.

  • Converter Signal Types - Audio & Video
  •  Converter Type - Up/Down Converter
  • Rackmountable - Yes
  • ROHS Compliant - Yes
  • Warranty - Yes
  • Warranty (Length/Type): 3 Years
  • Certifications: EU, REACH, CE (EU), FCC (USA), ICES-003 (Canada), KC (Korea), RCM (Aus/NZ)
  • Operating Temperature (Maximum): 45 C
  • Operating Temperature (Minimum): 0 C
  • Current Draw: 0.50 Amps
  • AC Voltage (Minimum): 100 Volts
  • AC Voltage (Maximum): 240 Volts
  • Active Power: 18 Watt
  • Depth: 181.10 mm
  • Height: 36.07 mm
  • Width: 191.26 mm
  • Product Weight: 0.75 kg
  • Colour: Black
  • Form Factor: Standalone appliance, Rack-mountable: 1U, 1/2 rack (horizontal)

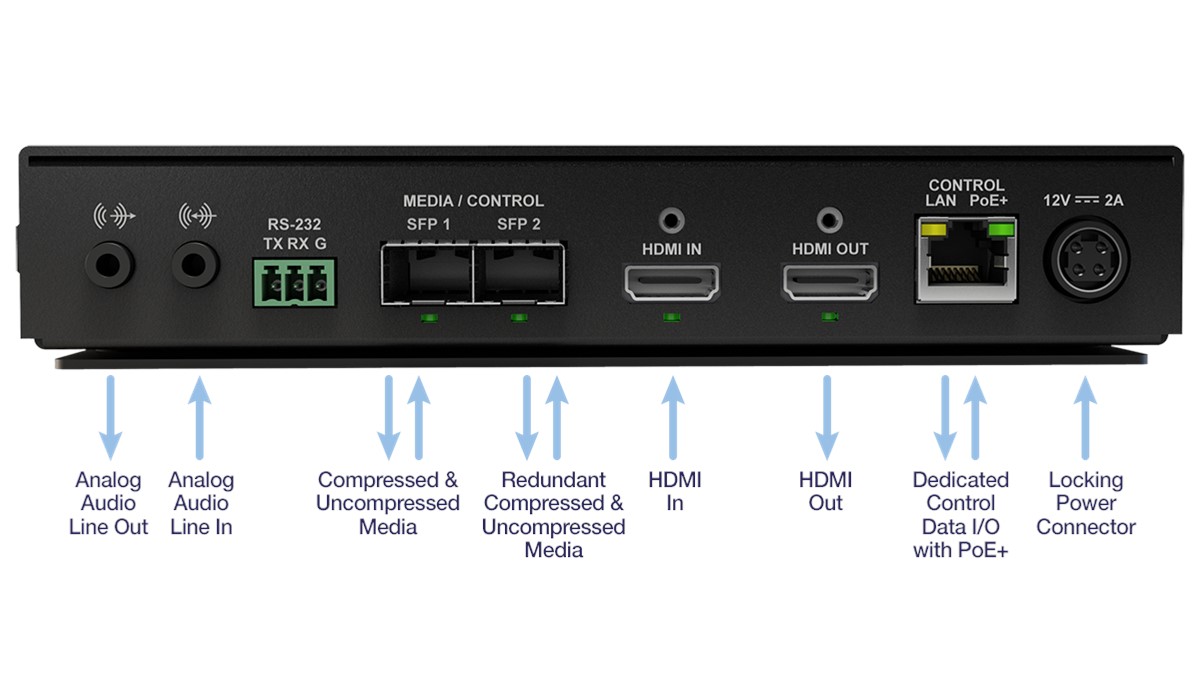

  • Video Input: 1x HDMI
  • Video Outputs: 1x HDMI (zero latency pass-through in Tx mode)
  • Audio Input/Output: Up to 8 channels of audio embedded in HDMI signal, Unbalanced analog stereo input via 1/8“ (3.5mm) jack, Line Level
  • Network Connector: 2x SFP28 cages for ST 2110 media and In-band control on LAN 1 and LAN 2, 10 GbE IEEE 802.3ae (10GBASE-SR/LR), 25 GbE IEEE 802.3by (25GBASE-SR/CR/CR-S), 25 GbE IEEE 802.3cc (25GBASE-LR), LAN2 for redundancy mode only, Dedicated RJ-45 management network interface for control (10/100 Mbps)
  • RS-232: Yes
  • Control and management: Web browser-based UI, standalone utility



  • Maximum Video Resolutions: 4096 x 2160 60p, All standard desktop GPU resolutions supported
  • Color Space: YUV 4:2:0 10-bit1 and 8-bit2, YUV 4:2:2 10-bit3, RBG 4:4:4 8-bit, SDR/HDR4
  • Video Scaling: High Quality multi-tap 10-bit Up/Down Scaler
  • Video Deinterlacing: Yes
  • Color Space Conversion: Yes
  • HDCP Support: Yes
  • Video: Uncompressed; HD 3 Gbps, 4K 12 Gbps, ProAV 4:4:4 8-bit codec; HD 200 Mbps, 4K 800 Mbps, Optional: JPEG-XS 4:2:2 10-bit; HD 400 Mbps, 4K 1.6 Gbps
  • Audio: Uncompressed PCM (~1 Mbps/ch)
  • Latency: Less than a 1/4 frame (<4 ms)
  • Network Standard: RJ45 providing 1 GbE or 2.5 GbE Base-T Ethernet
  • IP addressing: IPv4, IPv66, DHCP (default) and static IP
  • Supported Protocols: SMPTE ST 2110 (-10, -20, -21, -30, -31, and -40), SMPTE ST 2059-2, SMPTE ST 2022-7
  • Redundancy: Yes (ST 2022-7)
  • Command and Control: HTTPS over TCP
  • Discovery, Registration and Control: NMOS discovery and control according to standards IS-04 v1.3 and IS-05 v1.1
  • PoE+: Yes (IEEE 802.3at Type 2)
  • Cooling: Fanless



Hardware included: ConvertIP DSH appliance
Optional Hardware: ConductIP NMOS-based routing solution (Part #: CDCTIP-SERV)

Accessories (sold separately):

ConvertIP power supply unit (Part #: EPS40WKIT-NA, EPS40WKIT-EU, EPS40WKIT-UK, EPS40WKIT-AU, EPS40W-10PK8 ),

  • Rackmount kit (Part #: RMK-19TR-A),
  • Angled bracket kit (Part #: RMK-6BRKT-A),
  • Secure cable solution for HDMI (Part #: SK-SLND-4),
  • NRG redundant power supply unit (Part #: NRG-5-1DB or NRG-5-2DB)



  • Software: Matrox ConvertIP Command Center (Web UI), Matrox ConvertIP Manager (Microsoft® Windows® 10)
  • Optional Software: JPEG-XS codec license

Operating Conditions:

  • Altitude: 650 hPa (3,580 m) to 1,013 hPa (0 m),
  • Humidity: 20% to 80% non-condensing

  • Storage conditions:
  • Temperature: -40 to 70 degrees Celsius,
  • Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m),
  •   Humidity: 5% to 95% non-condensing
  • Rack Units (Height): 1
