Matrox ConvertIP SRH is a compact, standalone ST2110 & IPMX transmitter/receiver Single-channel RJ45 HDMI-to-IP device.

Description
Specification
Downloads
Videos

Matrox ConvertIP SRH is a compact, standalone ST2110 & IPMX transmitter/receiver Single-channel RJ45 HDMI-to-IP device. Featuring one RJ45 port, ConvertIP SRH is designed for 1G AV workflows and is optimal for an ultra-low latency experience.

Model: CIP-SRH

HDMI I/O
Multi-network support
1x RJ45 1G network support
Fanless design for quiet cooling
Power redundancy through PoE+ and locking AC power connector (optional power supply cable sold separately)

SMPTE ST 2110 is a standard from the Society of Motion Picture and Television Engineers (SMPTE) that describes how to send digital video over an IP network. ST 2110 permits granular transport of individual separate essence streams supporting video, audio, and metadata.

IPMX standard is designed to transport and control of compressed and uncompressed video and audio, including 4Kp60 with 4:4:4 color, over standard 1 Gigabit Ethernet networks. IPMX (Internet Protocol Media Experience) is a proposed set of open standards and specifications for AV over IP which address the ProAV industry’s need for a common set of ubiquitous standards and protocols in the transition to IP infrastructures.

Converter Signal Types - Audio & Video
Converter Type - Up/Down Converter
Rackmountable - Yes
ROHS Compliant - Yes
Warranty - Yes
Warranty (Length/Type): 3 Years
Certifications: EU, REACH, CE (EU), FCC (USA), ICES-003 (Canada), KC (Korea), RCM (Aus/NZ)

Operating Temperature (Maximum): 45 C
Operating Temperature (Minimum): 0 C
AC Voltage (Maximum): 240 Volts
AC Voltage (Minimum): 100 Volts
Current Draw: 0.50 Amps
Active Power: 18 Watt

Depth: 181.10 mm
Height: 36.07 mm
Width: 139.70 mm
Product Weight: 0.65 kg
Colour: Black
Form Factor: Standalone appliance, Rack-mountable: 1U, 1/3 rack (horizontal)
Cooling: Fanless

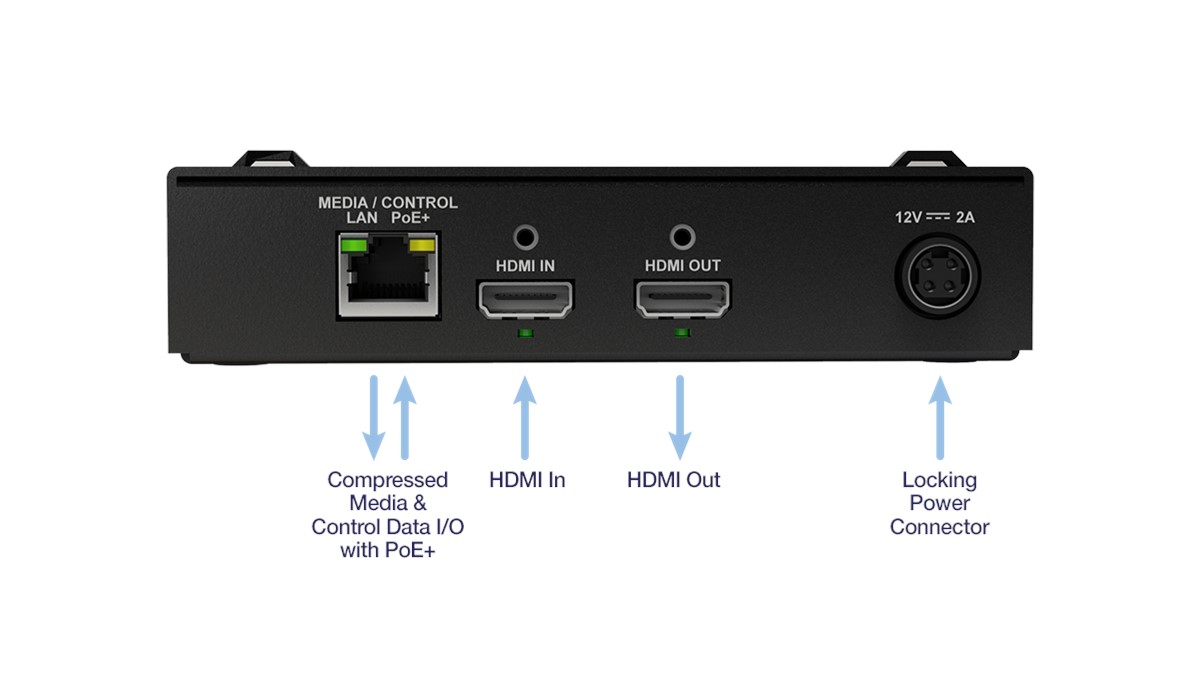

Video Input: 1x HDMI
Video Input Resolutions: HD and 4K broadcast resolutions
Video Outputs: 1x HDMI (zero latency pass-through in Tx mode)
Audio Input/Output: Up to 8 channels of audio embedded in HDMI signal, Unbalanced analog stereo input via 1/8“ (3.5mm) jack, Line Level
Network Connector: 1x RJ45 LAN for Media/Control
Control and management: Web browser-based UI, standalone utility

Maximum Video Resolutions: 4096 x 2160 60p
Color Space: YUV 4:2:0 10-bit1 and 8-bit2, YUV 4:2:2 10-bit3, RBG 4:4:4 8-bit, SDR/HDR4
Video Scaling: High Quality multi-tap 10-bit Up/Down Scaler
Video Deinterlacing: Yes
Color Space Conversion: Yes
HDCP Support: Yes
Video: ProAV 4:4:4 8-bit codec; HD 200 Mbps, 4K 800 Mbps, Optional: JPEG-XS 4:2:2 10-bit; HD 400 Mbps, 4K 1.6 Gbps, Bitrates vary based on resolution
Audio: Uncompressed PCM (~1 Mbps/ch)
Latency: Less than a 1/4 frame (<4 ms)
Network Standard: RJ45 providing 1 GbE or 2.5 GbE Base-T Ethernet
IP addressing: IPv4, IPv66, DHCP (default) and static IP
Supported Protocols: SMPTE ST 2110 (-10, -20, -21, -30, -31, and -40), SMPTE ST 2059-2, SMPTE ST 2022-7
Redundancy: Yes (ST 2022-7)
Command and Control: HTTPS over TCP
Discovery, Registration and Control: NMOS discovery and control according to standards IS-04 v1.3 and IS-05 v1.1
PoE+: Yes (IEEE 802.3at Type 2)

Hardware included: ConvertIP SRH appliance
Optional Hardware: ConductIP NMOS-based routing solution (Part #: CDCTIP-SERV)

Accessories (sold separately):

ConvertIP power supply unit (Part #: EPS40WKIT-NA, EPS40WKIT-EU, EPS40WKIT-UK, EPS40WKIT-AU, EPS40W-10PK7),
Rackmount kit8 (Part #: RMK-19TR-A),
Angled bracket kit (Part #: RMK-6BRKT-A),
Secure cable solution for HDMI (Part #: SK-SLND-4),
NRG redundant power supply unit (Part #: NRG-5-1DB or NRG-5-2DB)

Software: Matrox ConvertIP Command Center (Web UI), Matrox ConvertIP Manager (Microsoft® Windows® 10)
Optional Software: JPEG-XS codec license
