ALAV100T-AUS-EOL

Adder

This is a Transmitter unit for the AdderLink AV100 Series. It is a range of audio visual extenders delivering high video resolutions and superb quality audio up to 300m using standard CATx cable. Full HD digital signage extender with Audio: 1080p & 720p


The AdderLink AV Series is a range of audiovisual extenders delivering high video resolutions and superb quality audio up to 300m using standard CATx cable (x=5,5e,6,7).

Designed for use in Digital Signage applications, the innovative design allows for flexible distribution that can grow in line with project developments and ensures direct delivery of crystal clear communication to consumers at the point of decision. The AdderLink AV Series avoids the prohibitive costs of fibre optic cabling, displays with built in CPUs or locating a CPU next to each screen.

Extends video and audio across a single CATx cable

Extra fine video quality at resolutions up to 1920x1080 at 200m and 1280 x 1024 at 300m

High fidelity clickless digital audio (16bit, 44.1 kHz, stereo)

Fine, independent sharpness and brightness control

DDC support

Integrated state of the art 300MHz DeSkew with 62ns full scale & 2ns granularity (AV101R only)

Feed through / cascade port at transmitter

Dual video and audio outputs at receiver

Use stand alone or rack mount 16 modules across 3U

Advanced spike suppression circuits for reliability in 'noisy' installations

All metal construction

Power / video indication confirms correct operation

The AdderLink AV Series consists of 4 interchangeable units:

ADDERLink AV100T transmitter and ADDERLink AV100R

Sold individually or as a pair (AdderLink AV100P)

Extends high-resolution video and high fidelity audio up to 300m

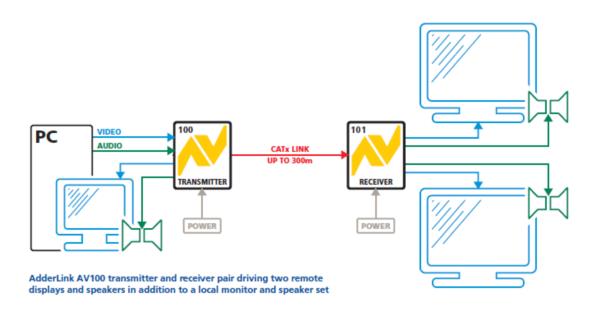

Local port on transmitter to connect local screen and speakers or for cascading other AdderLink AV100T transmitter units

AdderLink AV100R duplicates input from transmitter allowing for 2 video and 2 audio outputs

Can be used as a receiver up to 300m from AdderLink AV100T or AdderLink AV104T transmitters

ADDERLink AV104T transmitter

Extends a single high-resolution video and high fidelity audio signal to 4 different receivers

Local port to connect local screen and speakers or to cascade to other AdderLink AV104T transmitter units

ADDERLink AV101R receiver unit

Duplicates input from transmitter allowing for 2 video and 2 audio outputs

Integrated skew adjustment allowing the receiver to be located further from the transmitter and/or cope with higher video resolutions

Can be used as a receiver up to 300m from AdderLink AV100T or AdderLink AV104T transmitters

Has local cascade port allowing for other receivers to be cascaded from the original receiver

Video Resolutions

HD 1920x1080 at distances up to 100 metres/325 feet, 1280 x 1024 at distances up to 300 metres/1000 feet. Extension distance Up to 300 meters/1000 feet using CATx (x=5,5e,6,7).

Extension technology

Differential analogue signalling for video signals.

Cable Equalisation

Finely adjustable cable equalisation amplifiers enable the video sharpness and brightness to be independently adjusted using the dials on the side of the receiver units.

Integral DeSkew (ADDERLink AV101R only)

Skew compensation adjustments can be made using the two rotary dials on the AdderLink AV101R receiver unit. The first dial affects the relationship between green and blue colour signals, the second red and green. The cable skew is produced due to wire length differences between different twisted pairs in a CATx cable that arise due to the different twist rates used to reduce signalling cross talk. The amount of cable skew seen depends on the cable type used and the cable length. The AdderLink AV101R provides up to 62ns of DeSkew with a fine 2ns resolution. This means that high-resolution video can be accurately DeSkewed even at long cable distances. The DeSkew supports 300MHz bandwidths, which means that the DeSkew function does not adversely affect the video quality.

Indicators

The remote and local units are fitted with two indicators; red shows the presence of power into the module, green indicates the presence of a video input.

Audio

Transmitted as digital signals to ensure high fidelity and low noise levels. Phase locked sampling clocks ensure that there are no unwanted clicks when no sound is being played.

Rack mount options

Both the local (computer-end) and remote (display-end) units may be rack mounted in the ADDERLink AV Series rack mount chassis. The chassis enable 16 units to be mounted in 3U of 19-inch rack space. The units are rack mounted using the optional rack mount faceplate.

Connectors (ADDERLink AV100T)

1 x blue 15-pin high-density D-type female connector for video input and 1 x light green 3.5mm audio jack for audio input.

1 x blue 15-pin high-density D-type female connector for video output and 1 x light green 3.5mm audio jack for audio output or cascade to additional AdderLink AV100T.

1 x RJ45 connector for CATx cable connection.

2.5mm DC jack for power adapter.



Physical (All ADDERLink AV units)

Metal case (steel and stainless steel), 98mm x 95mm x 25mm.

Power

All AdderLink AV units are powered by an external 5.3V DC, 2.5A power supply with IEC power cable connection. A country specific power cord is provided. Alternatively 4 units can be powered using a 4amp power supply and the Adder "squid" cable.

Spike suppression

All AdderLink AV units are fitted with spike suppression circuits.

Display Data Channel

DDC signalling is supported to enable the computer to communicate with the local monitor and thus configure its video card for optimal operation.

Package contents

All AdderLink AV Series come with the necessary IEC style power supply and power cord, safety and installation leaflet, CD manual, stick on rubber feet. (Note: the rack panels are not inlcuded and need to be purchased seperatly as required.

Optional accessories

ALAV - Series rack mount chassis (part code: ALAV-RMK-CHASSIS), rack mount plate for local/remote unit (part codes: ALAV-RMK-FACIA). Adder 4amp power supply and "squid" cable to power 4 ALAV units (part code ALAV-PDM-KIT).

Approvals

FCC class A, CE marked.

Power

Operating Voltage: 100-240VAC

Power Frequency: 50-60Hz

Usage: 5.3VDC at 500mA.

Temperature Tolerance

0 - 40 deg C (32 to 104 deg F)

Humidity Tolerance

5 to 60% non-condensing
