The ADDERView CATx Series is a range of secure, KVM via CATx switches that provides 4 concurrent local, remote or global users with BIOS-level control of up to 24 multiplatform servers.
A "plug-and-play," 1U appliance, the ADDERView CATx is a completely self-contained system that installs in minutes combining high security, flexibility, integrated remote power control, faultless quality video and optional CD quality audio.

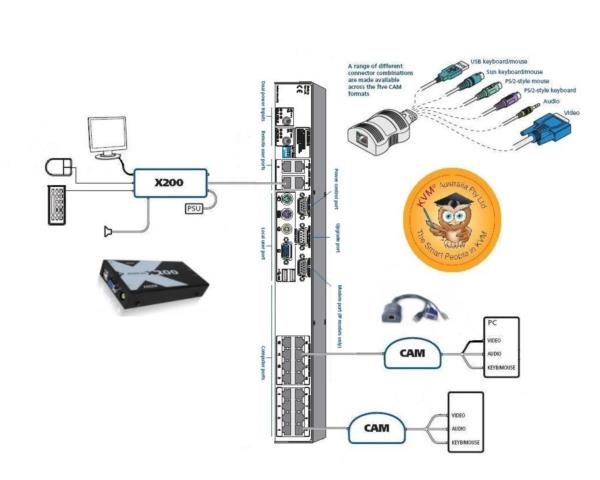

The two members of the series are the ADDERView CATx supporting 16 or 24 CATx computer connections, 4 simultaneous users (1x local PS/2 or USB, 4 x remote over CATx) and the ADDERView CATx IP supporting 16 or 24 CATx computer connections, 4 simultaneous users (1x local PS/2 or USB, 2 x remote over CATx, 1 x global over IP)
Exceptionally high video performance to local, remote and global users
True multi-platform support
Flash upgradeable CAMs available for PS/2, USB and Legacy Sun keyboard and mouse support with optional audio
Country code reporting
DDC and keyboard and mouse emulation
PS/2 or USB keyboard and mouse control
Expand using CATx cascade connections with simple user intuitive set up
Optional CD quality audio when using correct Computer Interface Module (CAM)
Power control functions supported via dedicated serial port
Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication)
Global users (IP) can chose between HTTP or RealVNC for highly secure connections and high performance.
Go to Adder Computer Access Modules (CAM)
Options
PS/2 CAMs
CATX-PS2 - PS/2 only
CATX-PS2-A - PS/2 plus audio
USB CAMs
CATX-USB - USB only
CATX-USB-A USB plus audio
DP CAMs
CATX-DP-USBA
CATX-MDP-USBA
Sun CAM
CATX-SUNA - Sun plus audio
Physical design
ADDERView CATx: 1U high metal case 482mm/19" (w), 215mm/8.5" (d), 45mm/1.8" (h)
(Rack mount kits included)
Local KVM console connection
Video: HDD15.
Keyboard/Mouse: MiniDin6 / USB type A.
Audio: 3.5mm stereo jack
Computer and remote CATx user connections
All RJ45 style
Network port (ADDERView IP models only)
RJ45 10/100Mb auto-sensing Ethernet port
Power connections
IEC style power lead (100 – 240V AC, 50-60Hz).
Redundant via 2.5mm DC jack (5V DC, 6A)
Other connectors
DB9 female for flash upgrade, syncing boxes and other special functions.
DB9 male for RS232 triggered power switches.
DB9 male (ADDERView IP only) for modem connection.
Hardware compatibility
Supports PC, Sun (USB & 8-pin styles), Mac (USB), RS/6000, Alpha and SGI computers using PS/2, USB or Sun computer interface modules.
Software compatibility
Operates with all known software and operating systems including Windows (all); DOS; Linux, Unix, BSD; all Sun OS; all Mac OS; NetWare.
Operating Temperature
0 - 40 deg C (32 to 104 deg F)
Approvals
CE, FCC
