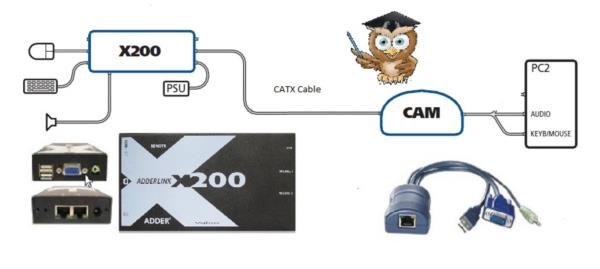

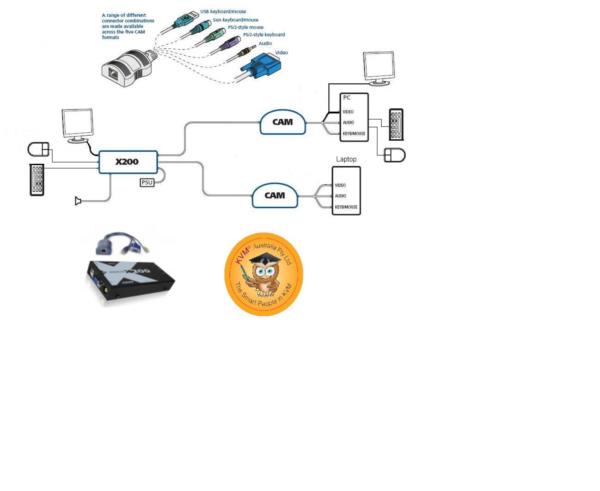

The ADDERLink X Series X200 extender consists of a full-featured USB keyboard, video and mouse extender complete with stereo audio capabilities, supporting a maximum resolution of 1,920 x 1,200. What makes the X200 stand out is the inclusion of a 2-port KVM switch that allows the user to control two target devices up to 300 meters away using just a single keyboard and mouse.

It also doubles up as a remote user station for the ADDERView CATx range of KVM switches. Other interesting features include skew correction with a 300MHz bandwidth, video compensation to adjust the picture sharpness and brightness, 44.1 kHz digital stereo high fidelity audio for speakers and DDC for automatic video setup.

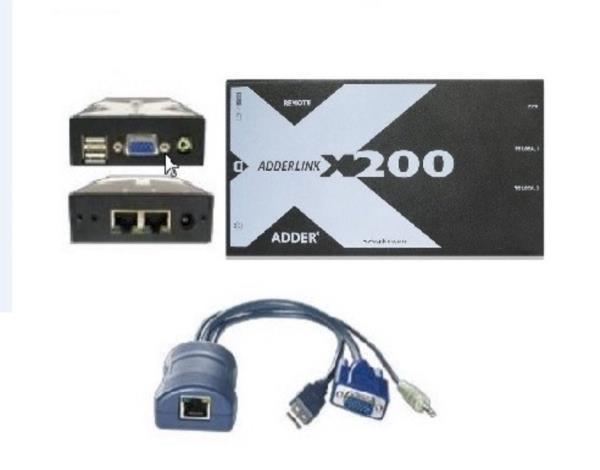

This Kit consists of a X200 unit, a USB CAM/Dongle.

SPECIFICATION:
Video Resolution
1920 x 1200 at distances up to 50 m/165 ft.
1600 x 1200 at distances up to 200 m/650 ft.
1280 x 1024 at distances up to 300 m/1000 ft.

Extension Distance
Up to 300 m/1000 ft. using CATx cable (x=5,5e,6)

Devices Supported
Supports computers with USB style keyboard and mice, flat-screen and
CRT style monitors with standard HDD-15 video connectors and optional
audio through 3.5 mm audio jack.

O/S Compatability
All known software and operating systems including Windows (all), DOS,
Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.

Connectors (USB CAM)
Video: HDD-15 Optional audio: 3.5 mm jack
Keyboard, Mouse: USB type A CATx: RJ45 connector

Connectors (X200 remote unit)
Video: HDD-15 Optional audio: 3.5 mm jack
Keyboard, Mouse: USB Type A CATx: 2 x RJ45 connector

Power: 2.5 mm DC jack
Physical (USB CAM) Combination of plastic enclosure and cables.
Enclosure: 64 mm/2.5 in. x 45 mm/1.8 in. x 25 mm/1 in.
Cables: 340 mm/13.4 in. long

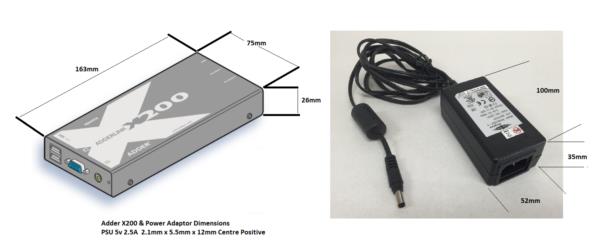

Physical (X200 remote unit)
All metal case, 172 mm/6.8 in. x 26 mm/1 in. x 75 mm/3 in. 430 g/1 lb.

Power Supply
100 - 240VAC 50/60Hz (X200 remote unit only)
