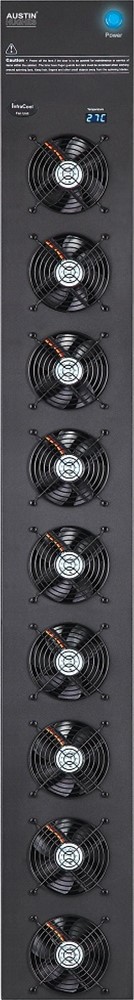

F-33.9A is a basic 33U door mount fan panel (model A) (9 fans). It extracts hot air out (rear door outside setup), or intake cool air in (front door inside setup).
With today’s high density heat loads inside server racks, cooling should be an integral part of the rack equipment. InfraCool Basic 33U Door Mount Fan Panel (F-33.9A) is designed as an efficient airflow solutions for server racks with high heat loads.
The light weight and simple mounting design allows the door mounting on the perforated doors of every branded rack. Strong airflow created by the fan panel highly improve the temperature conditions of high density rack-mounted rack.
Benefits
- 33U rack door mount w/ 9 Fans (972 CFM)
- Rear door outside (Extract airflow) / Front door inside (Intake airflow) mount
- Easy installation with common tools
- Thin & light weight design only 4.6 kgs / 10.1 lbs
- Designed for low noise & high airflow performance
- Improves extraction of heat from high density rack
- External temperature sensor x 1
- Front temperature LED
- Auto-sensing 110V to 220VAC power input
Options
- 48V, 24V or 12VDC power option
Model Installation Airflow Purpose
F-33.9A Rear door outside Extract airflow Exhaust air out from rack
Front door inside Intake airfow Cool air in from aisle
