AH-IP-S101

Austin Hughes

Cyberview CV-IP101 is a IP KVM Extender that lets you access a VGA-based computer or control a VGA-based KVM switch from anywhere in the world via a web browser.

The Cyberview CV-IP101 is a IP KVM Extender that lets you access a VGA-based computer or control a VGA-based KVM switch from anywhere in the world via a web browser.



Features

  • IP Remote access from any location via Web Browser (HTML-based Access)
  • Single port VGA IP KVM Gateway with Local pass-through access
  • High Performance VGA video with support for 1080p Over-IP
  • Quad-core Processor IP KVM with Enterprise Level IP Authentication
  • Maintaining servers across the world with BIOS level access
  • Compatible with all branded KVM switches - Hot pluggable, no software or drivers required

IP-S101 Package Contents

  • (1) IP-S101 IP KVM Transmitter
  • (1) CB-6 6ft VGA + USB KVM Cable
  • (1) Power adapter w/ US power cord
  • (1) 2-year standard warranty ( upgradable up to 5 years )


Cyberview IP-S101 Specifications

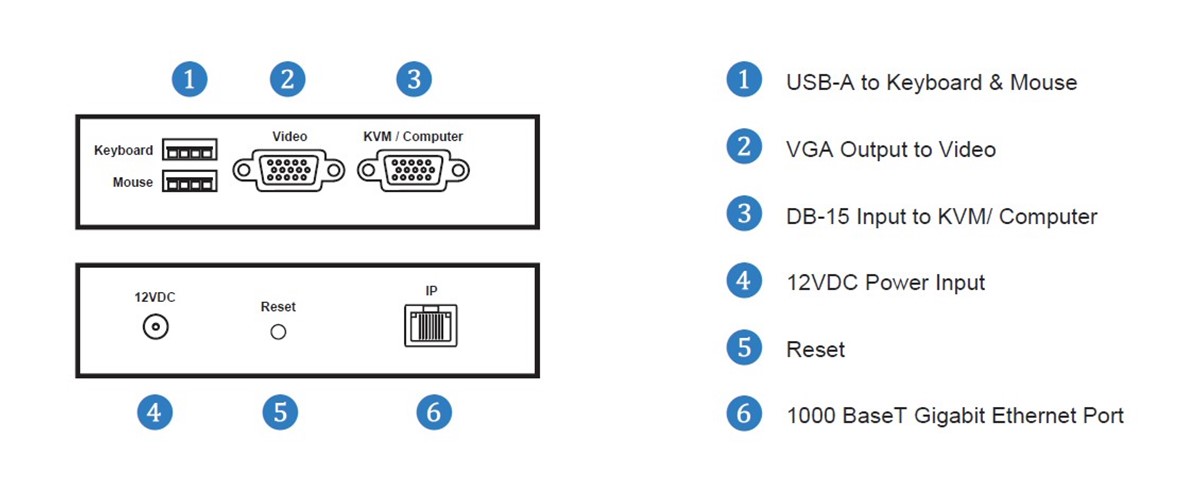

Connectivity
IP Connection 1 x RJ-45 Ethernet 10/100/1000
Console Connection 1 DB-15 VGA, up to 1920 x 1200
2 x USB type connector for keyboard & mouse
PC Connection 1 x DB-15 combo KVM port
Security
Authentication TLS 1.3, AES, LDAP, Active Directory (AD), HTTP(s)
User Management 1 x active user, 15-user login
Browser Support Chrome, Firefox, Edge, etc
Compliance
EMC FCC & CE
Safety CE / LVD & UKCA
Environment RoHS3 & REACH
Environmental
Operation Temperature 0 ~ 55 °C
Storage Temperature -20 ~ 60 °C
Humidity 20~90%, Non-Condensing
Physical
Dimensions 203.5W x 113.3D x 27.3H mm
Weight 1.7 kg / 3.74 lb
Power 12V power adapter
