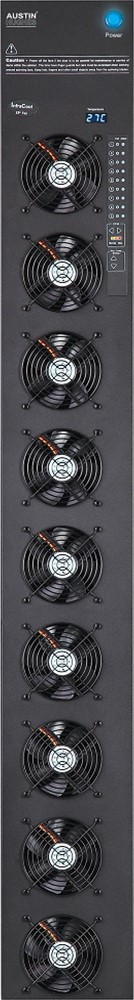

RF-33.9B is an intelligent expansion 33U door mount fan panel (9 fans). It intakes cool air in (front door outside setup), or extracts hot air out (rear door inside setup).

With today’s high-density heat loads inside server racks, cooling should be an integral part of the rack equipment. InfraCool Intelligent Door Mount Fan Panel (RF-33.9A) is designed to provide local and remote management capabilities.

Up to 16 fan units can be connected by daisy chain and remotely accessed by one single IP address. Maximum 30 x daisy chain group ( i.e. 480 x Fan Unit ) can be remotely managed by the free GUI. Front panel LED and buttons allow local monitoring and individual fan kit switch on / off.

Fan speed can be set to automatically adjust based on temperature changes being detected by the sensor. The intelligent fan units provide improved airflow whilst reducing operational costs associated with data center energy consumption.

Benefits

• Rear door outside (Extract airflow) / Front door inside (Intake airflow) mount
• Expansion unit (via serial) for Master IP Fan
• Easy installation with common tools
• Thin & light weight design only 5 kgs / 11 lbs
• Designed for low noise & high airflow performance
• Cascade ports for daisy chain up to 16 levels via Cat6 cable
• 1 x intelligent Master IP fan unit allows access to 16 fan unit levels over internet
• Free ICM-02 management software remote access up to 480 fan units
• Auto & manual CFM setting reduces power consumption
• 1 x bundled temp. sensor with 2M wire
• Temperature sensing technology adjusts the fan speeds accordingly
• Unit or individual fan on / off ( remote or local )

Options

• 48V, 24V or 12VDC power option

Model Installation Airflow Purpose
RF-33.9B Front door outside Intake airflow Cool air in from aisle
Rear door inside Extract airflow Exhaust air out from rack
