H16C13 / 4C19-32A-MD/CR_EN/3B-1

Austin Hughes

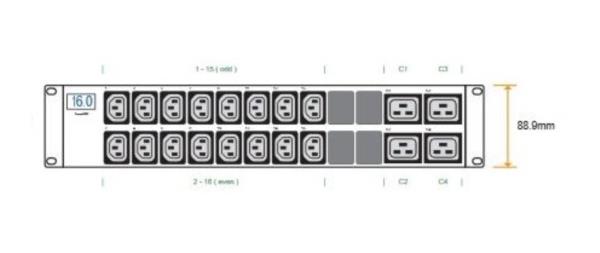

This is a MD Series Cost Efficient Strip Level Metered PDU. Allows true RMS current monitoring via a simple digital RMS ammeter. Vertical PDU with 20 Sockets (16xC13 / 4xC19), 32A, 240V, 3m cord to EN60309 Plug.

This is a MD Series Cost Efficient Strip Level Metered PDU.

Allows true RMS current monitoring via a simple digital RMS ammeter. Vertical PDU with 20 Sockets (16xC13 / 4xC19), 32A, 240V, 3m cord to EN60309 Plug.

The blue LED display is easy-to-read from a distance and allows rapid access to the aggregate load on the circuit. It easily prevents circuit overloads during equipment installation and allows users to plan the capacity based on actual real time current monitoring.



MD Specifications:

Mechanical
Length 17.23"
Height 3.5"
Depth 4.73"
Environmental
Operating Temp -5 to 60 ? (23 to 140 ?)
Storage Temp -25 to 65 ? (-25 to 149 ?)
Humidity 8 to 95% RH, non-condensing
Local Display
Meter Features 3-digit LED ammter measuring input load current
Measurement Current ( A )
Accuracy ± ( 3% of the reading + 5 digits ) RMS
Input Voltage 230V
Rated Amperage (de-rated) 30 amp (2 x 12 amp output)
Outlets 16 x 10A Rated IEC320 C13
4 x 16A Rated IEC320 C19
Standards
Agency Approvals FCC & CE certified, cUL / CE / LVD certified, RoHS2 & REACH
