KDR-DF117-UIP1602e

Austin Hughes

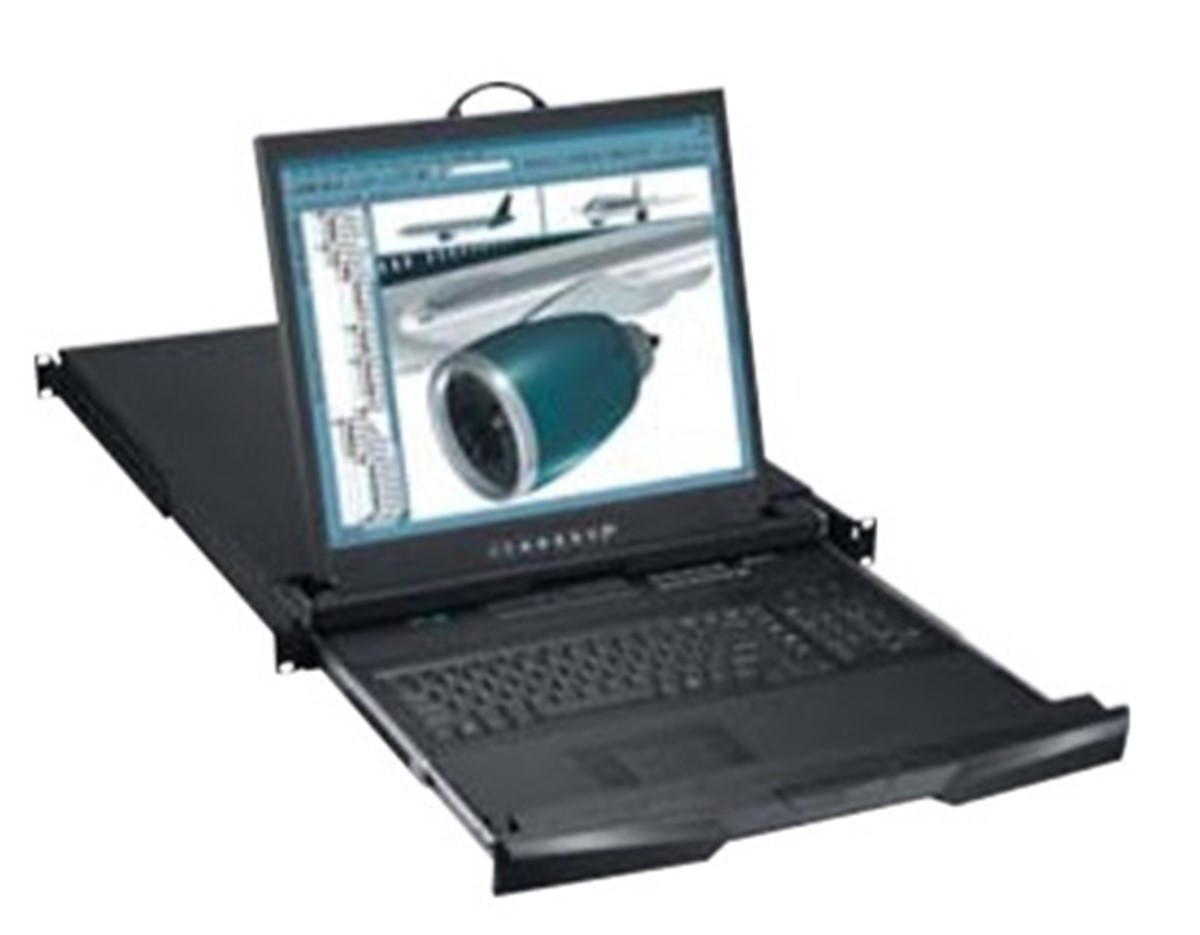

The Cyberview DF117-UIP1602e is a 1U 17" Full HD rackmount LCD monitor drawer with integrated 2-console (1 x local; 1 x IP), 16 port Combo Cat6 IP KVM Switch.

Description
Specification
Downloads
Videos

CyberView provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

The Cyberview DF117-UIP1602e is a 1U 17" Full HD rackmount LCD monitor drawer with integrated 2-console (1 x local; 1 x IP), 16 port Combo Cat6 IP KVM Switch.

This CyberView DF117-UIP1602e series handles the critical needs in data centers or limited space server rooms and IT closets. It allows a single KVM console drawer to control up to 16 servers in multiple racks at a distance of 40m over CATx cables(requires appropriate VGA or DVI dongles). It also allows remote administration from anywhere through the use of a secure IP connection.

DF117 Drawer Features and Dispaly Benefits

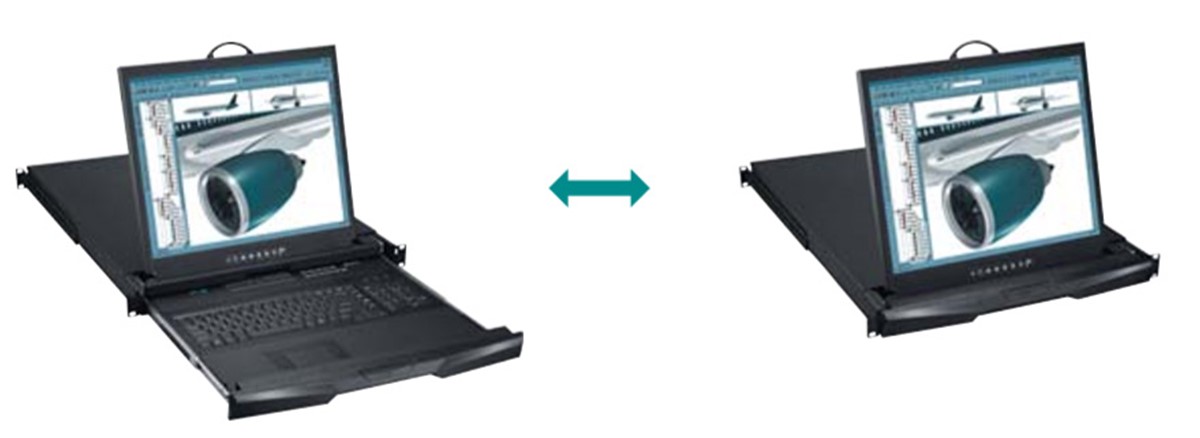

1U dual slide 17" widescreen LCD console drawer
Support Full HD with 1080p resolution
104-key keyboard with touchpad
SUN Micro or MAC keyboard options available
Enhanced aesthetics with new molded front panel and two point lock

Combo Cat6 IP KVM Switch Features & Benefits:

Combo Cat6 KVM with 16 ports in 1U
Up to 40 meters between your servers & KVM ports

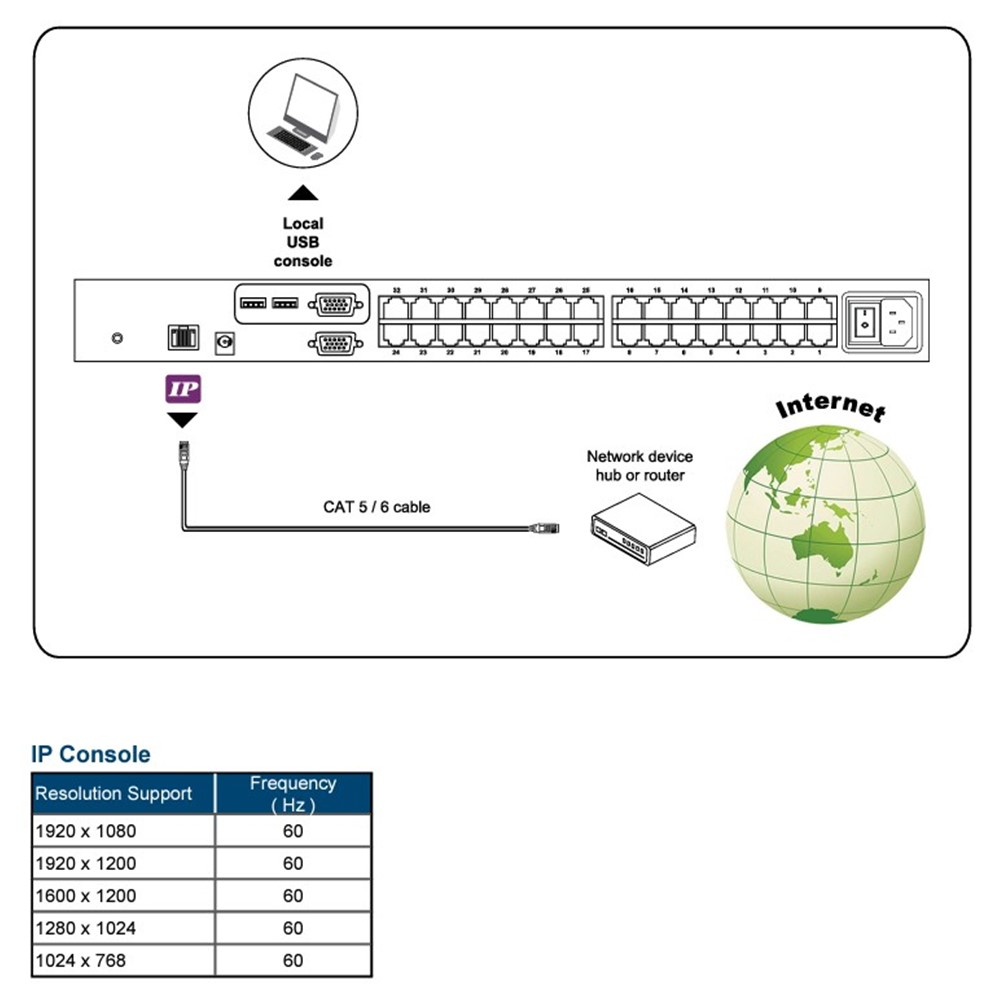

IP remote access across the world wide web
Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM

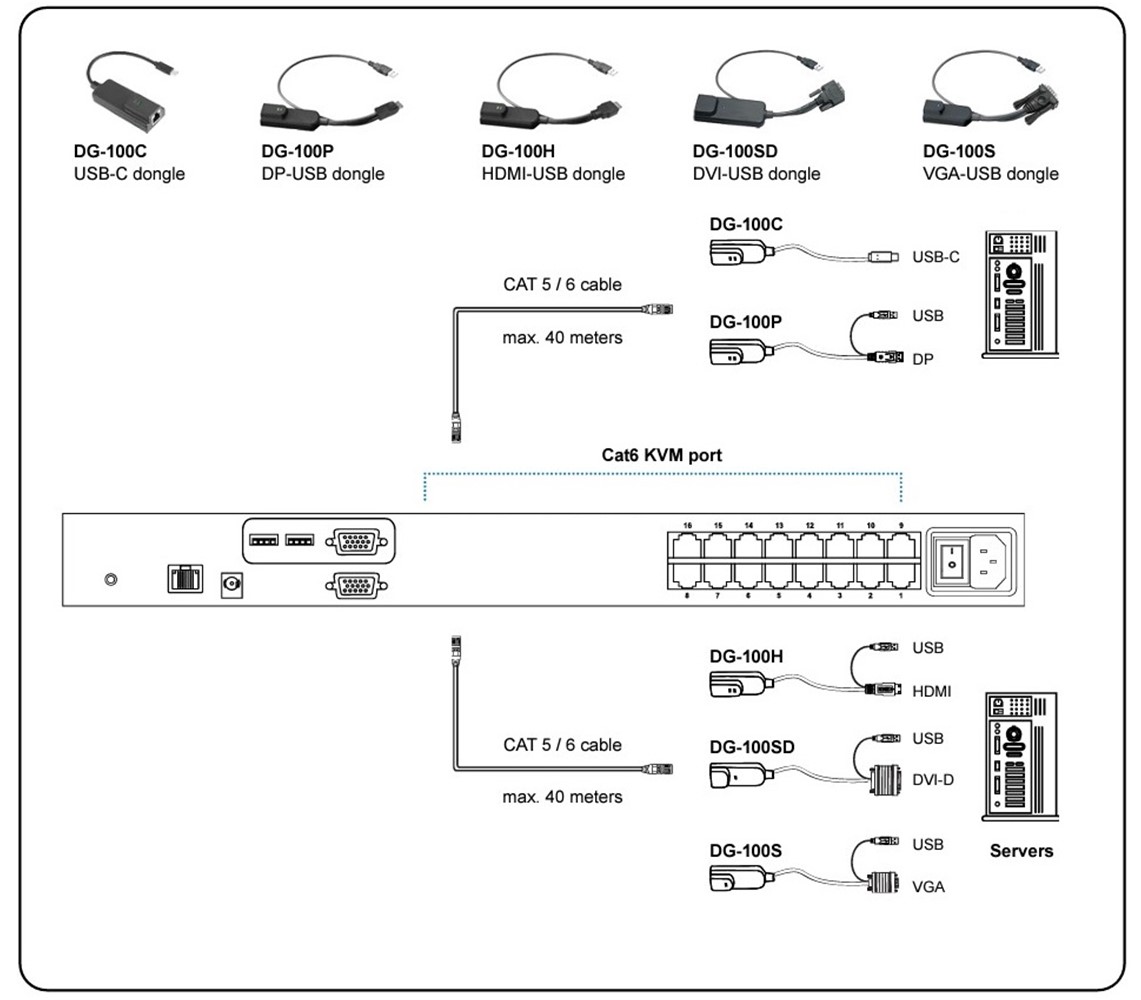

Support DVI-USB, VGA-USB & VGA-PS/2 server interface
Mix PS/2, USB & SUN with Multi-Platform switch capability
Multi lingual on screen display menu
Advanced user profiles and configurable OSD hot key combinations
Dual power with failover

DF117 Specifications

Mechanical

Product Dimensions (H x W x D)

Single Console	1.73 x 17.4 x 25.6 in. (44 x 442 x 650 mm.)
Console w/ KVM	1.73 x 17.4 x 25.6 in. (44 x 442 x 650 mm.)

Package Dimensions (H x W x D)

Single Console /
Console w/ KVM

5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)

Net Weight

Single Console	26.2 lbs. (11.9 kg)
Console w/ KVM	28.4 lbs. (12.9 kg)

Gross Weight

Single Console	39.4 lbs. (17.9 kg)
Console w/ KVM	41.6 lbs. (18.9 kg)

Mounting Distance

Single Console / Console with KVM

26 ~ 34.3 in
(660 ~ 870 mm)

Console Ports

Video Input

VGA + DVI-D single link

Video Option

HDMI 1.3 / HDCP 1.1

KB / MS

Combo ( USB or PS2 )

VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)

Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A

Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A

LCD Screen

LCD panel size ( diagonal )

17.3"

Backlight type

LED

Native resolution

1920 x 1080

Brightness (cd/m2)

400

Colors

16.7 M, 8-bit

Contrast Ratio (typ)

600 : 1

Viewing angle ( L/R/U/D )

80/80/60/80

Viewing angle (H x V)

160° x 140°

Response time ( ms )

Dot pitch ( mm )

0.1989

Display area ( mm )

381.888H x 214.812V

Surface treatment

Anti-glare, Hard-coating

Surface hardness

MTBF (hrs)

50,000

Audio Option

Speaker

2x 2W (Dual Stereo)

Input Connector

3.5mm stereo jack

Input Impedance / Power level

30? / 750mV

Output Connector

3.5mm stereo jack

Output Impedance / Power level

30? / 2.8V

Power

Power Input

Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption
(Single Console / with KVM)

Screen on	Max. 25W / Max. 55W
Power saving mode	Max. 4W / Max. 34W
Power button on	Max. 1W / Nil

Environmental

Operating Temperature

0 to 55°C Degree

Storage Temperature

-20 to 60°C Degree

Operating Humidity

20~90%, non-condensing

Relative Humidity

5~90%, non-condensing

Operating Altitude

16,000 ft

Non-operating Altitude

40,000 ft

Shock

10G acceleration (11ms duration)

Vibration

10~300Hz 0.5G RMS random vibration

Regulatory Compliance

EMC

FCC & CE certified

Safety

CE / LVD certified

Environment

RoHS2 & REACH compliant

UIP1602 Specifications:

KVM Switch
KVM Port	16 x RJ-15 connector
KVM Dongle	DVI-D / VGA connector dongle up to 40 meters (132 feet) Cat6 / Cat5 cable
Console	Local : 1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS IP Access : 1 x RJ45 Ethernet, 1 x DB-9 serial & 1 x USB port IP Security : SSL v3, RSA, AES, CSR, http & https internet access 15-user login ( 1 x active user )
Expansion	Support mixed Combo Cat6 or Combo DB-15 KVM, up to 256 servers
Compatibility	Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
Power	100~240VAC, 50 / 60Hz 0.3A via IEC type cord (12V / 24V / 48V DC input option)
Environmental	Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory Approval	FCC, CE
