KDR-DF117e-DP

Austin Hughes

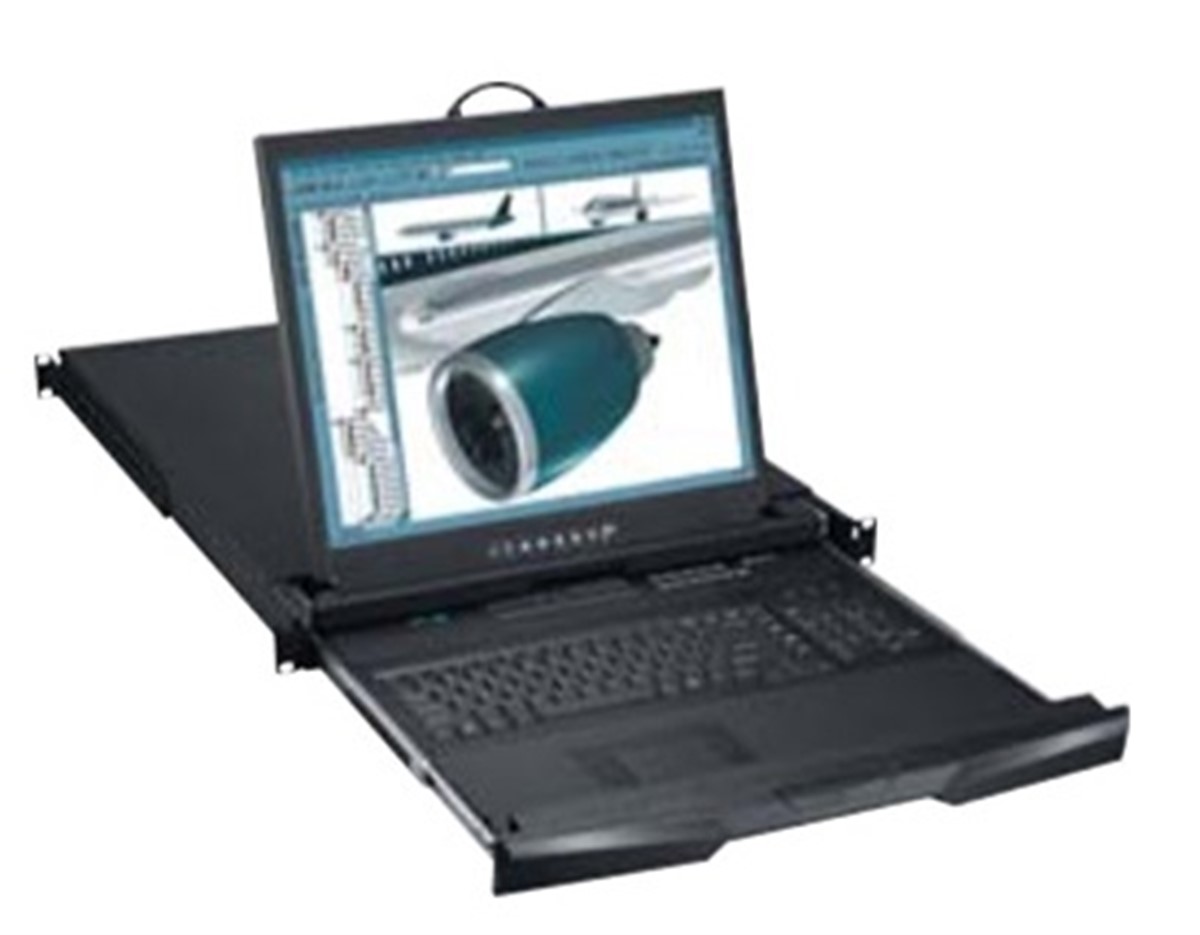

Cyberview 1U Dual Slide LCD console drawer 17" FHD 1920 x 1080 native resolution  DP video input

CyberView provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.

The DF117 is a 1U 17" Full HD rackmount LCD monitor drawer. Austin Hughes 1U Dual Slide LCD console drawer 17" FHD 1920 x 1080 native resolution DP video input.



DF117 Drawer Features and Dispaly Benefits

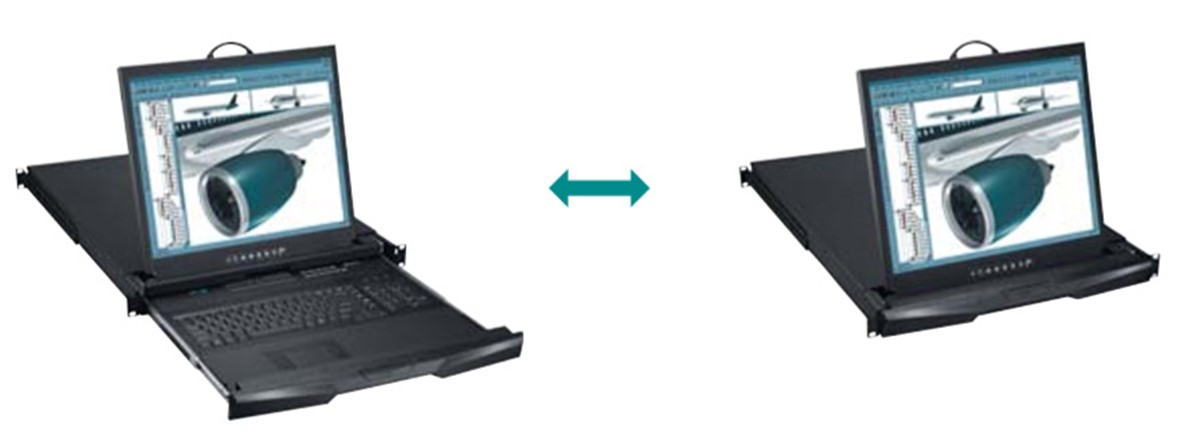

  • 1U dual slide 17" widescreen LCD console drawer
  • Support Full HD with 1080p resolution
  • 104-key keyboard with touchpad
  • SUN Micro or MAC keyboard options availableEnhanced aesthetics with new molded front panel and two point lock

Option Configuration

  • 3G / HD / SD-SDI Broadcast-grade input
  • Audio input & output
  • DC Power: 12, 24, 48, 125 V DC
  • Multiple Integrated KVM Switch options
  • MAC or SUN Micro keyboard options available





DF117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Console w/ KVM 1.73 x 17.4 x 25.6 in.
(44 x 442 x 650 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.4 x 33.9 in.
(140 x 595 x 860 mm.)
Net Weight
Single Console 26.2 lbs. (11.9 kg)
Console w/ KVM 28.4 lbs. (12.9 kg)
Gross Weight
Single Console 39.4 lbs. (17.9 kg)
Console w/ KVM 41.6 lbs. (18.9 kg)
Mounting Distance
Single Console / Console with KVM 26 ~ 34.3 in
(660 ~ 870 mm)
Console Ports
Video Input DP 1.0
Video Option HDMI 1.3 / HDCP 1.1
KB / MS Combo ( USB or PS2 )
DP console
Server end : DP + USB type A

LCD Screen
LCD panel size ( diagonal ) 17.3"
Backlight type LED
Native resolution 1920 x 1080
Brightness (cd/m2) 400
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 600 : 1
Viewing angle ( L/R/U/D ) 80/80/60/80
Viewing angle (H x V) 160° x 140°
Response time ( ms ) 40
Dot pitch ( mm ) 0.1989
Display area ( mm ) 381.888H x 214.812V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 50,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 25W / Max. 55W
Power saving mode Max. 4W / Max. 34W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant
