Ultra Short Depth Console /KVM Switch

KSR-F1417-U801e

Austin Hughes

CyberView F1417-U801 is a Ultra Short Depth 1U 17" 1080P Rack Mount Monitor Drawer with integrated 1-console (1 x local), 8 port Combo Cat6 KVM Switch. The keyboard is a 104 key notepad keyboard with touchpad mouse.

Description
Specification
Downloads
Videos

The new CyberView F1417 is a Ultra Short Depth 1U 17" 1080P Rack Mount Monitor Drawer. RKP14 Series is a combination of keyboard, mouse and monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

F1417 Features and Benefits

1U 17" LCD console drawer
1920 x 1080 native resolution / 16.7M colors ( 8-bit )
HDMI + VGA video input / USB KB / MS
Ultra Short depth design of 400mm (15.7 in.)
Ideal for open rack / short depth rack
104-key keyboard with either touchpad or trackball options
One Man installation design
Enhanced aesthetics with new molded front panel and 2-point lock
6ft combo cable included
Modular for a highly customizable rack console - integrated KVM, peripherals & more

Optional Configurations (Contact us for availability)

DVI-D video input
3G / HD / SD-SDI Broadcast-grade input
DC Power: 12, 24, 48, 110-125 V DC
Multiple integrated KVM Switch options
MAC or SUN Micro keyboard options available
2-post rack mounting brackets ( ORB-2.1 )
Touchscreen: Resistive 1-pt, Projective 10-pt

Combo Cat6 KVM Switch Features & Benefits:

Combo Cat6 KVM with 8 ports in 1U
Up to 40 meters between your servers & KVM ports
Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM

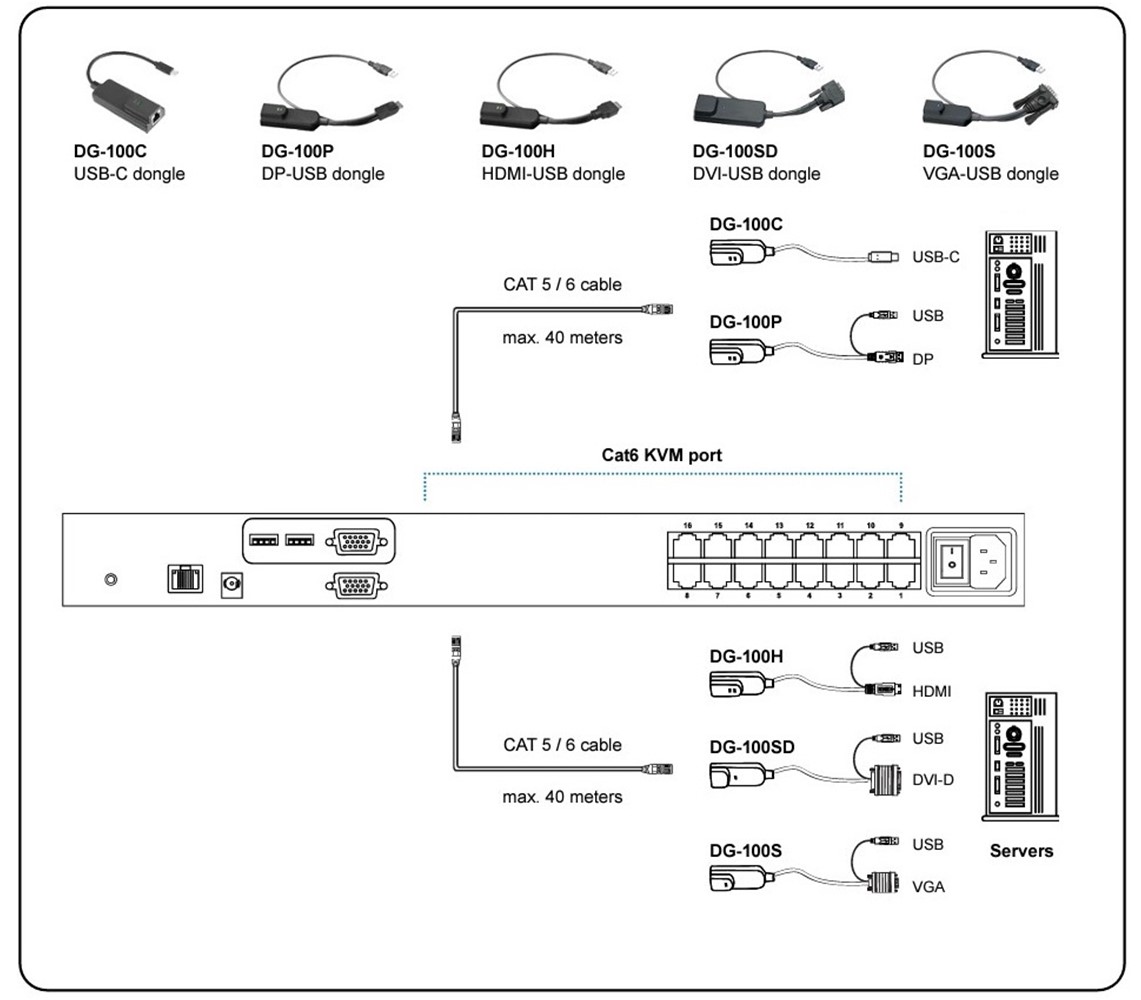

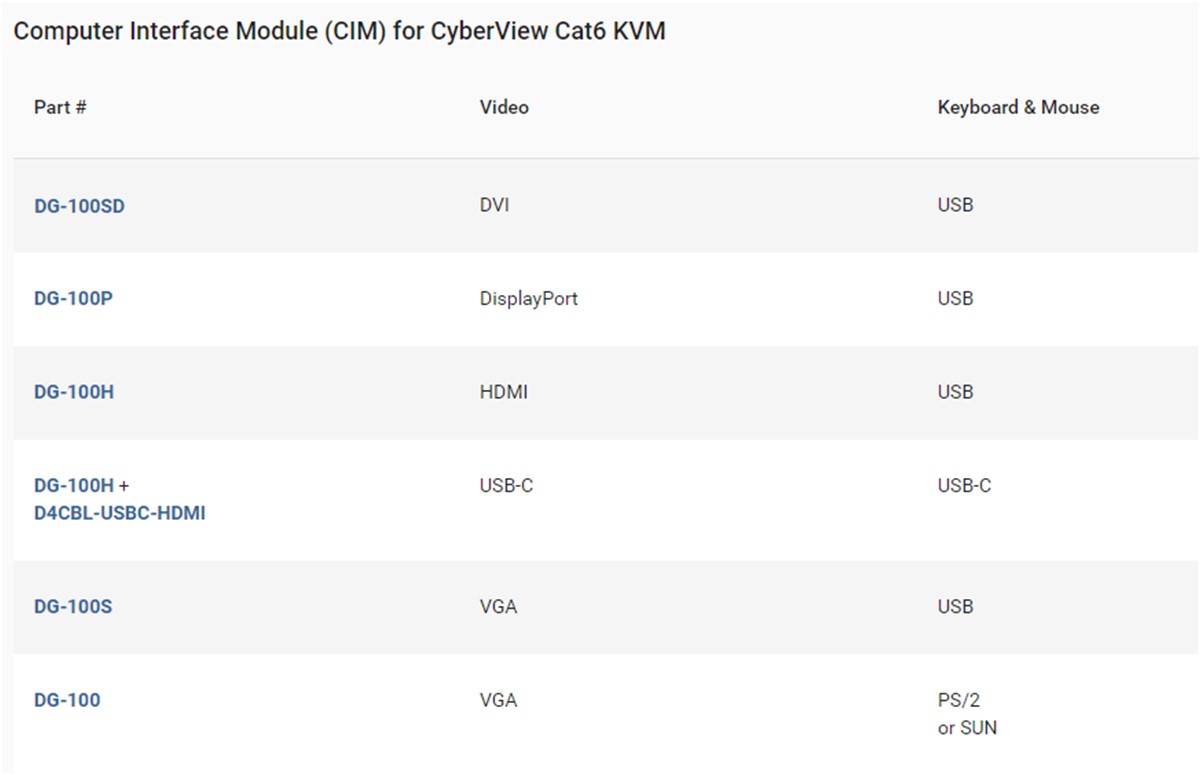

Support USB-C, DP, HDMI, DVI-USB, VGA-USB & VGA-PS/2 server interface
Mix PS/2, USB & SUN with Multi-Platform switch capability
Multi lingual on screen display menu

Cyberview F1417 Specifications

Mechanical

Product Dimensions (H x W x D)

Single Console	1.73 x 17.4 x 15.7 in. (44 x 442 x 400 mm.)
Console w/ KVM	1.73 x 17.4 x 18.1 in. (44 x 442 x 460 mm.)

Package Dimensions (H x W x D)

Single Console /
Console w/ KVM

5.5 x 23.2 x 24.5 in.
(140 x 590 x 622 mm.)

Net Weight

Single Console	18.9 lbs. (8.6 kg)
Console w/ KVM	20.7 lbs. (9.4 kg)

Gross Weight

Single Console	29.9 lbs. (13.6 kg)
Console w/ KVM	33.7 lbs. (15.3 kg)

Mounting Distance

Single Console	16.1 ~ 25.2 inch (410 ~ 640 mm)
Console w/ KVM	16.1 ~ 26.8 inch (410 ~ 680 mm)

Console Ports

Video Input

VGA + HDMI

Video Option

DVI-D

KB / MS

Combo ( USB or PS2 )

VGA console 6ft cable : CB-6

Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A

DVI-D console 6ft cable : CX-6

Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A

LCD Screen

LCD panel size ( diagonal )

17.3"

Backlight type

LED

Native resolution

1920 x 1080

Brightness (cd/m2)

400

Colors

16.7 M, 8-bit

Contrast Ratio (typ)

600 : 1

Viewing angle ( L/R/U/D

80/80/60/80

Response time ( ms )

Dot pitch ( mm )

0.1989

Display area ( mm )

381.888H x 214.812V

Surface treatment

Anti-glare, Hard-coating

Surface hardness

MTBF (hrs)

50,000

Audio Option

Speaker

2x 2W (Dual Stereo)

Input Connector

3.5mm stereo jack

Input Impedance / Power level

30? / 750mV

Output Connector

3.5mm stereo jack

Output Impedance / Power level

30? / 2.8V

Power

Power Input

Auto-sensing 100 to 240VAC, 50 / 60Hz

Power Consumption
(Single Console / with KVM)

Screen on	Max. 29W / Max. 38W
Power saving mode	Max. 9W / Max. 18W
Power button on	Max. 2W / Nil

Environmental

Operating Temperature

0 to 55°C Degree

Storage Temperature

-20 to 60°C Degree

Operating Humidity

20~90%, non-condensing

Relative Humidity

5~90%, non-condensing

Operating Altitude

16,000 ft

Non-operating Altitude

40,000 ft

Shock

10G acceleration (11ms duration)

Vibration

10~300Hz 0.5G RMS random vibration

Regulatory Compliance

EMC

FCC & CE certified

Safety

CE / LVD certified

Environment

RoHS2 & REACH compliant

KVM Switch
KVM Port	8 x RJ-15 connector
KVM Connectivity	USB-C, DP, HDMI, DVI-D, VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable
Local Console	Nil for LCD console drawer version
Expansion	Up to 256 servers by 8-level cascade
Compatibility	Mix PCs, SUN and Mac G3 / G4 Mac / iMac Windows 7 / Vista / 2003 / XP, Linux, Unix
Power	100 or 240V AC at 50 or 60 Hz OR AC / DC power adapter 12V@3.3A (optional)
Environmental	Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory Approval	FCC, CE
