LCD 1280x1024 console drawer

KSR-RKP117-U801e

Austin Hughes

The Cyberview RKP117-U801e is a combination of keyboard, mouse and monitor 1280x1024 with Cat6 KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

Description
Specification
Downloads
Videos

The RKP117-S801 is a combination of keyboard, mouse and 1280x1024 monitor with KVM switch into a drawer, with features such as flip-up design, adjustable brackets, built in LCD OSD to provide effective assistant for an administrator to control multiple PCs.

RKP provides cost effective for your limited IT budget over using CRT and rack mounting. Also, it will be space saving for your compact environment rack and effective assistant for an administrator to control multiple PCs.

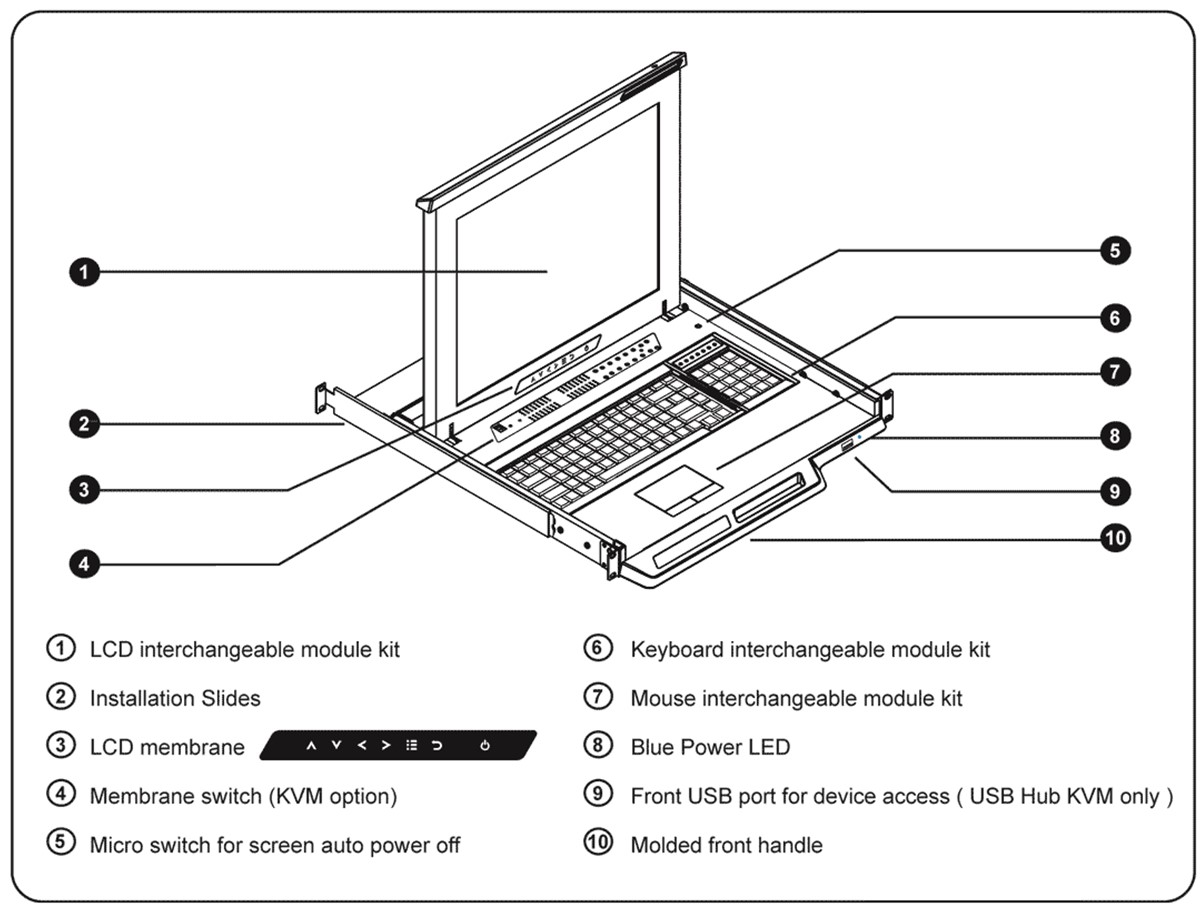

RKP117-S801 Features:

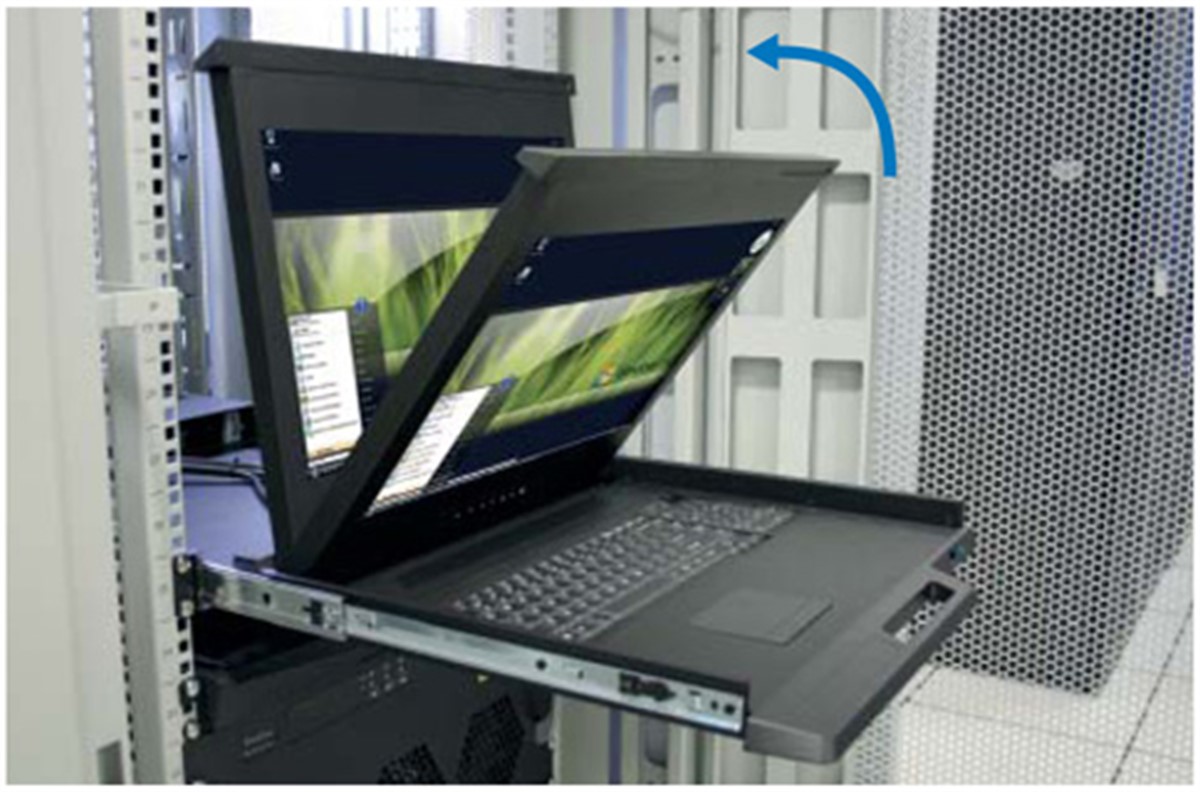

1U 17" TFT LCD console drawer
Two keyboard selections, "e" and "b" support multiple languages
Short depth design of 460mm and 500mm respecitively
Slide rails have fixed position to prevent movement of the keyboard
Front USB port for device access (USB Hub KVM only)
2 post rack mounting available
Advanced Features with KVM:

Cascade for use up to 128 servers.
Name servers up to 16 characters long.
Built-in microprocessor emulation for each port boots up process.
Hot Pluggable - Add PCs or Remove Connected PCs for Maintenance without powering down the PS/2 KVM switch or PCs.

RKP117-U801 Specifications:

Mechanical
Height	1.73 in. (4.39 cm.)
Width	17.4 in. (44.2 cm.)
Depth	18.1 in. (45.9 cm.)
Weight	26 lbs. (12 kg.)
Package Dimensions (H x W x D)	5.5 x 23.2 x 31.8 in. (13.9 x 58.9 x 80.7 cm.)
Package Weight	36.5 lbs. (16.6 kg.)
LCD Panel
Size	17" TFT
Resolution	1280x1024
Brightness (cd/m2)	250
Colors	16.7 M
Contrast Ratio (typ)	1000:1
Viewing angle (H/V)	160° x 160°
Active area (mm)	338 x 270
Signal Input	VGA
Environmental
Operating temperature	0 to 50°C Degree
Storage temperature	-5 to 60°C Degree
Relative Humidity	5~90%, non-condensing
Shock	10G acceleration (11ms duration)
Vibration	5~500Hz 1G RMS random vibration
Power	Auto-sensing 100 to 240VAC, 50 / 60Hz

KVM Port	8 x RJ-15 connector
KVM Dongle	DVI-D / VGA connector dongle up to 40 meters (132 feet) Cat6 / Cat5 cable
Local Console	1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS
Expansion	Support mixed Combo Cat6 or Combo DB-15 KVM, up to 256 servers
Compatibility	Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
Power	100~240VAC, 50 / 60Hz 0.3A via IEC type cord (12V / 24V / 48V DC input option)
Environmental	Operating / Storage : 0 to 50°C / -5 to 60°C Relative humidity : 90%, non-condensing Shock : 50G peak acceleration ( 11 ms, half-sine wave ) Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory Approval	FCC, CE
