KSR-X117-1201De

Austin Hughes

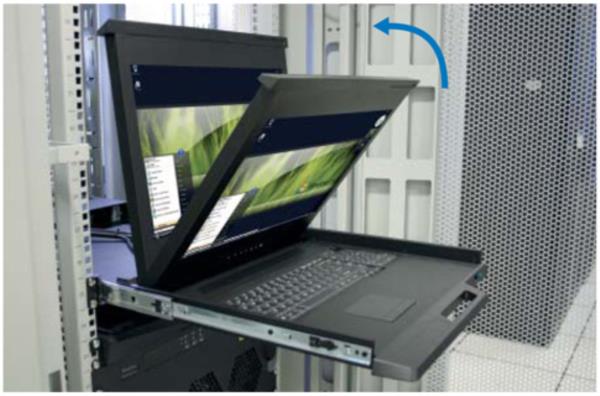

The X117-1201De is a 1U Rackmount LCD Monitor with ultra high resolution 17" LCD console drawer with the Cyberview CV-1201D is a single-user, 12-port DVI-D KVM switch. Mix and match operating systems with this multiplatform KVM to control PC, Mac and Sun servers running Windows 7, OSX and Linux.

The X117-1201De is a 1U Rackmount LCD Monitor with ultra high resolution 17" LCD console drawer with the Cyberview CV-1201D is a single-user, 12-port DVI-D KVM switch. Mix and match operating systems with this multiplatform KVM to control PC, Mac and Sun servers running Windows 7, OSX and Linux.  The keyboard is a 104 key notepad keyboard with touchpad or trackball.



The Cyberview CV-1201D is a single-user, 12-port DVI-D KVM with audio for USB 3.0/2.0/1.1 enabled servers. The CV-1201D features a slim, rack mountable 1U chassis (mounting set w/ bracket & screws included) and allows an administrator to control up to 12 DVI-D servers from one keyboard, mouse and monitor setup. Mix and match operating systems with this multiplatform KVM to control PC, Mac and Sun servers running Windows 7, OSX and Linux. With the included 4-in-1 KVM cables, the CV-1201D makes an attractive solution to control your high-def DVI-D servers at up to 1920x1200 resolution.

NOTE: Qty x 6 CI-6 cables and rack mounting kit are included

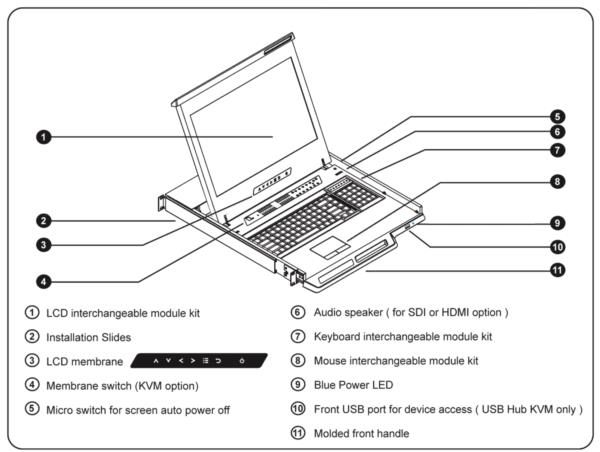

X117 Features & Benefits:

  • 1U 17" widescreen LCD console drawer with VGA, DVI-D and HDMI w/speaker
  • 1920 x 1200 native WUXGA ultra high resolution
  • PIP & Picture by Picture viewing efficiency
  • 104-key keyboard with either touchpad or trackball
  • SUN Micro or MAC keyboard options available
  • New enhanced aesthetics with molded front handle
  • Front USB port for device access (USB Hub KVM only)
    2 post rack mounting available

CV-1201D Features:

  • Affordable 12-port DVI-D KVM with USB and audio
  • Includes 6 x CI-6 Combo 4-in-1 KVM Cables (6' in length)
  • Single Link DVI-D supports resolutions up to 1920 x 1200
  • Support widescreen & native SUN 1152 x 900 resolution
  • Multi-platform for PCs, SUN and Mac G3 / G4 Mac / iMac
  • Hot pluggable, no software or drivers required
  • Support for VESA DDC2B emulation & TMDS signal pass-through
  • DC power options available (please call)
  • 2 Year Warranty

Console Port

Video input

DVI-D console 6ft cable : CX-6A

USB interface

Drawer end : DVI-D + USB type A x 2

Server end : DVI-D + USB type A x 2

X117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 18.9 in.
(44 x 442 x 480 mm.)
Console w/ KVM 1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console 24 lbs. (10.9 kg)
Console w/ KVM 26.6 lbs. (12.1 kg)
Gross Weight
Single Console 34.8 lbs. (15.8 kg)
Console w/ KVM 39.8 lbs. (18.1 kg)
Mounting Distance
Single Console 19.3 ~ 28.3 inch
(490 ~ 720 mm)
Console w/ KVM 19.3 ~ 31.5 inch
(490 ~ 800 mm)
Console Ports
Video Input HDMI 1.3 + DVI-D single link + VGA
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal ) 16.2"
Backlight type LED
Native resolution 1920 x 1200
Brightness (cd/m2) 300
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 800 : 1
Viewing angle ( L/R/U/D ) 89 / 89 / 89 / 89
Response time ( ms ) 30
Dot pitch ( mm ) 0.191
Display area ( mm ) 343.8H x 214.9V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 20,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 34W / Max. 59W
Power saving mode Max. 4W / Max. 29W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant

The X117 series is also known as the X-117. The X117e comes with an integrated touchpad, while the X117b comes with an integrated trackball.

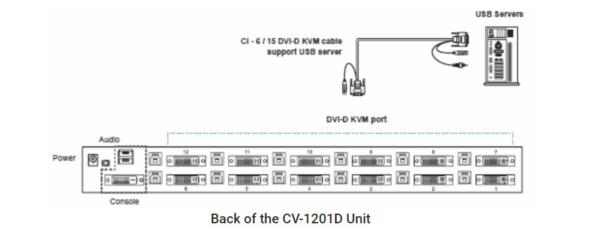

CV-1201D Specifications:

Mechanical
Width 17.4 in. (44.3 cm.)
Height 1.72 in. (4.36 cm.)
Depth 6.7 in. (17.1 cm.)
Weight 6.5 lbs. (3 kegs.)
KVM Port 12 x DVI-D
KVM Connectivity DVI-D/USB 3.0 Connector
Combo 4-in-1 KVM Cable, 6 or 15 feet
Local Console 1 x DVI-D (up to 1920x1200)
2 x USB Type A for KB & MS
1 x 3.5mm Stereo Audio
Management Front push button or keyboard hotkey
Compatibility Mix PC, SUN, MAC G3/G4/iMac, IBM, HP, DELL
Windows 7/ Vista/ 2003/ XP/ 2000, Linux, Unix
Power 100-240VAC, 50/60Hz 0.3 via IEC type cord
(Optional 12V, 24V, 48V DC input available)
Regulatory Approval FCC, CE
Environmental
Operating/Storage 0 to 50C / -5 to 60C
Relative Humidity 90%, non-condensing
Shock 50G peak acceleration (11ms, half-sine wave)
Vibration 58-100Hz/0.98G (11min/cycle)

CV-1201D KVM Hot Key Sequences

Function Hot Key Sequence
Previous Port [Scr Lock] [Scr Lock] [Up]
Next Port [Scr Lock] [Scr Lock] [Down]
Specific Port [Scr Lock] [Scr Lock] [Port #]
AutoScan for PC's [Scr Lock] [Scr Lock] + [S]
Enable/Disable Beeper Sound [Scr Lock] [Scr Lock] [B]
