KSR-X117-U801e

Austin Hughes

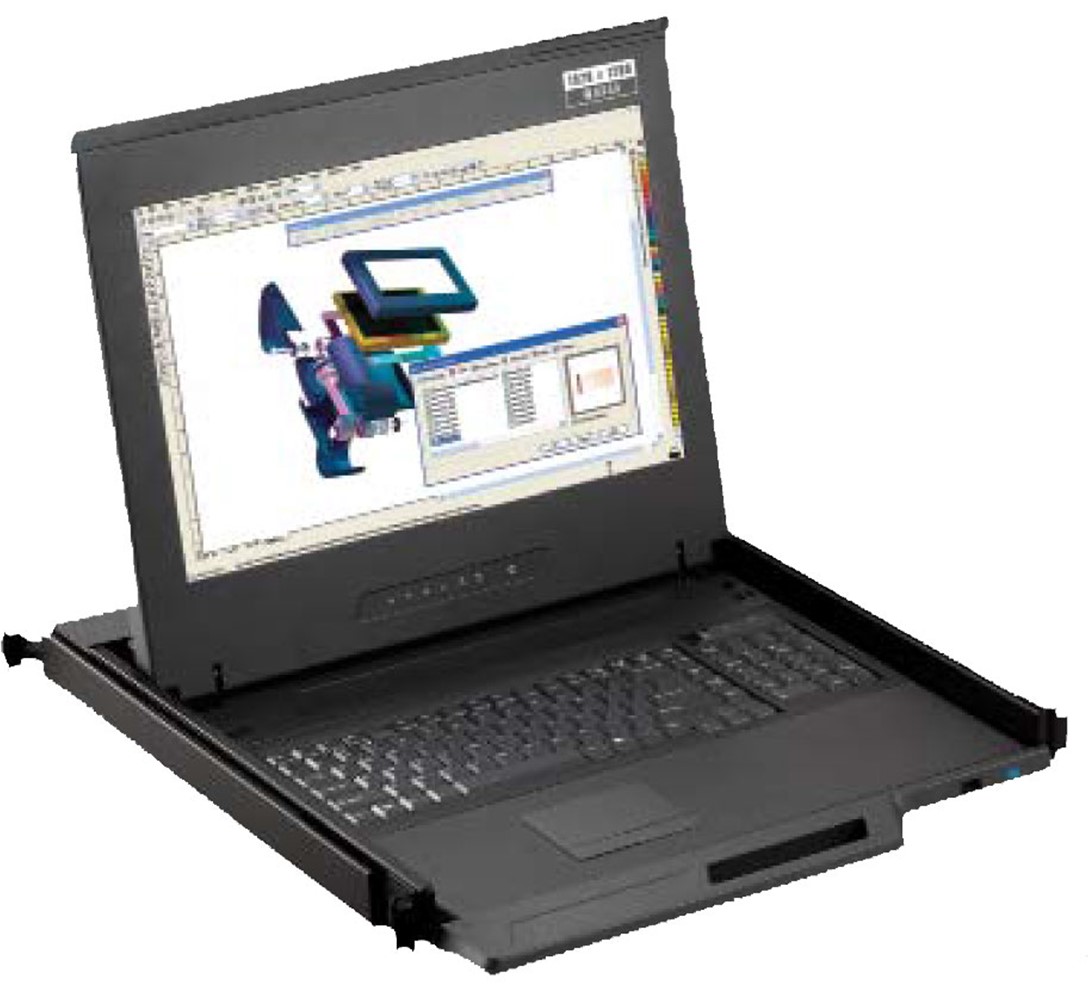

Cyberview X117-U801E LCD Console Drawer with KVM 1920 x 1200, 16.2 LCD Screen, US Keyboard, Touchpad mouse, 8 port CAT6 KVM switch

Cyberview X117-U801E LCD Console Drawer with KVM 1920 x 1200, 16.2 LCD Screen, US Keyboard, Touchpad mouse, 8 port CAT6 KVM switch


Features

  • 1920 x 1200 WUXGA Native Resolution / 16.7M Colors (8-Bit)
  • VGA Video Input / USB KB / MS
  • Short Depth Design Of 480mm / 19"

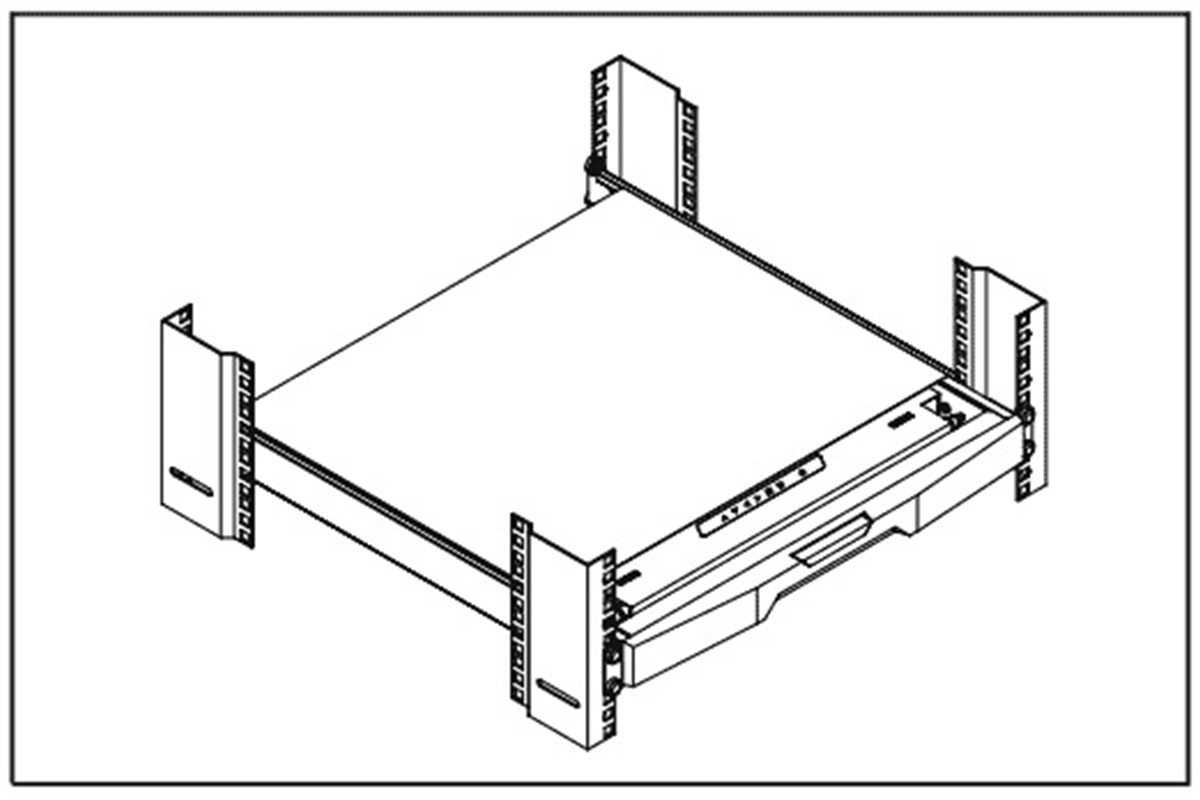

  • One Man Installation Design
  • New Enhanced Aesthetics With Molded Front Handle
  • 2-Year Standard Warranty (Upgradable Up To 5 Years)
  • Mounting Distance: 490-720mm / 19.3"-28.3"
  • Mounting Distance w/KVM: 490-800mm / 19.3"-31.5"
  • 1 Local Console & KVM Ports Support Resolution Up To 1920 x 1200
  • Multi-Platform For PC, Server, Bladee Server & SUN/MAC
  • Port Switching Via OSD, Front Button & Keyboard Hotkeys
  • Multi Lingual OSD Menu
  • Hot Pluggable, No Software Or Drivers Required
  • Requires (8) Dongles





X117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 18.9 in.
(44 x 442 x 480 mm.)
Console w/ KVM 1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console 24 lbs. (10.9 kg)
Console w/ KVM 26.6 lbs. (12.1 kg)
Gross Weight
Single Console 34.8 lbs. (15.8 kg)
Console w/ KVM 39.8 lbs. (18.1 kg)
Mounting Distance
Single Console 19.3 ~ 28.3 inch
(490 ~ 720 mm)
Console w/ KVM 19.3 ~ 31.5 inch
(490 ~ 800 mm)
Console Ports
Video Input HDMI 1.4 + DVI-D single link + VGA
KB / MS Combo ( USB or PS2 )



LCD Screen
LCD panel size ( diagonal ) 16.2"
Backlight type LED
Native resolution 1920 x 1200
Brightness (cd/m2) 300
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 800 : 1
Viewing angle ( L/R/U/D ) 89 / 89 / 89 / 89
Response time ( ms ) 30
Dot pitch ( mm ) 0.191
Display area ( mm ) 343.8H x 214.9V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 20,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 34W / Max. 59W
Power saving mode Max. 4W / Max. 29W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant

The X117 series is also known as the X-117. The X117e comes with an integrated touchpad, while the X117b comes with an integrated trackball.

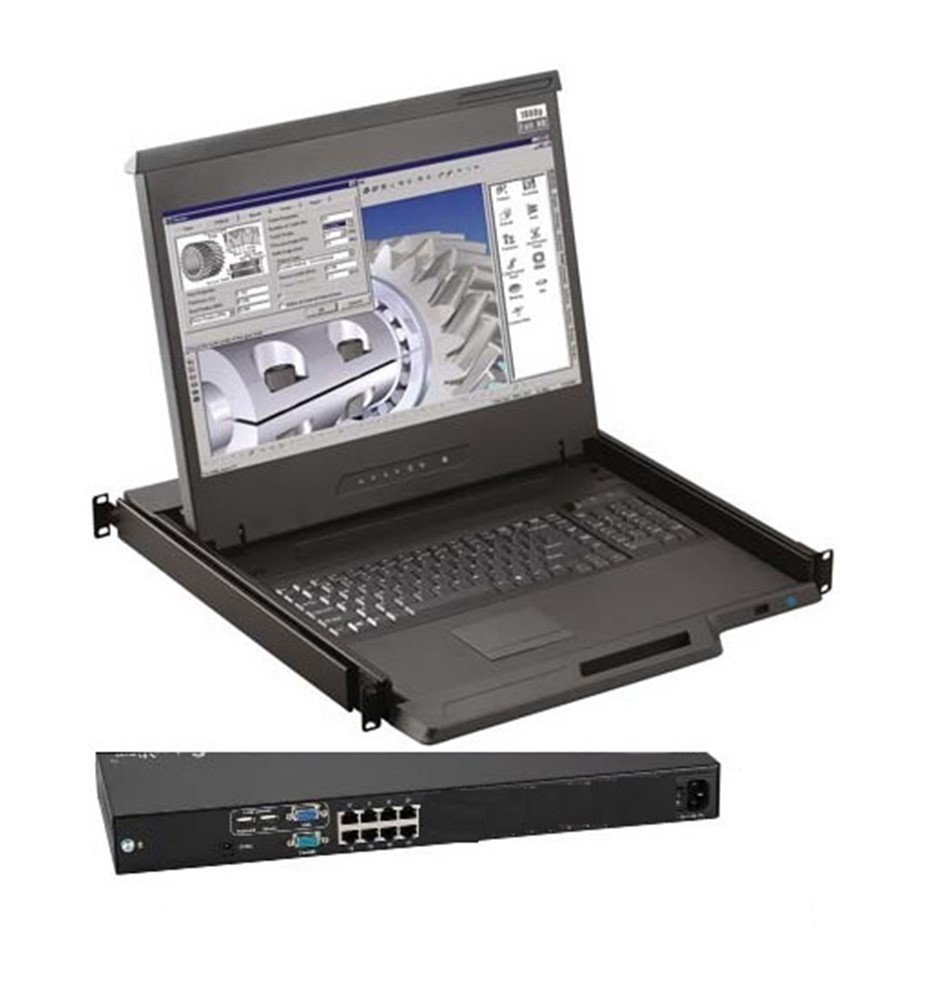

KVM Switch
KVM Port 8 x RJ-15 connector
KVM Connectivity DP / HDMI / DVI-D / VGA connector dongle up to 40 meters (132 feet)
via Cat6 / Cat5 cable
Local Console Nil for LCD console drawer version
Expansion Up to 256 servers by 8-level cascade
Compatibility Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Windows 7 / Vista / 2003 / XP, Linux, Unix
Power 100 or 240V AC at 50 or 60 Hz OR AC / DC power adapter 12V@3.3A (optional)
Environmental Operating / Storage : 0 to 50°C / -5 to 60°C
Relative humidity : 90%, non-condensing
Shock : 50G peak acceleration ( 11 ms, half-sine wave )
Vibration : 58~100Hz / 0.98G ( 11 ms/ cycle)
Regulatory Approval FCC, CE



Your Price P.O.A.
Availability : 10 - 14 Days
