KSR-X117e-TRB

Austin Hughes

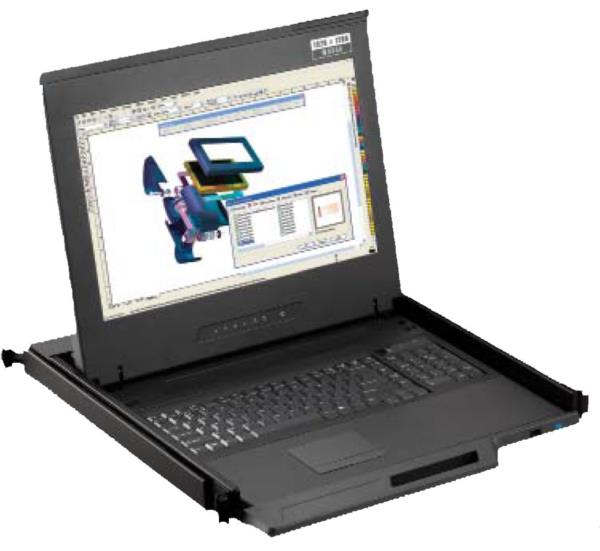

Cyberview X117 is a 1U 17" widescreen rackmount LCD monitor HDMI / DVI-D / VGA input with Touchscreen and Keyboard.

The Cyberview X117 is a 1U 17" widescreen rackmount LCD monitor with Touchscreen and Keyboard.   Features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The X117 series provides a cost effective rackmount KVM solution for your limited IT budget in a space saving, highly customizable package.

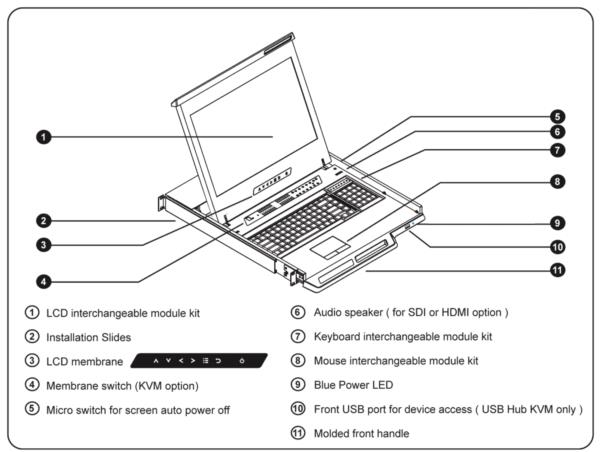

Drawer Features and Display Benefits

  • 1U 17" widescreen LCD drawer with HDMI / DVI-D / VGA input
  • 1920 x 1200 native WUXGA Ultra high resolution
  • Support Full HD with 1080p resolution
  • PIP & Picture by Picture viewing efficiency
  • Green LED-backlit panel technology
  • Enhanced aesthetics with molded front panel and two point lock
  • Touchpad mouse & Keyboard
  • Resistive Tocuhscreen
  • Short depth design of 480mm ( 18.9" ) only

X117 Specifications

Mechanical
Product Dimensions (H x W x D)
Single Console 1.73 x 17.4 x 18.9 in.
(44 x 442 x 480 mm.)
Console w/ KVM 1.73 x 17.4 x 22.8 in.
(44 x 442 x 580 mm.)
Package Dimensions (H x W x D)
Single Console /
Console w/ KVM		 5.5 x 23.2 x 31.8 in.
(140 x 590 x 808 mm.)
Net Weight
Single Console 24 lbs. (10.9 kg)
Console w/ KVM 26.6 lbs. (12.1 kg)
Gross Weight
Single Console 34.8 lbs. (15.8 kg)
Console w/ KVM 39.8 lbs. (18.1 kg)
Mounting Distance
Single Console 19.3 ~ 28.3 inch
(490 ~ 720 mm)
Console w/ KVM 19.3 ~ 31.5 inch
(490 ~ 800 mm)
Console Ports
Video Input HDMI 1.3 + DVI-D single link + VGA
KB / MS Combo ( USB or PS2 )
VGA console 6ft cable (CB-6)
--OR--
DVI-D console 6ft cable (CX-6)
Drawer end : DB-15 ( VGA + USB KB / MS )
Server end : VGA + USB type A
Drawer end : DVI-D + DB-15 ( USB KB / MS )
Server end : DVI-D + USB type A
LCD Screen
LCD panel size ( diagonal ) 16.2"
Backlight type LED
Native resolution 1920 x 1200
Brightness (cd/m2) 300
Colors 16.7 M, 8-bit
Contrast Ratio (typ) 800 : 1
Viewing angle ( L/R/U/D ) 89 / 89 / 89 / 89
Response time ( ms ) 30
Dot pitch ( mm ) 0.191
Display area ( mm ) 343.8H x 214.9V
Surface treatment Anti-glare, Hard-coating
Surface hardness 3H
MTBF (hrs) 20,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
(Single Console / with KVM)
Screen on Max. 34W / Max. 59W
Power saving mode Max. 4W / Max. 29W
Power button on Max. 1W / Nil
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant





Model  TRB e-Resistive

Technology   5-Wire

Touch Point  Single

Method  Stylus or Finger

Activation Force  ≤ 50g / Stylus=R0.8

Durability  10 million touches

Response Time  15 ms

Optical Transmittance 80% ± 3%

Surface Hardness  3H

Haze  8% ± 3%

Glass  2.2 ±0.2 mm

Connector USB Type A

Compatibility  Windows 7 / XP / Vista, Linux
