KVM-CV-801D

Austin Hughes

CyberView CV-801D is a single-user, 8-port, 2K KVM with support for HDMI and DVI-D enabled servers at up to 2560 x 1440 (60Hz) resolution.


CyberView CV-801D is a single-user, 8-port, 2K KVM with support for HDMI and DVI-D enabled servers at up to 2560 x 1440 (60Hz) resolution.



  • 2K KVM with (8) HDMI 1.4 + USB ports in 1U

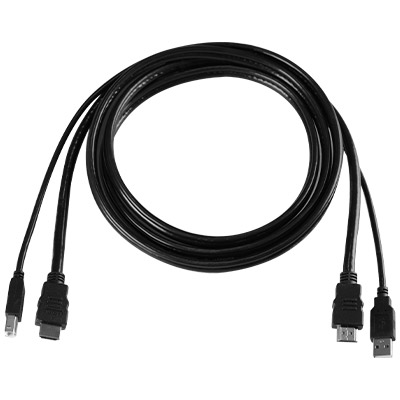

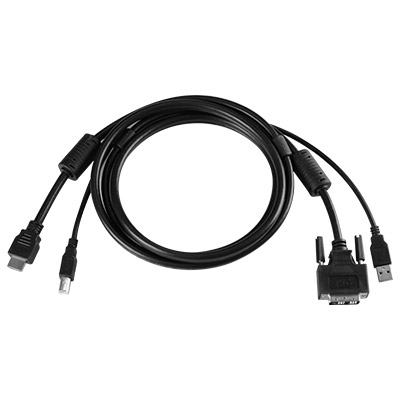

  • 2K KVM cables support DVI-D & HDMI video input
  • Local console & KVM ports support resolution 2K and 1080p
  • Multi-platform for PC, server, blade server & SUN / MAC
  • Port switching via front button & keyboard hotkeys
  • Hot pluggable, no software or drivers required



Options:   DC power : 12V / 24V / 48V / 125V

CV-801D Specifications

Product Series 2K KVM Switch

Form Factor 1U Rackmount, Desktop, KVM module for LCD Console Drawer

KVM Switch Ports 8 Port

Local Users 1 Local User

Extended Remote Users 0 Extended Users

Global IP Users 0 IP Users

Port Connector HDMI + USB

Video Connections HDMI, DVI-D

Max. Resolution KVM Port: 2560 x 1440 @60Hz
Local Console: 2560 x 1440 @60Hz

Keyboard & Mouse Connection  USB

Audio Connection None

Integrated USB Hub None

Cascade None

Single/Dual Feed Power Single Feed

Compliance CE, FCC, REACH, RoHS3

Dimensions 171 × 443 × 44 mm
