Multi-User Cat6 KVM

KVM-MU-3203

Austin Hughes

The CyberView MU-3203 is a 32 port Multi-User Cat6 KVM Switch for USB-C, DP, HDMI, DVI-D, & VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Matrix KVM features 3 x consoles – 1 x local, 2 x remote extended.

Description
Specification
Downloads
Videos

Benefits

Cat6 KVM with 32 ports in 1U
Simultaneous & independent access from 3 consoles (1 Local, 2 Extended)

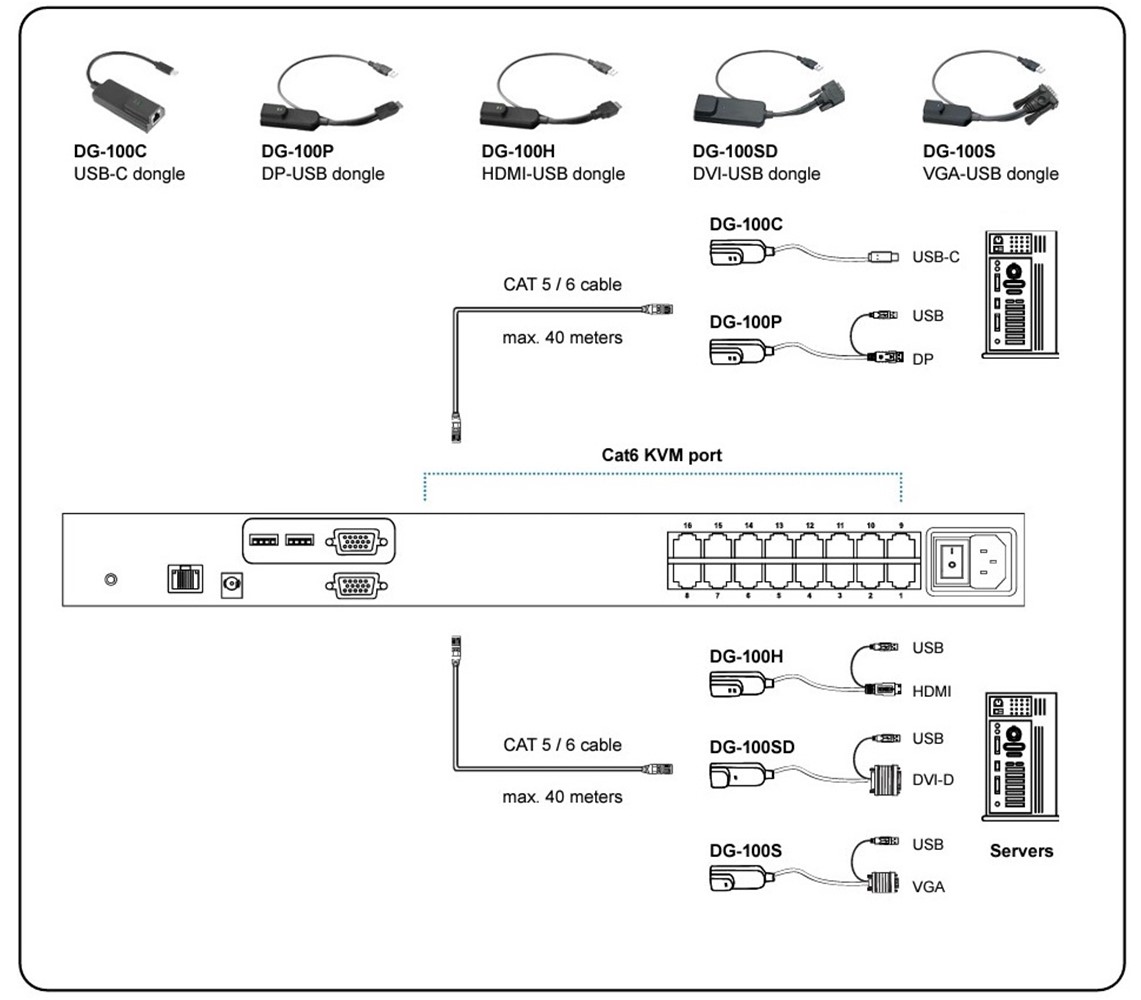

Cat6 dongle available for USB-C, DP, HDMI, DVI-D or VGA video input
High definition video support with resolutions up to 1920 x 1080
Multi-platform for PC, server, Blade Server & SUN / MAC
Port switching via OSD, front button & keyboard hotkeys
Multi lingual OSD menu
Hot pluggable, no software or drivers required
Cascade levels up to 8 KVM switches

MU-3203 Features & Benefits

Efficient system management with simultaneous multi-user access
Capable of connecting 32 servers per device in 1U
Support HDMI, DisplayPort, DVI, VGA-USB and VGA-PS/2 server interface
Increased distance of 132ft (40m) between your server and KVM switch
Enhanced Cat6 cable management with remote access over 1000ft (300m)
Provides a diversity of consoles to access servers independently and simultaneously
Use of the RJ45 Cat6 interface allows for a higher number of ports in smaller density
Greater distances between your switch and servers allow enhanced data center rack layouts
Multi-lingual on screen display menu
Advanced user profiles and configurable OSD hot key combinations

MU-3203 Specifications

Mechanical
Height	1.73 in. (44 mm.)
Width	17.4 in. (443 mm.)
Depth	6.7 in. (171 mm.)
Weight	6.5 lbs. (3 kg.)
Environmental
Operating/Storage Temperature	0 to 55°C / -20 to 60°C
Relative Humidity	20-90%, non-condensing
Shock	10G acceleration (11ms duration)
Vibration	5~500Hz / 1G RMS random vibration
Power	100~240VAC, 50/60Hz 0.5A via AC / DC cord
KVM
Ports	32 x RJ45 connector
KVM Dongle	DVI-D / VGA connector dongle up to 132 ft. Cat6/Cat5 cable
Simultaneous Console Access
Local	1 x DB-15 VGA (up to 1600 x 1200), 2 x USB to KB & MS
Remote (2)	2 x RJ45, up to 1000 ft. Cat6 cable
Remote Receiver (2)	1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS 1 x KVM port for connecting to an extra PC
Expansion	Support mixed DB-15 or RJ45 Matrix KVM, up to 256 servers
Compatibility
Hardware	Mix PCs, SUNs, MACs, IBMs, HPs, DELLs servers
Operating Systems	Windows Vista / 2003 / XP / 2000, Linux, Unix, Mac OS
Regulatory Approval	cUL, FCC, CE, RoHS2, REACH
