Matrix Multi-User Cat6 IP KVM Switch

KVM-MUIP-3224

Austin Hughes

The CyberView MU-IP3224 is a 32 port Multi-User Cat6 KVM Switch for USB-C, DP, HDMI, DVI-D, & VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Matrix KVM features 4 x consoles – 1 x local, 2 x network IP, 1 x remote extended.

Description
Specification
Downloads
Videos

Benefits

Cat6 KVM with 32 ports in 1U
Simultaneous & independent access from 4 consoles (1 Local, 2 IP, 1 Extended)

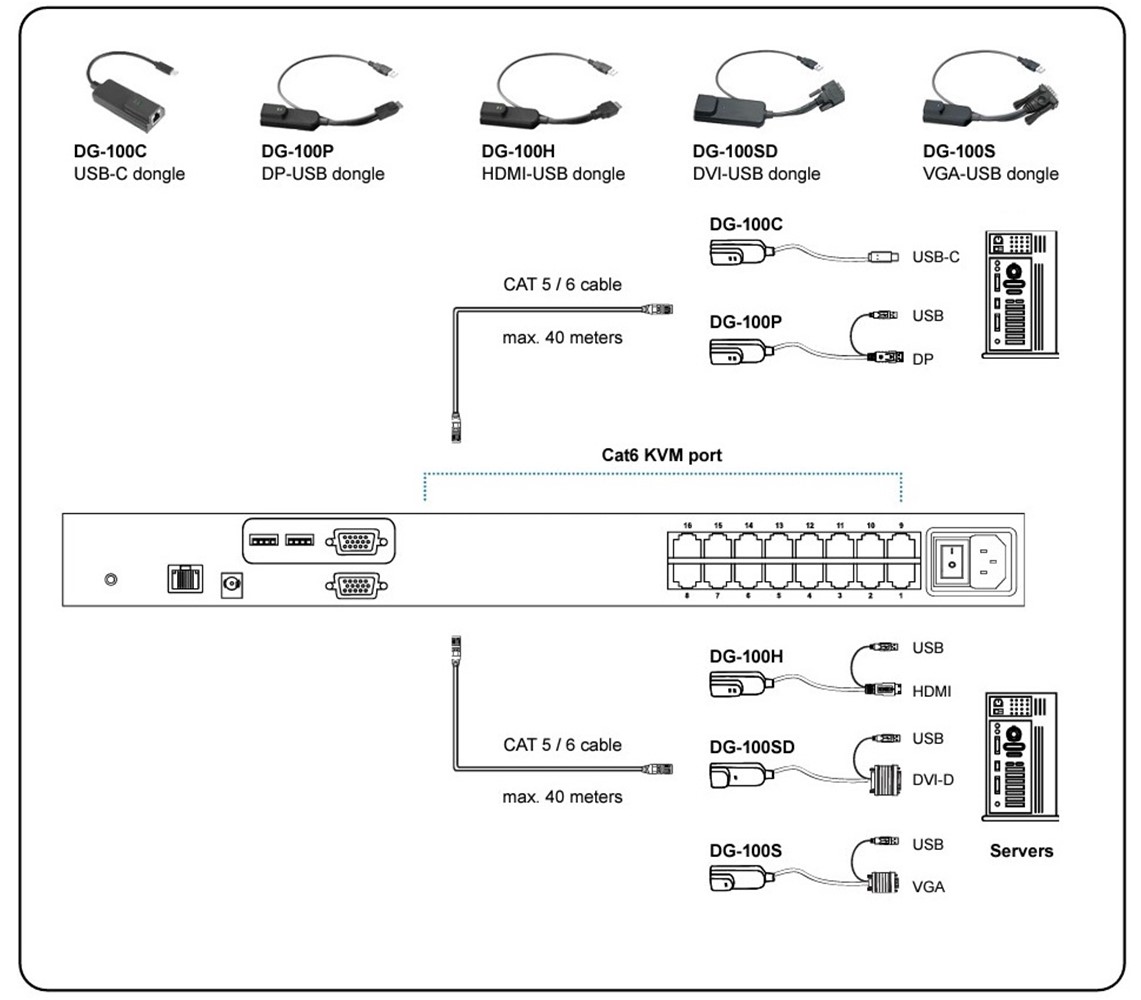

Cat6 dongle available for USB-C, DP, HDMI, DVI-D or VGA video input
High definition video support with resolutions up to 1920 x 1080
Multi-platform for PC, server, Blade Server & SUN / MAC
Port switching via OSD, front button & keyboard hotkeys
Multi lingual OSD menu
Hot pluggable, no software or drivers required
Cascade levels up to 8 KVM switches

MU-IP3224 Features & Benefits

Secure IP remote user access across the internet
Efficient system management with simultaneous multi-user access
Capable of connecting 32 servers per device in 1U
Support HDMI, DisplayPort, DVI, VGA-USB & VGA-PS/2 server interface
Up to 130 feet (40 meters) between your server & KVM switch
Enhanced Cat6 cable management with remote access over 985ft (300m)
Provide a diversity of consoles to access servers independently and simultaneously
Use of the RJ45 Cat6 interface allows for a higher number of ports in smaller density
Greater distances between your switch and servers allow enhanced data center rack layouts
Multi-lingual on screen display menu
Advanced user profiles and configurable OSD hot key combinations

MU-IP3224 Specifications

Mechanical
Height	1.73 in. (44 mm.)
Width	17.6 in. (448 mm.)
Depth	7.1 in. (180 mm.)
Weight	9 lbs. (4 kg.)
Environmental
Operating Temperature	0 to 50°C / -5 to 60°C
Relative Humidity	90%, non-condensing
Shock	50G peak acceleration (11 ms, half-sine wave)
Vibration	58~100Hz / 0.98G (11 ms/cycle)
Power	100~240VAC, 50 / 60Hz 0.5A via AC / DC cord
KVM Port	32 x RJ45 connector
Simultaneous Console Access
Local	1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS
Remote (1 or 2)	1 x RJ45, up to 1000ft (300 meters) Cat6 / Cat5 cable
IP Access (1 or 2)	1 x RJ45 Ethernet, 1 x DB-9 serial & 1 x USB port
IP Security	SSL v3, RSA, AES, CSR, http & https internet access 15-user login (1 x active user)
Remote Receiver (1, 2 or 3)	1 x DB-15 VGA (up to 1600 x 1200), 2 x USB for KB & MS, 1 x KVM port for connecting to extra PC
Expansion	Support mixed DB-15 or RJ45 Matrix KVM, up to 256 servers
Compatibility	Mix PCs, SUNs, MACs, IBMs, HPs, DELLs server Windows Vista / 2003 / XP / 2000, Linux, Netware, Unix
Regulatory Approval	FCC, CE

MU-IP3224 KVM Hot Key Sequences

Function	Hot Key Sequence
Calling OSD Menu	[Scr Lock] [Scr Lock] [Space Bar] Right Mouse + [Esc]
Previous Port	[Scr Lock] [Scr Lock] [Up]
Next Port	[Scr Lock] [Scr Lock] [Down]
Previous/Next Bank	[Scr Lock] [Scr Lock] + [PgUp/PgDn]
Switch to Specific Port	[Scr Lock] [Scr Lock] + Bank # + Port #
Buzzer On/Off	[Scr Lock] [Scr Lock] [B]
Logout (Password Security Must Be On)	[Scr Lock] [Scr Lock] [P]
Advanced HotKeys (For Supervisor Login Only)
AutoScan Mode	[Scr Lock] [Scr Lock] [S]
Reset Factory Defualts	[Scr Lock] [Scr Lock] [R]
Disable/Enable Password Security	[Scr Lock] [Scr Lock] [U]
Enable/Disable Screen Saving	[Scr Lock] [Scr Lock] [L]
Remote Console HotKeys
Toggle Remote/Local Port	[Scr Lock] [Scr Lock] [C]
Buzzer On/Off	[Scr Lock] [Scr Lock] [Q]
AutoScan Mode	[Scr Lock] [Scr Lock] [S]
Auto Adjust Video Signal	[Scr Lock] [Scr Lock] [A]
