RP-717

Austin Hughes

The RP717 is a 7U 17" rackmount LCD monitor, 1280 x 1024 resolution with HDMI and VGA inputs.


RP717 Cyberview 7U 17" Rackmount LCD Monitor

These rack mount LCD monitors come with industrial grade Samsung LCD which provides users with crisp and clear image.

These 7U 17" Rackmount LCDs are cost effective and save you valuable Rack space.

Rackmount LCD units support simple plug and play functionality.

Product Features

  • Video resolution 1280 x 1024
  • Ideal for CCTV security & industrial control
  • Stylish 6mm cast aluminium front panel
  • 17" LCD in 7U  with VGA and HDMI inputs
  • Quad display optional
  • Touch screen optional
  • 12V, 24V and 48V DC Power options available
  • AV + BNC, Audio and DVI options available
  • NEMA 4 and IP65 options for front protection available



Please Note:

Engineering change effective 1st July 2023 on this model.

Standard video input : VGA + DVI-D will be changed to VGA + HDMI

If require a DVI-D video input on this KVM Console, it will be as optional to upgrade change.





LCD
Industrial Grade Samsung LCD Panel
Max Resolution
1280 x 1024
Brightness (cd/m²)
300
Color Support
16.7 m
Contrast Ratio (typ.)
1000:1
Viewing Angle (H/V)
160° x 160°
Display Area (mm)
338 x 270
Tr Response Time (ms)
1.3
LCD Panel MTBF (hrs)
50,000
Plug & Play DDC
EDID 1.3
Power Input
Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Max 48 watts, standby 5 watts
Regulatory Approvals
FCC, CE
Environmental
Operation
0° to 50°C Degree
Storage
-5° to 60°C Degree
Relative Humidity
5-90%, Non-condensing
Shock
10G Acceleration (11ms duration)
Vibration
5-500Hz 1G RMS random vibration

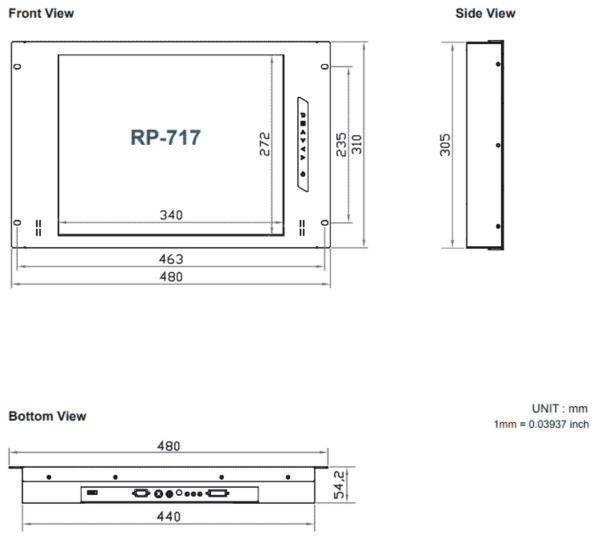

Dimensions
Product (WXDXH)
18.9 x 2.2 x 12.2 inches
Packaging (WXDXH)
22.2 x 17.7 x 6.1 inches
Weight

Net
15 lbs
Gross
19 lbs Options

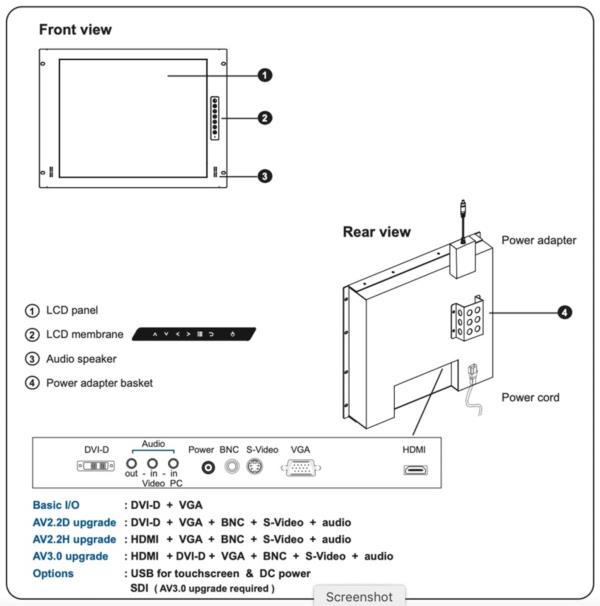

Additional Options
Graphic Input
HDMI, Audio, BNC, S-Video & Quad display input
DC Power
DC power input with 12V, 24V, 48V selection
Touchscreen Options
Resistive and Capacitive (USB or Serial)
Audio
3.5mm audio plug
NEMA 4 / IP65
4mm thickness of protective glas
