RP-920

Austin Hughes

The RP920 is a 9U 20" rackmount LCD monitor, HDMI/VGA inputs,  with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs.   DC powered 24V

The RP920 is a 9U 20" rackmount LCD monitor with features such as a built in LCD OSD to provide effective assistance for an administrator to control multiple PCs. The RP series provides a cost effective rackmount monitor solution for your limited IT budget in a space saving, highly customizable package.





RP-920 Features

9U 20" rackmount LCD with HDMI/VGA input
Ultra high resolution 1600x1200 for RP-920
Ideal for CCTV security and industrial control

Available upgrade options

3G/HD/SD-SDI Broadcast-grade input
MCS Multi-display control solution
20" Touchscreen: Resistive
S-Video + Composite (BNC) or Audio input
HDMI or DVI-D (Either one for AV2.2 upgrade)
DC power: 12V/24V/48V/110~125V
MIL-type or lockable connector

RP-920 Specifications

Mechanical

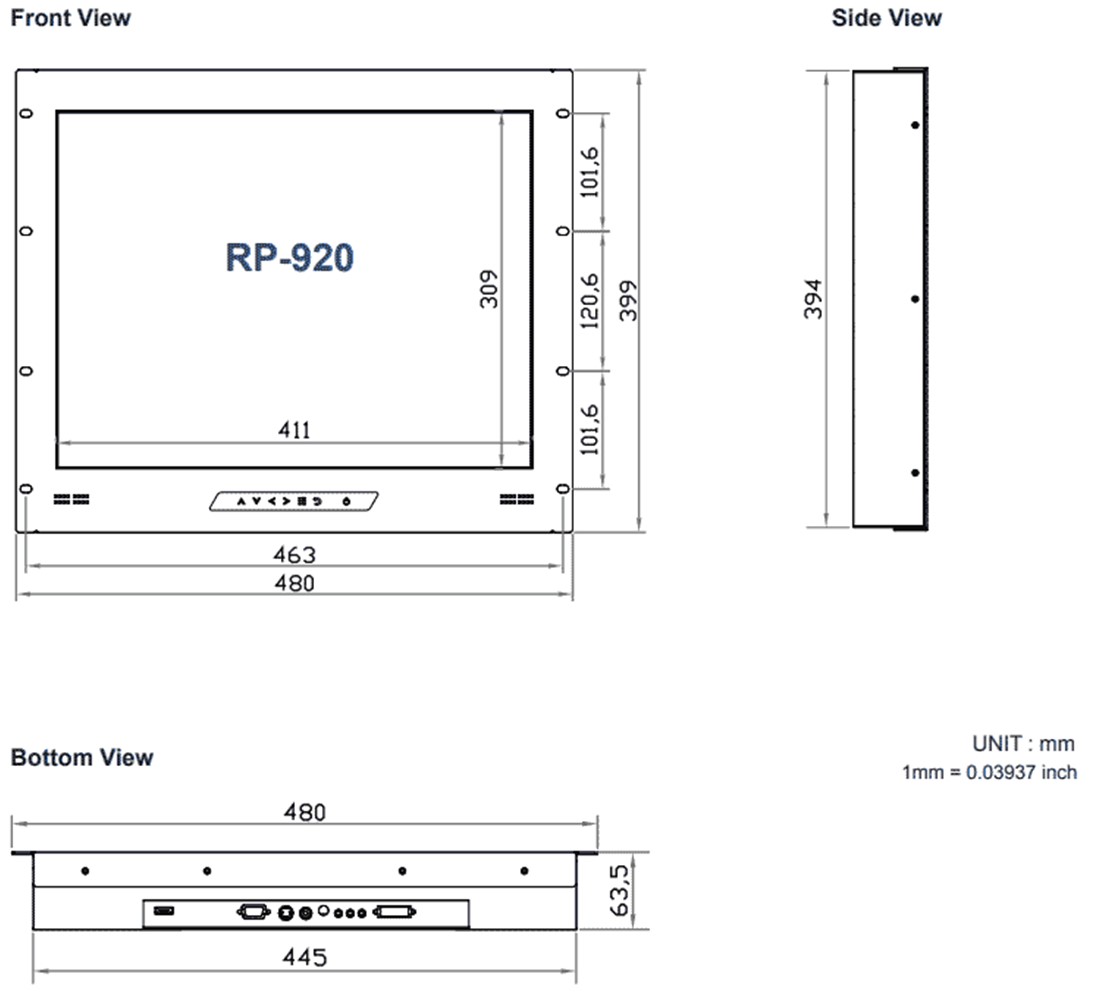

Product Dimensions (H x W x D) 15.7 x 18.9 x 2.5 in
( 399 x 480 x 64 mm )
Package Dimensions (H x W x D) 20.8 x 23 x 4.9 in
( 529 x 583 x 124 mm )
Net Weight 18.7 lb ( 8.5 kg )
Gross Weight 24.2 lb ( 11 kg )

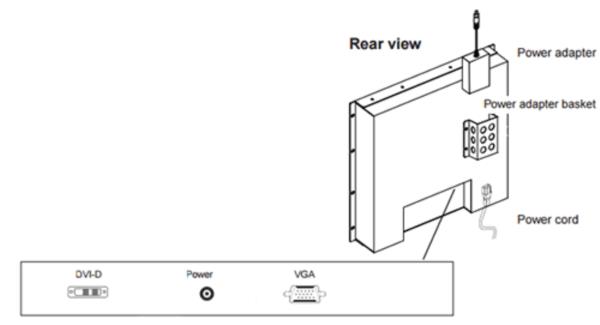

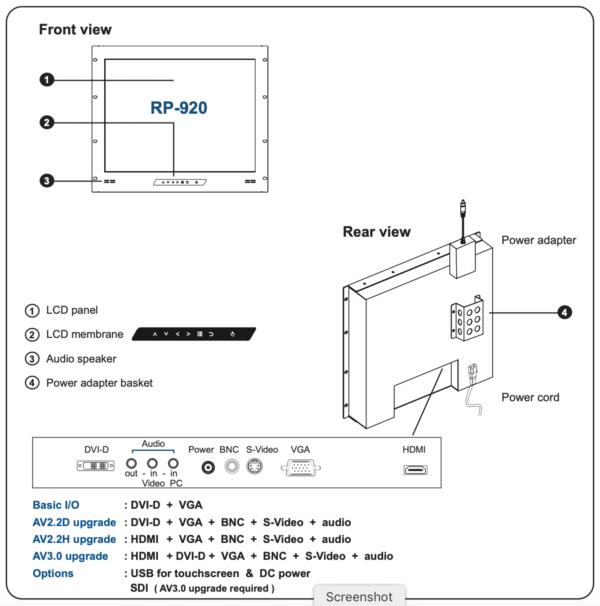

Console Ports
Video Input VGA + HDMI 1.4
Video Option DVI-D single link
S-Video ( 4-pin ) - NTSC & PAL
Composite ( BNC ) - NTSC & PAL
LCD Screen
LCD panel size ( diagonal ) 20.1"
Backlight type CCFL
Native resolution 1600 x 1200
Brightness (cd/m2) 300
Colors 16.7 M
Contrast Ratio (typ) 800 : 1
Viewing angle ( L/R/U/D ) 89/89/89/89
Viewing angle (H x V) 178° x 178°
Response time ( ms ) 16
Dot pitch ( mm ) 0.255
Display area ( mm ) 408H x 306V
Surface treatment Anti-glare Hard-coating
Surface hardness 3H
MTBF (hrs) 45,000
Audio Option
Speaker 2x 2W (Dual Stereo)
Input Connector 3.5mm stereo jack
Input Impedance / Power level 30? / 750mV
Output Connector 3.5mm stereo jack
Output Impedance / Power level 30? / 2.8V
Power
Power Input Auto-sensing 100 to 240VAC, 50 / 60Hz
Power Consumption
Screen on Max. 48W
Power saving mode Max. 4W
Power button on Max. 1W
Environmental
Operating Temperature 0 to 55°C Degree
Storage Temperature -20 to 60°C Degree
Operating Humidity 20~90%, non-condensing
Relative Humidity 5~90%, non-condensing
Operating Altitude 16,000 ft
Non-operating Altitude 40,000 ft
Shock 10G acceleration (11ms duration)
Vibration 10~300Hz 0.5G RMS random vibration
Regulatory Compliance
EMC FCC & CE certified
Safety CE / LVD certified
Environment RoHS2 & REACH compliant

The RP-920 series is also known as the RP920.
