RP-F117-DV4.4

Austin Hughes

The RP-F117-DV4.4 Cyberview 1U 17" Widescreen 1080p High Resolution 1920 x 1080 Rackmount LCD Monitor with HDMI/DVI/VGA, no Keyboard

RP-F117 Austin Hughes Cyberview 1U 17" WideScreen 1080p High Resolution 1920x1080 Rackmount LCD with HDMI/DVi/VGA input ports also referred to as 1U LCD is a flip up Monitor in 1U Drawer.

This rack lcd unit saves space for your rack environment. These LCDs support simple plug and play functionality and do not require any additional software.

This TFT Rackmount LCD monitor allows for viewing and monitoring of data even through closed glass doors. 1U rack mount LCD monitor units come with an industrial grade LCD panel.



  • 1U Rackmount 17" Widescreen LCD
  • 1920 x 1080 native High resolution
  • Support full HD with 1080p resolution
  • Green LED-backlit panel technology
  • 1.07 Billion true colors, 10-bit
  • Built-in HDMI Connector
  • 17" Touchscreen : Capacitive, Resistive (Optional)
  • 48V, 24V or 12VDC input (Optional)
  • MIL-Type or lockable connector (Optional)



LCD Panel
Size (diagonal)
 17.3" TFT
Max resolution
 1920 x 1080
Brightness (cd/m2)
 300
Backlight
 LED

Colors
 1.07 Billion, 10-bit
Contrast ratio (typ)
 600 : 1
Viewing Angle (H/V)
 178° x 178°
Active area (mm)
 382 x 215
MTBF (hrs)
 20,000
Signal input
 HDMI/DVI/VGA
Environmental
Operating
 0 to 50°C Degree
Storage
 -5 to 60°C Degree
Relative humidity
 5~90%, non-condensing

Shock
 10G Acceleration ( 11 ms duration )
Vibration
 5~500Hz 1G RMS random vibration
Casing Color
 Black front panel ( RAL 9005 )
Dark grey rear case ( RAL 7037 )
Power
Input
 Auto-sensing 100 to 240VAC, 50 / 60Hz
Consumption
 Max. 48 Watt, Standby 5 Watt

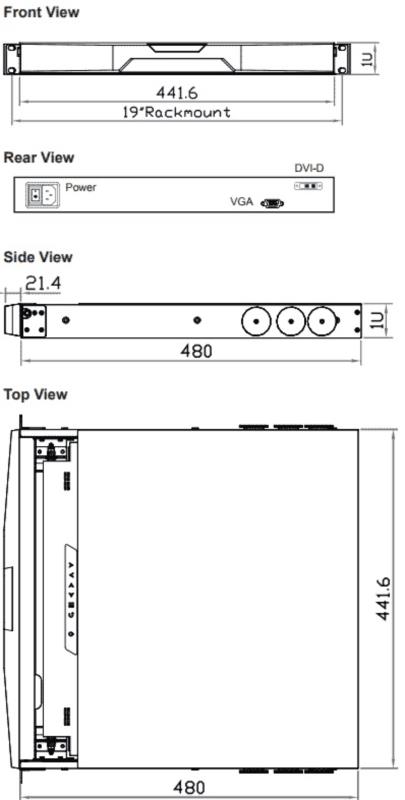

Dimensions

Product
 17.4 x 18.9 x 1.73 inches
Packing
  27 x 23.2 x 4.7 inches
Weight

Net
 26 lbs
Certifications
 CE, FCC, RoHS
