GD-A1110170

Guntermann and Drunck

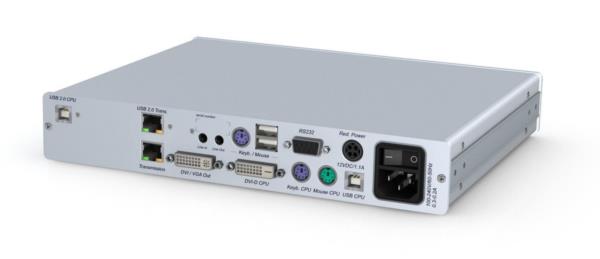

DVI-Vision - transmission of DVI signals via CAT or fibre optics

The system consists of a computer module (transmitter) and a user module (receiver) and enables you to operate a computer on a local or remote console.

DVI-Vision uses CAT-x cables or fibre optics to transmit signals up to 10,000 m. The devices use DVI video and are available as variants displaying 1, 2 or 4 video channels. It is also possible to transmit transparent USB 2.0, RS232 and audio signals.

With its network port, the web interface and monitoring functions, the DVI-Vision system offers important features for mission-critical applications.

Screen-Freeze Function

If the console module loses the video signal due to a broken connection or a problem with the computer's graphics card, the Screen-Freeze function "freezes" the last displayed image of the monitor. This state is highlighted by a red semi-transparent frame. The function is automatically cancelled when the display receives an active video signal.


?

Monitoring

With the Monitoring function, you can auto-output device status messages to Syslog servers or SNMP. The web interface lets you monitor the device manually. The Monitoring function of the DVI-Vision queries the following values:

  • Proactive monitoring of device states
  • Event reporting function (Syslog or SNMP traps)
  • Status power supply unit (on/off)
  • Status temperature threshold device (in/over limit)
  • Status connection cables (ok/nok)
  • Status computer (on/off)
  • Status image signal graphics card computer (available/not available)
  • Status network
  • Fan monitoring
  • Status SFP modules (in -Fiber variants)
  • Status interfaces (CPU and CON modules)
  • Freeze status (all channels)
  • Type of display (local and remote)



DVI-Vision-CAT Single-Channel



A1120198 DVI-Vision-CAT-AR-CON        Receiver 1 x single-link DVI & VGA PS/2 USB Audio RS232 Desktop
A1120320 DVI-Vision-CAT-AR-CON-2    Receiver 1 x single-link DVI und VGA PS/2 USB Audio RS232 Desktop
A1110167 DVI-Vision-CAT-AR-CPU         Transmitter 1 x single-link DVI PS/2 USB Audio RS232 Desktop
A1110227 DVI-Vision-CAT-AR-CPU-UC   Transmitter 1 x single-link DVI & VGA PS/2 USB Audio RS232 Desktop
A1110170 DVI-Vision-CAT-ARU-CPU       Transmitter 1 x single-link DVI PS/2 USB USB 2.0 Audio RS232 Desktop
A1120202 DVI-Vision-CAT-ARU2-CON    Receiver 1 x single-link DVI & VGA PS/2 USB USB 2.0 Audio RS232 Desktop
A1120201 DVI-Vision-CAT-ARU-CON      Receiver 1 x  single-link DVI & VGA PS/2 USB USB 2.0 Audio RS232 Desktop
A1120321 DVI-Vision-CAT-ARU-CON-2  Transmitter 1 x single-link DVI & VGA PS/2 USB USB 2.0 Audio RS232 Desktop
A1110228 DVI-Vision-CAT-ARU-CPU-UC Receiver 1 x single-link DVI & VGA PS/2 USB USB 2.0 Audio RS232 Desktop



Glossary
Abbreviation Description
A Audio
R RS232
U integrated USB 2.0 transmission without an additional transmission cable - Transfer speed up to 16 Mbit/s
U2 USB 2.0 transmission with an additional cable - Transfer speed up to 480 Mbit/s
MC2 Multichannel variant with two video inputs per channel
MC3 Multichannel variant with three video inputs per channel
MC4 Multichannel variant with four video inputs per channel
(S) Single mode
(S+) Single mode+
(M) Multi mode
