Specifications

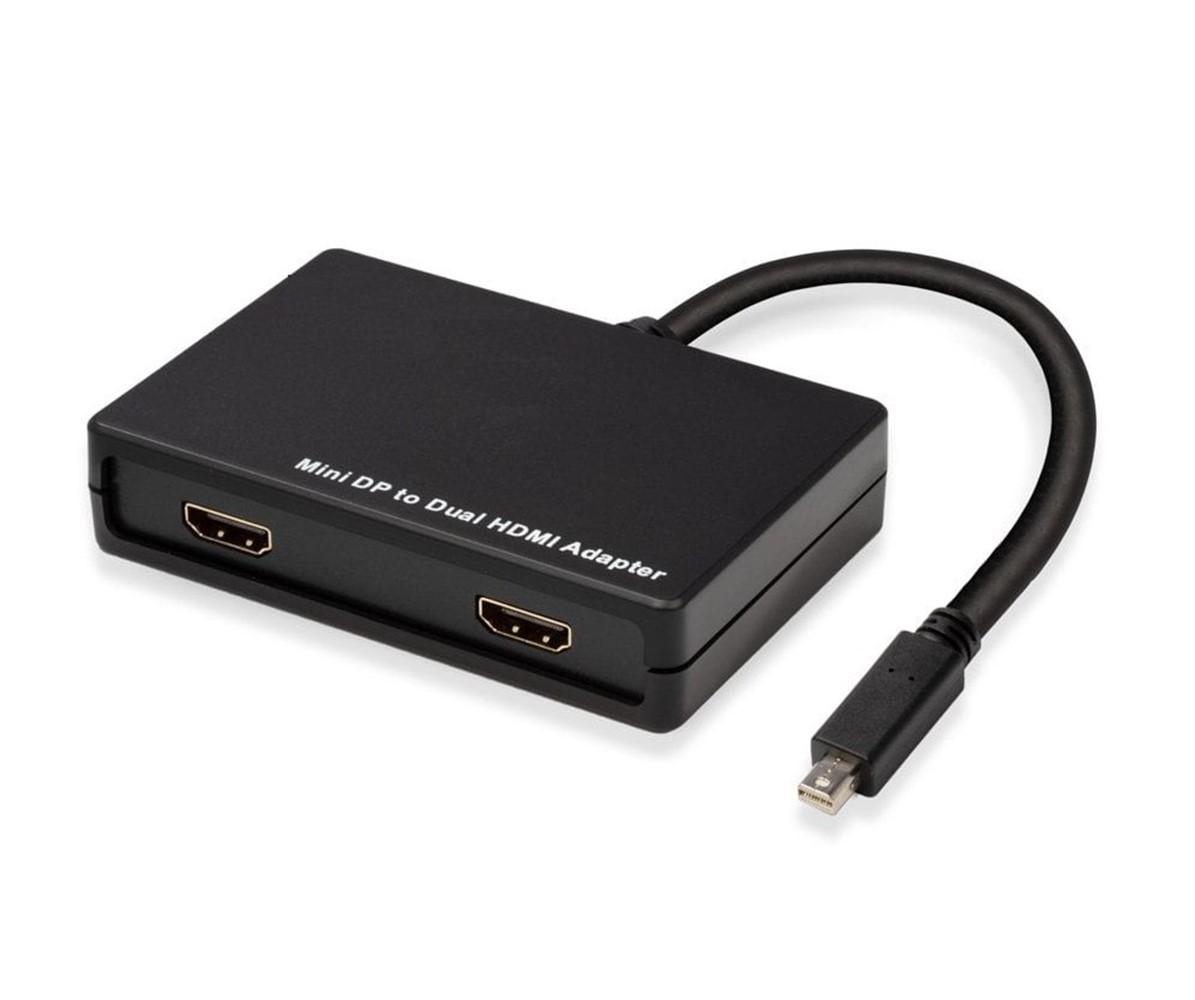

• AV Interface: Mini DisplayPort to 2 x HDMI
• Interface Standard: DisplayPort 1.2 / HDMI 1.4a
• Supported Bandwidth: 5.4Gbps
• Maximum Input Resolution: 3840x2160@60Hz
• Maximum Output Resolution:
  3840x2160@30Hz each monitor
  7680x2160 (expanded mode)
  3840x2160@60Hz (if only one screen is connected)
• Chipset: STDP4320
• HDCP Support: HDCP 1.3
• Supported Audio: -
• Separate Audio Ports: -
• Special Features: Supports DP++ and MST modes

Connectors

• Input: Mini DisplayPort Male
• Output: 2 x HDMI Type A Female

Physical Properties

• Dimensions (approx.) WxDxH: 100x67x12mm (3.94x2.64x0.47in)/ housing
• Cable Length: 350mm (13.78in)
• Housing Material: ABS/PVC
• Jacket Material: ABS/PVC
• Jacket Diameter: 3.75mm (0.15in)
• Minimum Bend Radius: 7.3mm (0.29in)
• Net Weight: 0.08kg (0.18lb)
• Operating Temperature: 0°C - 45°C (32°F - 113°F)-20°C - 70°C (-4°F - 158°F)
• Storage Temperature: -20°C - 70°C (-4°F - 158°F)
• Humidity: 50 - 90% RH (non-condensing)
• Colour: Black

Miscellaneous

• Packaging Type: Carton Box
• Packaging Dimensions: 155x120x60mm (6.1x4.72x2.36in)
• Gross Weight: 0.15kg (0.33lb)
• Warranty (Years): 2
• Certificated: CE, FCC, RoHS & REACH
