Matrox ConvertIP DSS is a compact, standalone ST2110 & IPMX transmitter/receiver Dual-channel SFP SDI-to-IP device.

Description
Specification
Downloads
Videos

Matrox ConvertIP DSS is a compact, standalone ST2110 & IPMX transmitter/receiver Dual-channel SFP SDI-to-IP device.

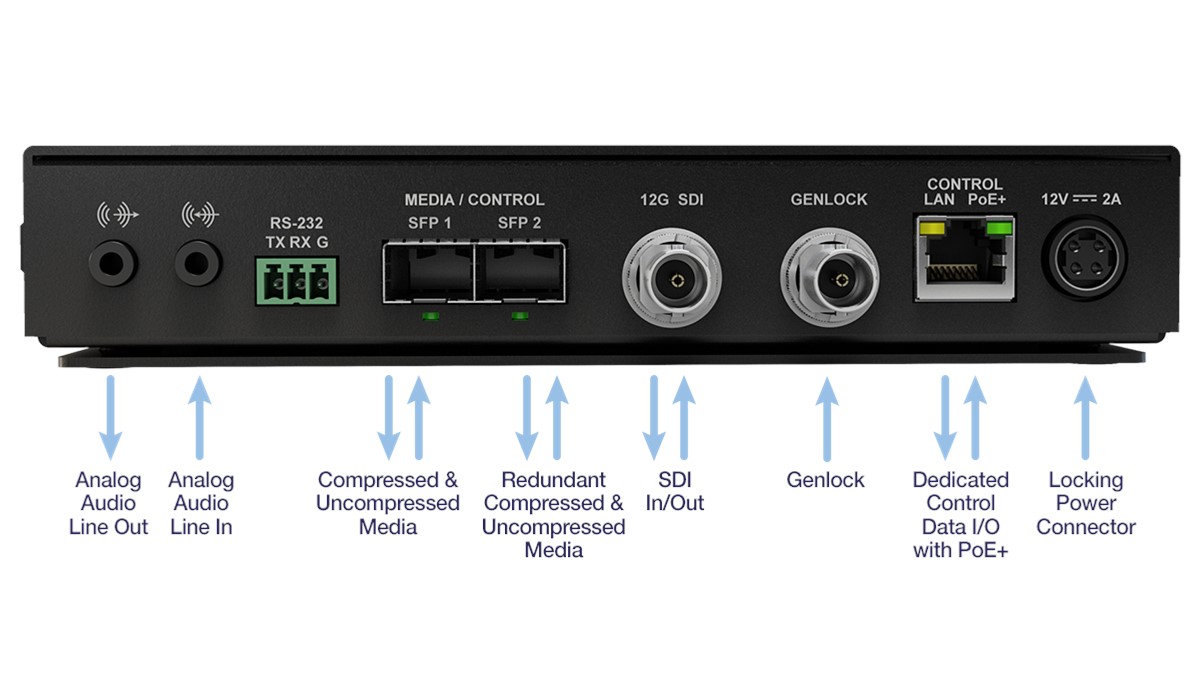

Featuring 12G-SDI, genlock, one RJ45, and three SFP28 ports on a singe device, ConvertIP DSS is designed for compressed or uncompressed workflows up to 25G and is optimal for an ultra-low latency experience.

Model: CIP-DSS

SDI I/O
Multi-network support
2x SFP28 (10G & 25G network support)
1x RJ45 (1G network support)
Fanless design for quiet cooling

SMPTE ST 2110 is a standard from the Society of Motion Picture and Television Engineers (SMPTE) that describes how to send digital video over an IP network. ST 2110 permits granular transport of individual separate essence streams supporting video, audio, and metadata.

IPMX standard is designed to transport and control of compressed and uncompressed video and audio, including 4Kp60 with 4:4:4 color, over standard 1 Gigabit Ethernet networks. IPMX (Internet Protocol Media Experience) is a proposed set of open standards and specifications for AV over IP which address the ProAV industry’s need for a common set of ubiquitous standards and protocols in the transition to IP infrastructures.

Converter Signal Types - Audio & Video
Converter Type - Up/Down Converter
Rackmountable - Yes
ROHS Compliant - Yes
Warranty - Yes
Warranty (Length/Type): 3 Years
Certifications: EU, REACH, CE (EU), FCC (USA), ICES-003 (Canada), KC (Korea), RCM (Aus/NZ)

Operating Temperature (Maximum): 45 C
Operating Temperature (Minimum): 0 C
Current Draw: 0.50 Amps
AC Voltage (Minimum): 100 Volts
AC Voltage (Maximum): 240 Volts
Rack Units (Height): 1
Active Power: 18 Watt
Depth: 181.10 mm
Height: 36.07 mm
Width: 191.26 mm
Product Weight: 0.77 kg
Colour: Black
Form Factor: Standalone appliance, Rack-mountable: 1U, 1/2 rack (horizontal)

Video Input: Tx mode: 1.5G, 3G, and 12G SDI, Rx Mode: No input
Video Input Resolutions: HD and 4K broadcast resolutions
Video Outputs: Tx mode: No output, Rx mode: 1.5G, 3G, and 12G SDI
Video Output Resolutions: HD and 4K broadcast resolutions
Genlock: Bi-Level and Tri-Level input support
VANC ancillary data processing: Yes
Audio Input/Output: Up to 16 channels of audio embedded in SDI output signal, Unbalanced analog stereo input via 1/8” (3.5mm) jack, Line Level
Network Connector: 2x SFP28 cages for ST 2110 media and In-band control on LAN 1 and LAN 2, 10 GbE IEEE 802.3ae (10GBASE-SR/LR), 25 GbE IEEE 802.3by (25GBASE-SR/CR/CR-S), 25 GbE IEEE 802.3cc (25GBASE-LR), LAN2 for redundancy mode only, Dedicated RJ-45 management network interface for control (1/2.5 GbE)
RS-232: Yes
Control and management: Web browser-based UI, standalone utility
Maximum Video Resolutions: 4096 x 2160 60p, All standard desktop GPU resolutions supported
Color Space: YUV 4:2:0 10-bit and 8-bit, YUV 4:2:2 10-bit, RBG 4:4:4 8-bit, SDR/HDR4
Video Scaling: High Quality multi-tap 10-bit Up/Down Scaler
Video Deinterlacing: Yes
Color Space Conversion: Yes
Video: Uncompressed; HD 3 Gbps, 4K 12 Gbps, ProAV 4:4:4 8-bit codec; HD 200 Mbps, 4K 800 Mbps, Optional: JPEG-XS 4:2:2 10-bit; HD 400 Mbps, 4K 1.6 Gbps
Audio: Uncompressed PCM (~1 Mbps/ch)
Latency: Less than a 1/4 frame (<4 ms)

HDCP Support: Yes
Network Standard: RJ45 providing 1 GbE or 2.5 GbE Base-T Ethernet
IP addressing: IPv4, IPv66, DHCP (default) and static IP
Supported Protocols: SMPTE ST 2110 (-10, -20, -21, -30, -31, and -40), SMPTE ST 2059-2, SMPTE ST 2022-7
Redundancy: Yes (ST 2022-7)
Command and Control: HTTPS over TCP
Discovery, Registration and Control: NMOS discovery and control according to standards IS-04 v1.3 and IS-05 v1.1
PoE+: Yes (IEEE 802.3at Type 2)
Cooling: Fanless

Hardware included: ConvertIP DSS appliance
Optional Hardware: ConductIP NMOS-based routing solution (Part #: CDCTIP-SERV)

Accessories (sold separately):

ConvertIP power supply unit (Part #: EPS40WKIT-NA, EPS40WKIT-EU, EPS40WKIT-UK, EPS40WKIT-AU, EPS40W-10PK8 ),
Rackmount kit (Part #: RMK-19TR-A),
Angled bracket kit (Part #: RMK-6BRKT-A),
Secure cable solution for HDMI (Part #: SK-SLND-4),
NRG redundant power supply unit (Part #: NRG-5-1DB or NRG-5-2DB)
Software: Matrox ConvertIP Command Center (Web UI), Matrox ConvertIP Manager (Microsoft® Windows® 10)
Optional Software: JPEG-XS codec license

Operating Conditions:
Altitude: 650 hPa (3,580 m) to 1,013 hPa (0 m),
Humidity: 20% to 80% non-condensing
Storage conditions:
Temperature: -40 to 70 degrees Celsius,
Altitude: 192 hPa (12,000 m) to 1,020 hPa (-50 m),
Humidity: 5% to 95% non-condensing
