AnywhereUSB 8 Plus, 8 port USB over IP Remote USB 3.1 Hub with 8 type A USB connectors, includes external power supply for 100-240VAC Power, 10/100/1000/10G Ethenet, support for optional SFP+ module, and optional cellular CORE Module.
Connect USB peripheral devices anywhere on a Local Area Network (LAN) without a locally-attached host computer.

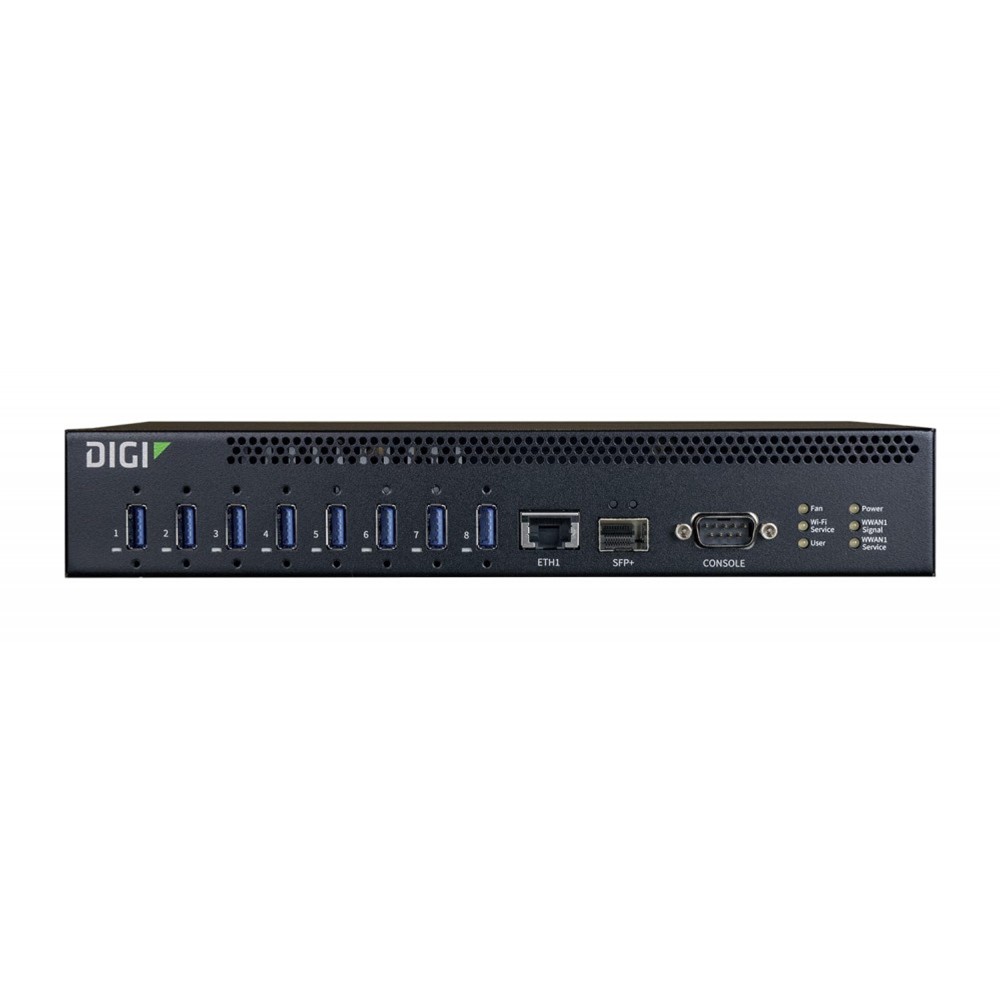

Digi AnywhereUSB 8 Plus
• Base Hardware: (1) RJ45 10/100/1 Gig/10 Gig Ethernet, (1) SFP+ Port, (8) USB 3.1 Gen 1 (Type A) Ports
• Mounting Accessory: Rack mount extension kit for use in 19” 1U rack (included)
• Wi-Fi: Not Included
• Remote Management: Digi Remote Manager
• Power Connector: Phoenix Connector
• Accessories: Power Supply Included
USB Connectivity Anywhere
Rapidly deploy, configure, secure and manage devices at any distance
In the IoT world, the technological evolution is accelerating and expanding, which drives the need to continuously update deployed devices with new features and firmware. As a network engineer, you need a consistent, secure and cost-effective way to verify that your IoT infrastructure is configured correctly and fully operational as it continues to expand. You also need flexible methods to test, provision, confirm and resolve any connectivity issues related to scaled deployments of IoT devices. Digi AnywhereUSB® Plus lets you readily manage a large volume of USB devices with minimal effort.
Increase Security Posture and Agility
As a network of USB IoT devices expands, the risk of cyber attacks increases. Network engineers need to take proactive measures to increase the security posture of their network. AnywhereUSB Plus coupled with Digi Remote Manager® protects your peripheral devices and gives you the security agility needed to keep your networks safe.
ANYWHEREUSB® 8 PLUS SPECIFICATIONS
CELLULAR
MODULE SUPPORT (1) Digi CORE® modem compliant socket
SOFTWARE AND MANAGEMENT
REMOTE MANAGEMENT Digi Remote Manager® (cloud based)
LOCAL MANAGEMENT WebUI (HTTP/HTTPS); CLI (Console, SSH)
OPERATING SYSTEMS Windows® 7, 8.1 and 10; Windows Server® 2012 R2, 2016 and 2019
PROTOCOLS Supports multi-host connectivity for each USB port or group independently
MEMORY 2 GB RAM, 4 GB flash (eMMC)
NETWORK
ETHERNET (1) RJ-45; 10M/100M/1G/10G
SFP+ (1) SFP+ socket
CONNECTORS
CONSOLE (1) DB09M; RS-232 DTE
USB (8) USB 3.1 Gen 1 Type A
USB PORT POWER 1 A per port (simultaneous)
PHYSICAL
DIMENSIONS (L X W X H) 260mm x 160 mm x 44.45 mm
WEIGHT 1.58 kg
STATUS LEDS (2) Ethernet, (2) SFP+ 8 (x1 )USB, power, fan, user, (3) future Wi-Fi/WWAN
POWER REQUIREMENTS
POWER INPUT 12 VDC, 12 A max
POWER CONSUMPTION 98.5 watts max
ENVIRONMENTAL
OPERATING TEMPERATURE 0° C to 55° C (32° F to 131° F)
RELATIVE HUMIDITY 5% to 95% (non-condensing)
APPROVALS
SAFETY UL/EN60950, UL/EN62368 and CSA 22.2
EMISSIONS/IMMUNITY CE, FCC Part 15 Class B, AS/NZS CISPR 22, EN55024, EN55032
WARRANTY
PRODUCT WARRANTY 5-year
