SB-8811

OEM

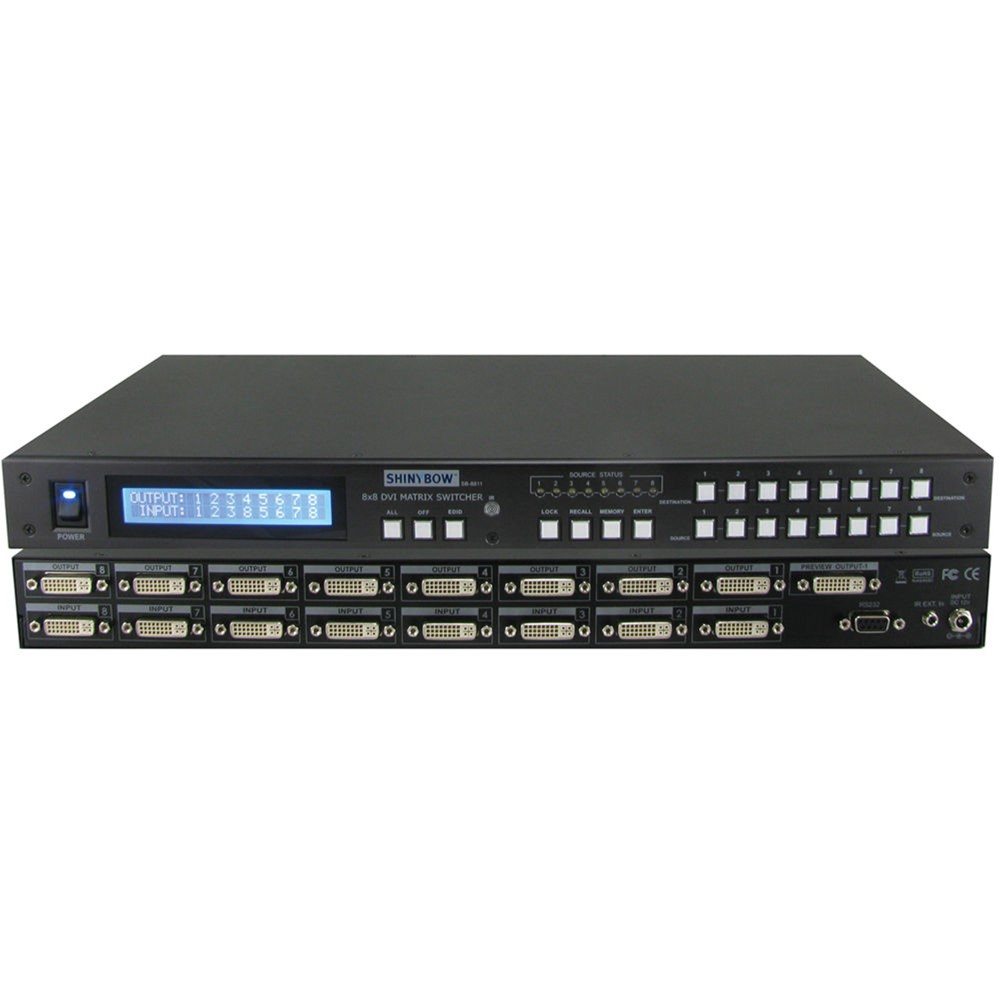

The SB-8811 is high-performance 8x8 matrix routing switcher for DVI (Digital Visual Interface) signals. This switcher supports data rates up to 2.25 Gbps, enabling 1920x1200 DVI formats and UXGA / WUXGA / DVI resolution to any HD display.

The SB-8811 is high-performance 8x8 matrix routing switcher for DVI (Digital Visual Interface) signals. This switcher supports data rates up to 2.25 Gbps, enabling 1920x1200 DVI formats and UXGA / WUXGA / DVI resolution to any HD display. High Definition Digital signals can be selected and distributed to any 8 outputs simultaneously.

The Switcher is certified as being fully DVI and HDCP compliant, with CE, FCC certification. Support high resolution DVI sources routed to DVI displays, monitors, projector or audio receivers. The EDID can be selected between four (4) different modes. Control is provided via Front panel push buttons, IR remote, TCP/IP (not a web-browser) or RS- 232. An RS-232 Windows GUI interface is provided for matrix routing control (Windows only).



01. (8)x DVI signal device sources matrix switched to (8)x DVI destination devices

02. DVI digital video w/embedded, DVI format and HDCP 1.3 compliant

03. Seven (7) function key control and worldwide (4) EDID modes for HD-DVI resolutions

04. Link speeds of up to 2.25 Gbps (link clock rate of 225Mb Hz), Support DVI 3D formats

05. Wide range of HD resolutions from PC XGA/UXGA/WUXGA/DVI to WUXGA 1920x1200 and HDTV/DTV resolutions 480i/480p, 576i/576p, 720p, 1080i & 1080p

06. Digital Video TMDS formats Resolution up to 1080P-60 with Deep color 36-bit

07. Various User Interface control :

• Windows based GUI control via RS-232 port

• Front Panel push button

• IR wireless remote control

• Ethernet interface series (switch control)

• Third party RS-232 controller (via simple ASCII)

08. Support world wide control functions :

ALL / OFF / RECALL / ENTER / MEMORY / EDID / LOCK

09. Support Embedded EDID modes :

• Internal modes : FSS / 1280x1024-60Hz / 1920x1200-60Hz / Auto

• External modes : Learning mode

10. Automatic scanning input sources status via LED show on front panel

11. Support ISP function to update the new F/W via RS-232 port

12. Support IR Remote and IR Extender with distance up to ~ 984 (300M) Maximum

13. Support Rack Mount 1RU High 19" Rack Mount with rack mount (1U-440L)

14. Support Power Supply 12VDC, Universal Type 50/60Hz, 100~240 VAC

Type of DVI Switcher (8)x DVI inputs To (8)x DVI Outputs Matrix Switcher
DVI Support HD 1920x1200, H36-bit Deep color, 3D (HDMI 1.4a) formats
HDCP / CEC Support HDCP 1.3 Compliant, CEC Compliant.
Video Bandwidth Double Data Rates:340Mhz, Total 6.75Gbps bandwidth
Digital Video Support HD resolution : 1920x1200 , HDMI 480i/p / 720p / 1080i /p
Switch Controls 1x IR Remote Controller
1x IR External port x 1 (OD 3.5mm Ear phone Jack)
1x Select & Function buttons on front panel
1x Ethernet serial interface
1x RS-232 serial interface
Ethernet Support Ethernet serial interface (AP version 2.0)
Source Status Automatically Scan Sources Inputs via (4) LED show out
Function Control Key ALL / OFF / RECALL / ENTER / MEMORY / LOCK / EDID
Infrared Frequency 38 Khz
IR External Distance ~984 feet / 300 meters maximum
DVI I/O Connector DVI-D - (24+5) pin Female DIP Type
Temperature 32°F - 100°F Operation (0°C - 38°C)
Rack Mount 19" x 9.85" x 1.75" (482mm x 250mm x 44mm)
Dimension (WxDxH) Rack Mount 1RU High 19" Rack Mount (with rack mount)
Power Supply DC12V / 5A
Universal world wide Type 50/60Hz, 100~240 VAC
Power Consumption 3880 mA Maximum
Safety Approvals CE, FCC, REACH
Weight 3.55 Kg / 7.81 lb
