RT-DKX4-UST

Raritan

The Raritan Dominion KX IV User Station (DKX4-UST) is a new optional self-contained appliance for 4K high performance IP access to servers connected to a Dominion switch.  It supports single-display, dual-display, and triple-display applications with resolutions up to 4K UHD.




The Raritan Dominion KX IV User Station (DKX4-UST) is a new optional self-contained appliance for 4K high performance IP access to servers connected to a Dominion KX IV Gateway or Dominion KX III switch in environments where a standalone PC is not wanted. DKX4-UST supports single-display, dual-display, and triple-display applications with resolutions up to 4K UHD. The Dominion KX IV-UST is perfect for command center & broadcast applications.

DKX4-UST is a new higher performance version of the DKX3-UST, supporting 4K resolutions, up to three monitors, and a larger amount of KVM sessions.

Raritan Dominion KX IV User Station

  • New Higher Performace User Station
    • Faster CPU, more memory
    • 4K Ultra HD (@30Hz) Video Performance
    • 1080p @ 60 frames-per-second & High Quality 4:4:4 Color

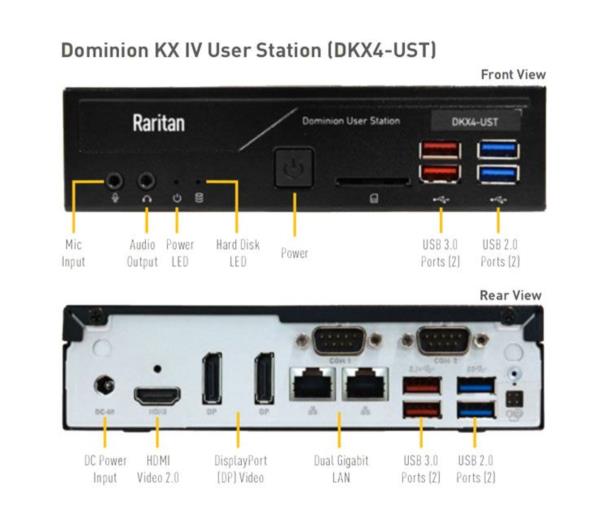

    • Supports Single-, Dual-, and Triple-Monitor sources via (1) HDMI & (2) DisplayPort video outputs

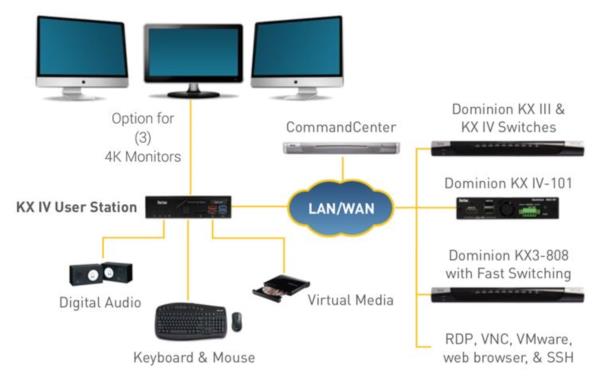

  • Over-IP access to target servers connected to DKX4-series or DKX3-series KVM Swiches
  • USB Virtual Media support including SmartCard (CAC) and storage devices
  • Redundant Network connections
  • Supports authentication and authorization via LDAP or optional FIPS 140-2 mode
  • Power control of target servers via "Virtual Power Button" or Raritan PX PDU


Description Ultra high performance user station provides access for KX3 & KX4, 4K resolution, larger numbers of IP sessions and up to 3 monitors. 3X higher performance than DKX3-UST.
Hardware Intel Core i5-8400, 4GB RAM, 128GB Solid State Disk
Video (1) HDMI 2.0 + (2) DisplayPort; Single, Dual, or Triple video output; 4K Resolution playback
Power Input: 100-240V AC, Output: 19V 4.47A DC, 90W Max
USB 4 USB 3.1 Gen1, 4 USB 3.1 Gen2 for keyboard, mouse, audio & virtual media
Audio Microphone In, Speakers Out
Certifications FCC/CE/VCCI/cUL/CB
Dimensions (L x W x H) 7.48 x 6.5 x 1.69 in (190 x 165 x 43 mm)
Weight 2.86 Lbs (1.3 Kg)
Shipping Weight 4.63 Lbs (2.1 Kg)
Mounting Desktop, VESA & Optional 1U Rack Mount bracket
Temperatures 32-104 degrees Farenheit (0-40 degrees Celsius)
Humidity Non-condensing 10-90% humidity
Vibration 1-200Hz, 1.146 Grms random vibration
Altitude Max altitude 2,000 meters.
