Raritan Dominion LX2

RT-DLX2-116

Raritan

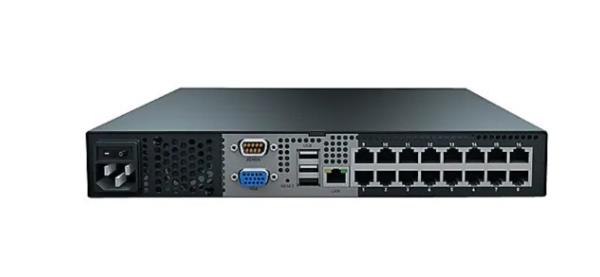

The Raritan Dominion LX DLX2-116 is a 16-port KVM-over-IP switch that gives access to one Remote user, in addition to an independent local access port, BIOS-level access, control of 16 servers, while providing virtual media with single power and single LAN.

Description
Specification
Downloads
Videos

The Raritan Dominion LX DLX2-108 is a 8-port KVM-over-IP switch that gives access to one remote user, in addition to an independent local access port, BIOS-level access, control of 16 servers, while providing virtual media with single power and single LAN. By cascading multiple Dominion LX2 switches, users can manage up to 256 computers from a single console. This product offers efficient and reliable server management with secure remote access from anywhere, server diagnostics with restore capabilities, and an economical footprint.

Note: D2CIM-VUSB or D2CIM-DVUSB required for virtual media

The New Raritan Dominion LX2 Series Features:

Local and remote access
Security and encryption features
Directory administration
Multi-language support
Modern architecture platforms with high definition (HD)
1920x1080 remote video resolution
BIOS-level access and control
Universal Virtual Media
Absolute Mouse Synchronization
RADIUS, LDAP and Active
Tiering capability for management of up to 256 computers from a single console
Multiplatform support: Windows, Macintosh, Linux, and Sun/Solaris

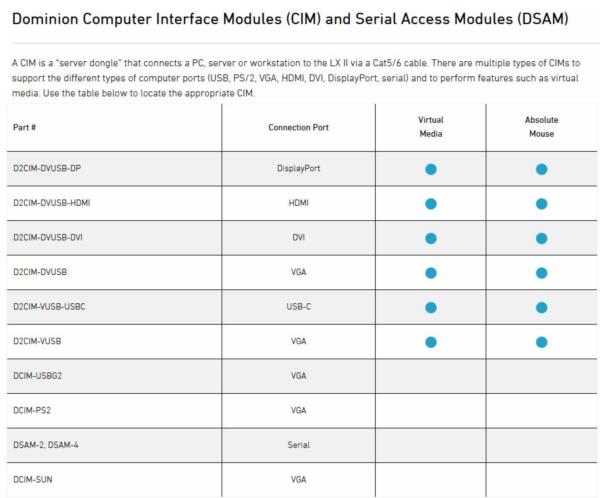

Flexible CIM options: USB, Dual USB, Universal Virtual Media/Absolute Mouse Synchronization, PS2, Sun, Serial Devices

Raritan Dominion LX DLX-116 Specifications

Mechanical
Height	1.73 in. (44mm.)
Width	10.63in. (270 mm.)
Depth	11.45in. (291mm.)
Weight	9.48 lbs. (4.3 kg.)
Form Factor	1U, rackmount brackets included
Environmental
Operating Temperature	32F to 104F (0C to 40C)
Power
Operating Voltage	Single power, 100-240V AC, 50-60 Hz, 0.5A
Remote Connection
User	1 local user and 1 remote user
Network	Single 10/100/1000 gigabit Ethernet Access (RJ45) dual-stack: IPv4 and IPv6
Modem Port	Integrated 56K V.90 (RJ11 port)
Protocols	TCP/IP; HTTP; HTTPS; UDP; RADIUS; SNMP; DHCP; PAP; CHAP
Local Access Port
Video	HD15(F) VGA
Keyboard/Mouse	Mini-DIN6(F) PS/2 and USB (F); 1 USB front; 3 USB rear
Sample Video Resolutions
PC Text Mode	640x350, 640x480, 720x400
PC Graphic Mode	640x480, 800x600, 1024x768, 1152x864, 1280x1024, 1440x900, 1680x1050,1600x1200, 1920x1080
Sun Video Mode	1024x768, 1152x864, 1152x900, 1280x1024
Warranty	Two Years with Advanced Replacement* Guardian Extended Warranty Available
CIMs and Cat5 Cables	Dominion CIMs: Available for USB, Dual USB, Universal Virtual Media/Absolute Mouse Synchronization, PS2, Sun, Serial Devices Cat5 MCUTP Cables: KVM UTP cable for PS/2, USB, Sun. lengths from 2ft. (6m) to 20 ft. (6m): Specifications: RJ45 <-> HDB-15M, mini-din 6 x 2 (PS/2), USB type A (USB/Sun)
