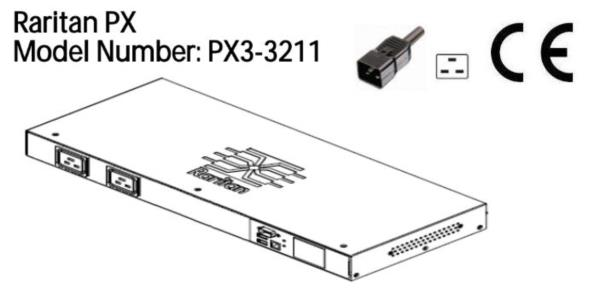

Raritan Inloine monitored rack power distribution unit (1U [horizontal], 0kVA, 2 outlets). INPUT: 230v, 16a - IEC 60320 C20 plug (2P3W); OUTPUT: 2@ C19 outlets.
Raritan PX-3000 Series
Intended to be inserted in existing power feeds where metering and environmental monitoring are desired.
The PX-3000 inline meters support all PX iPDU functionality except remote outlet-level switching.
They operate over a range of voltages and amperages. The actual voltages and amperages are determined by the data center wiring.
Single and Three-Phase Inline Power Metering
The PX-3000 Series of Inline Power Meters simplifies management of power usage and environmental conditions in the data center, while allowing you to monitor the power on dedicated circuits. There is no need to remove or re-cable IT equipment. Just wire the inline meter into existing circuits and get real-time remote power monitoring, including current (amps), voltage, power (kVA, kW) and energy consumption (kWh) to +/– 1% accuracy. Plus they're sensor ready to support rack temperature and humidity monitoring.
Power Configuration
230V, 1Φ, 0kVA, 16A
Features
Securelock
Energy Metering
Voltage (V), Current (A), Active Power (kW), Real Power (kVA), Energy (kWh), Power Factor
Metering Accuracy
ISO/IEC 62053-21 1%
Remote Outlet Switching
No
Metering per input line
Yes for all models
Metering per Branch Circuit Breaker
No
Environmental Sensor Ready
Yes
Compatible Sensors
Temperature, Humidity, Air Flow, Differential Pressure, Water Leak, and Contact Closure.
View all sensors.
Cascading
Yes, Max 16 PDUs can be daisy chained using a USB connection. Note: Firmware version 3.3.10 or above is required.
Networking
10/100/1000 BaseT Ethernet. Optional WiFi (802.11a/b/g/n).
Onboard Display
Color, matrix LCD display : Voltage, current, or active power (per line); Alarms; Configuration information (name, ratings, IP / Networking information). Auto-flip orientation.
