Cyberview Cat6 KVM Switch

KVM-UIP3202

Austin Hughes

CyberView U-IP3202 is a 32 port Cat6 KVM Switch for USB-C, DP, HDMI, DVI-D, & VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Combo KVM features 2 x consoles – 1 x local, 1 x network IP.

Description
Specification
Downloads
Videos

The CyberView U-IP3202 is a 32 port Cat6 KVM Switch for USB-C, DP, HDMI, DVI-D, & VGA enabled servers with resolution support up to 1080p & 1920 x 1200. This Combo KVM features 2 x consoles – 1 x local, 1 x network IP.

Benefits

Cat6 KVM with 32 ports in 1U
Access sources from 2 consoles (1 Local, 1 IP)

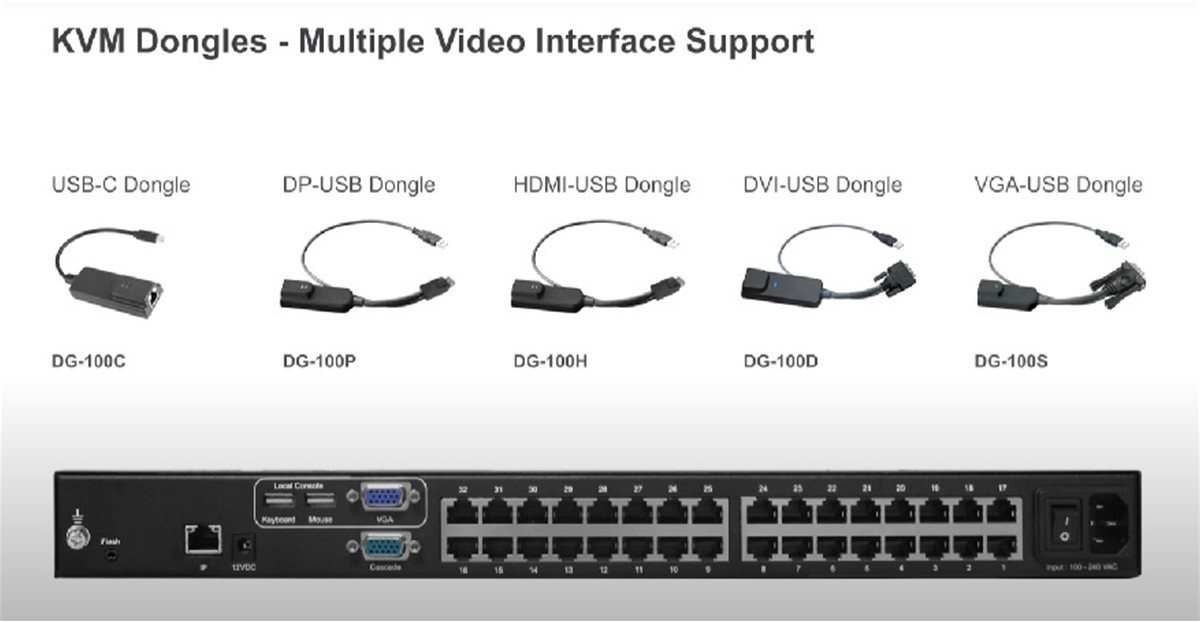

Cat6 dongle available for USB-C, DP, HDMI, DVI-D or VGA video input
High definition video support with resolutions up to 1920 x 1080
Multi-platform for PC, server, Blade Server & SUN / MAC
Port switching via OSD, front button & keyboard hotkeys
Multi lingual OSD menu Hot pluggable, no software or drivers required
Cascade levels up to 8 KVM switches

Options

DC power : 12V / 24V / 48V / 125V / 250V
Dual power with failover

KVM Port
Number of ports	32
Connector	RJ-45
Connectivity	DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable
Local Console	Nil for LCD console drawer version
IP Remote Console
Connector	RJ45 Ethernet
Resolution	Up to 1600x1200
User Management	15-user login, 1 x active user
Browser	IE, Firefox, Safari, Netscape
Expansion	Up to 256 servers by 8-level cascade
Compatibility	Mix PCs, SUN and Mac G3 / G4 Mac / iMac
KVM Power
Input	Auto sensing 100 to 240VAC, 50 / 60 Hz OR AC / DC power adapter 12V@3.3A (optional)
Consumption	Max. 24 Watt, Standby 5 Watt
Regulatory Approvals	FCC, CE
