KVM-U-802

Austin Hughes

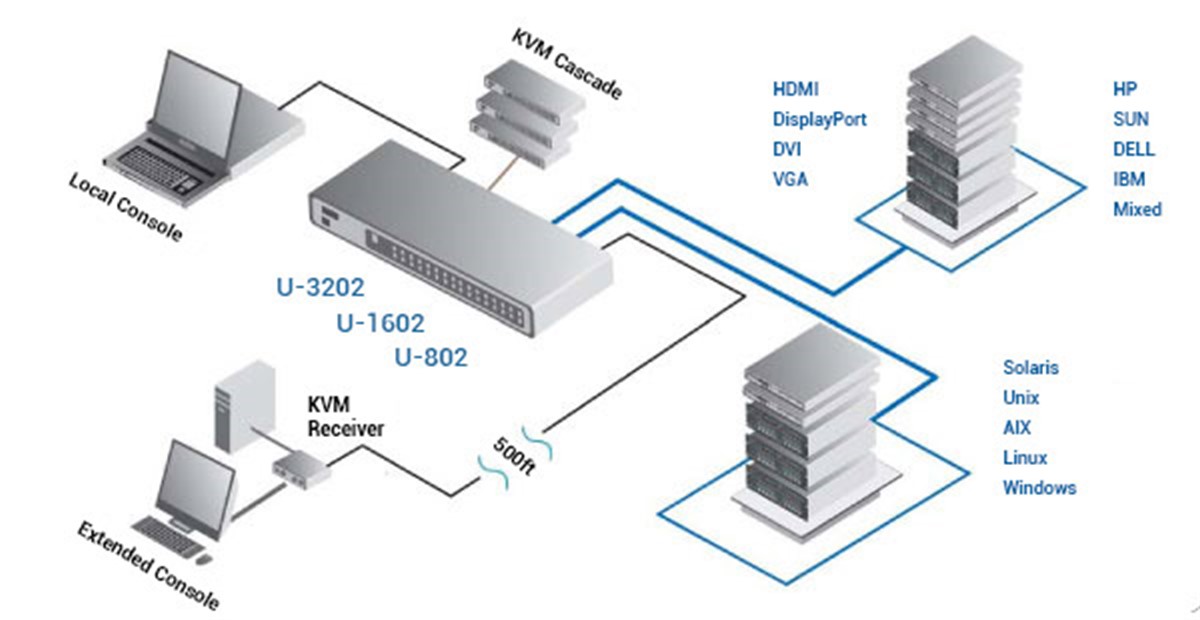

The U-802 is a 8-Port Combo Cat6 KVM Switch. This combo KVM switch features 2 consoles, 1 x local and 1 x remote.

The U-802 is a 8-Port Combo Cat6 KVM Switch. This combo KVM switch features 2 consoles, 1 x local and 1 x remote.

8-Port Combo Cat6 2-console KVM Benefits

  • Combo Cat6 KVM with 8 ports in 1U
  • Up to 131 feet (40 m) between your servers & KVM ports
  • Remote access up to 492 feet (150 m)
  • Cascade switches up to 8 levels & Mix switches between Cat6 & Combo DB-15 KVM
  • Support HDMI, DisplayPort, DVI, VGA-USB & VGA-PS/2 server interface
  • Mix PS/2, USB & SUN with Multi-Platform switch capability

Switch Features & Options

  • Multi lingual on screen display menu
  • Advanced user profiles and configurable OSD hot key combinations
  • Dual power with failover

U-802 Specifications

KVM Port
Number of ports 8
Connector RJ-45
Connectivity DVI-D / VGA connector dongle up to 40 meters (132 feet) via Cat6 / Cat5 cable
Local Console
Monitor Port 1 x DB-15 VGA (Up to 1600 x 1200)
Keyboard/Mouse 2 x USB type A connector for keyboard & mouse
Resolution Support 4:3 - max. 1600 x 1200
16:10 - max. 1440 x 900
Remote Console
Number Of Remote Ports 1
Monitor Port 1 x DB 15-pin, VGA (Up to 1600 x 1200)
Keyboard/Mouse Port 2 x USB type connector for keyboard & mouse
Remote I/O J45 via Cat5 / Cat5e / Cat6 cable up to 150m
Expansion Up to 256 servers by 8-level cascade
Compatibility
Multi-platform Mix PCs, SUN and Mac G3 / G4 Mac / iMac
Support Windows 7 / Vista / 2003 / XP, Linux, Unix
Power
Input Auto sensing 100 to 240VAC, 50 / 60 Hz
Consumption Max. 48 Watt, Standby 5 Watt
Regulatory
Safety UL, FCC & CE certified
Enviroment RoHS2 & REACH compliant
Mechanical
Height 1.73 in. (4.4 cm.)
Width 17.4 in. (44.3 cm.)
Depth 6.7 in. (17.1 cm.)
Weight 6.5 lbs. (3.0 kg.)
Package Dimensions (HxWxD) 19.7 x 15.7 x 3.5 inch
(500 x 400 x 90 mm)
Package Weight 11.0 lbs. (5.0 kg.)
Environmental
Operating Temperature 0 to 50°C Degree
Storage Temperature -5 to 60°C Degree
Relative Humidity 90%, non-condensing
Shock 50G acceleration (11ms, half sine wave)
Vibration 8~100Hz / 0.98G (11ms / cycle)

U-802 KVM Hot Key Sequences

Function Hot Key Sequence
Calling OSD Menu [Scr Lock] [Scr Lock] [Space Bar]
Right Mouse + [Esc]
Previous Port [Scr Lock] [Scr Lock] [Up]
Next Port [Scr Lock] [Scr Lock] [Down]
Previous/Next Bank [Scr Lock] [Scr Lock] + [PgUp/PgDn]
Switch to Specific Port [Scr Lock] [Scr Lock] + Bank # + Port #
Buzzer On/Off [Scr Lock] [Scr Lock] [B]
Logout (Password Security Must Be On) [Scr Lock] [Scr Lock] [P]
Advanced HotKeys (For Supervisor Login Only)
AutoScan Mode [Scr Lock] [Scr Lock] [S]
Reset Factory Defualts [Scr Lock] [Scr Lock] [R]
Disable/Enable Password Security [Scr Lock] [Scr Lock] [U]
Enable/Disable Screen Saving [Scr Lock] [Scr Lock] [L]
Remote Console HotKeys
Toggle Remote/Local Port [Scr Lock] [Scr Lock] [C]
Buzzer On/Off [Scr Lock] [Scr Lock] [Q]
AutoScan Mode [Scr Lock] [Scr Lock] [S]
Auto Adjust Video Signal [Scr Lock] [Scr Lock] [A]
